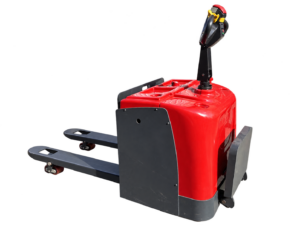

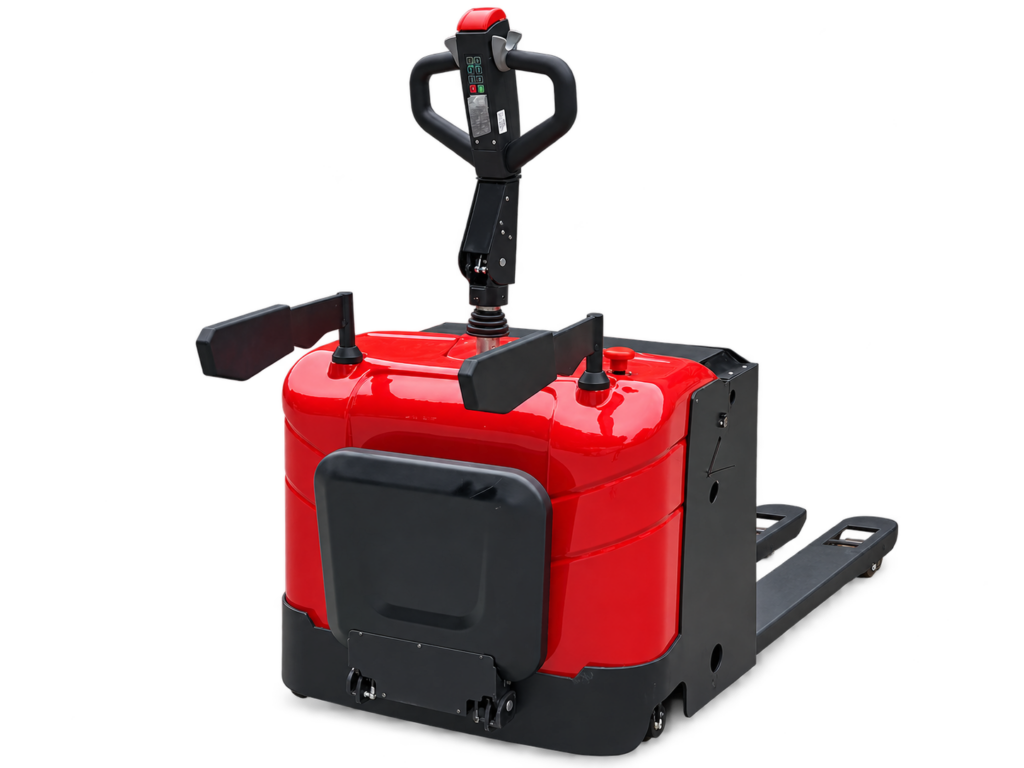

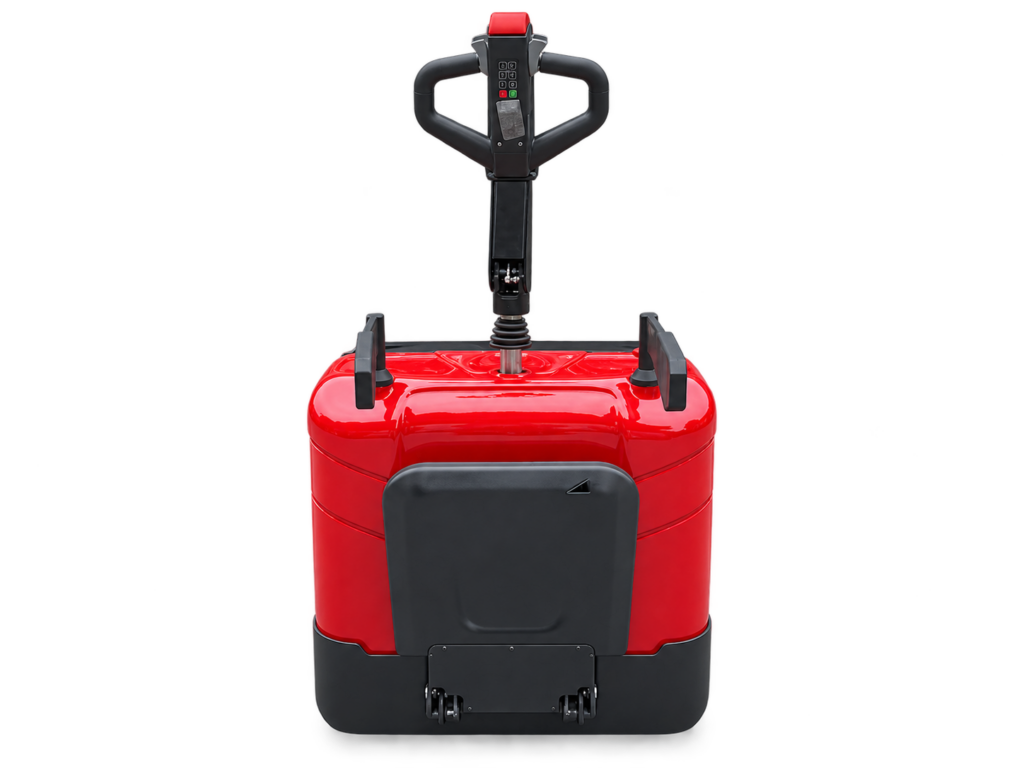

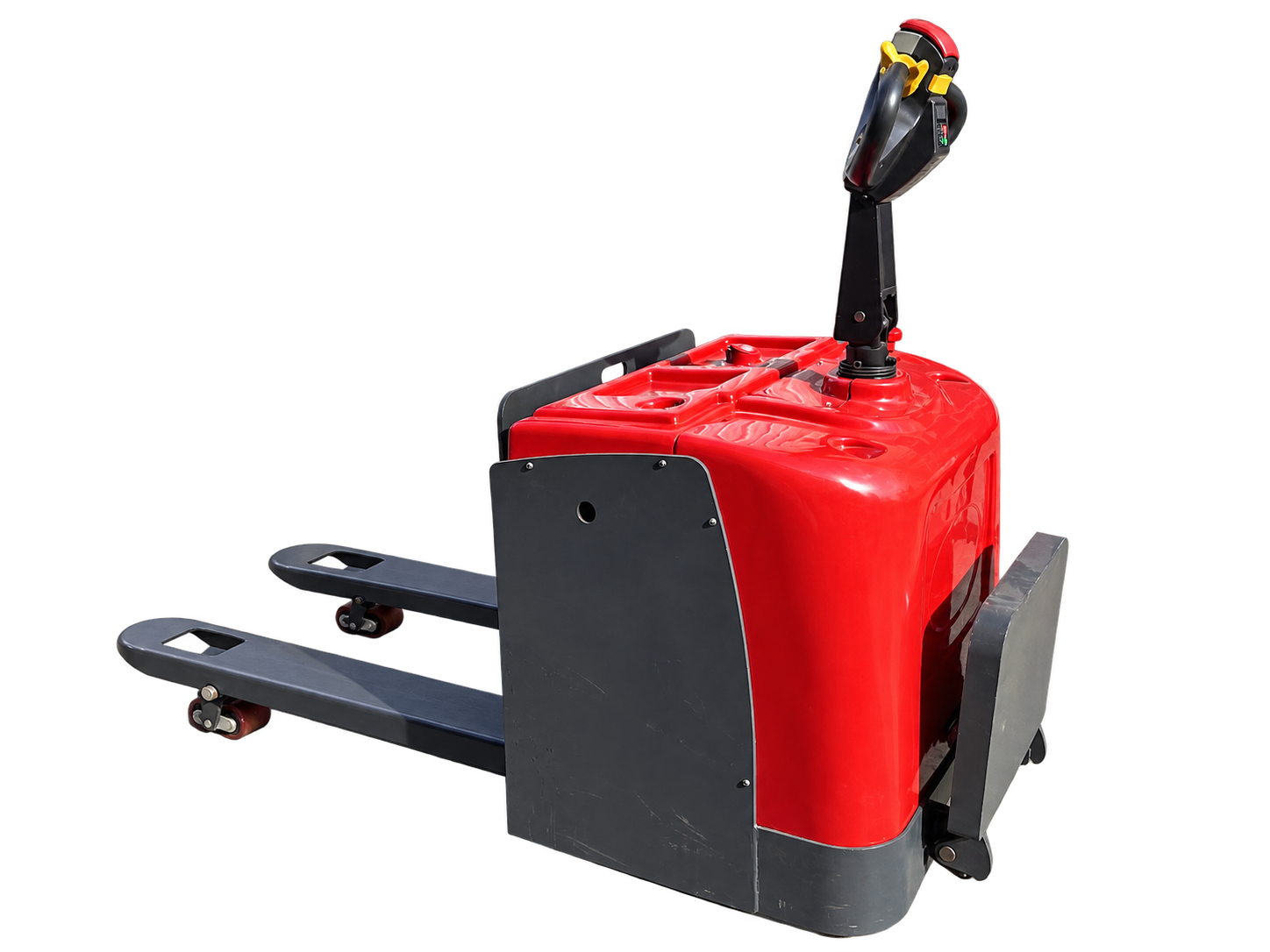

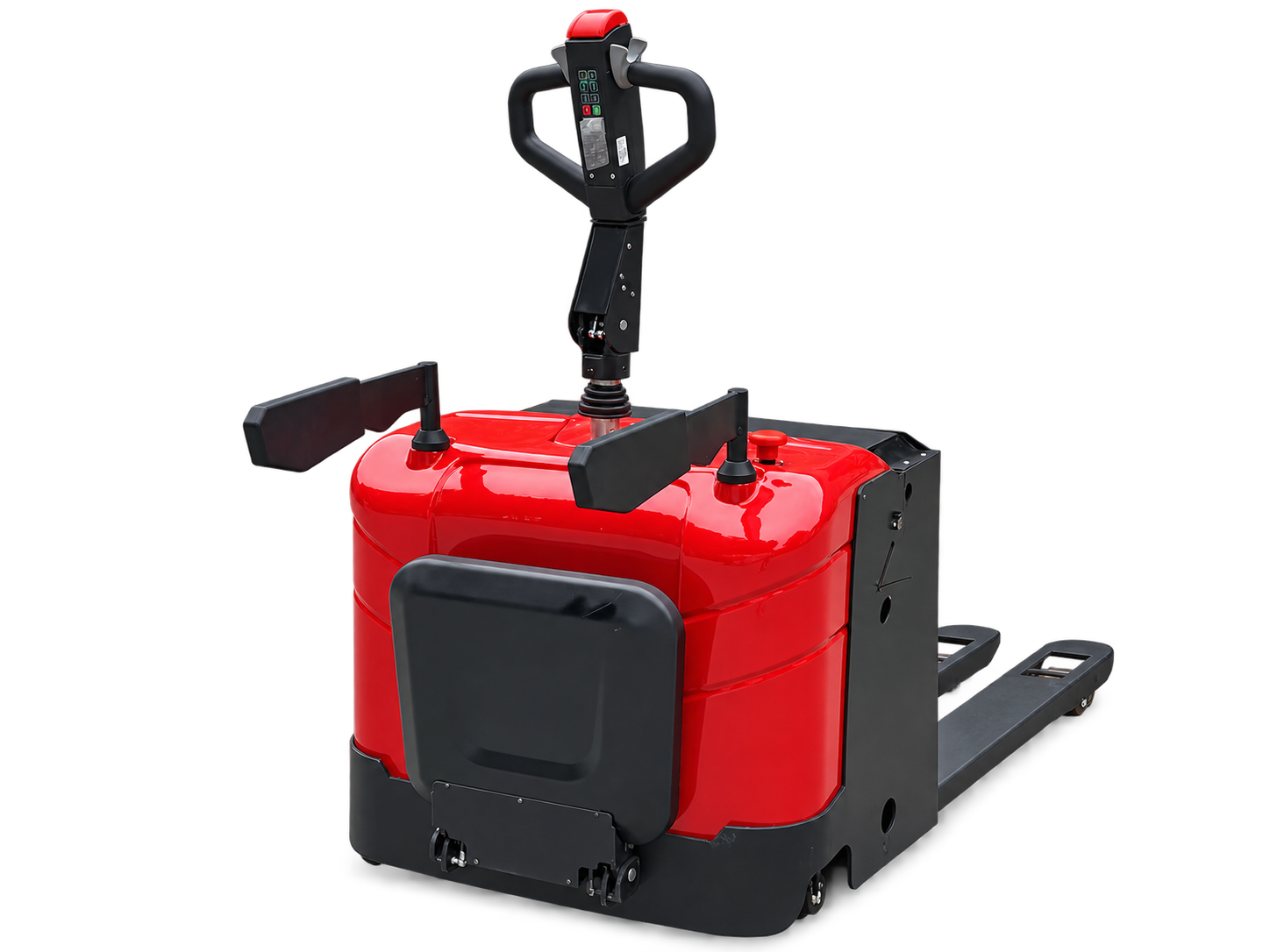

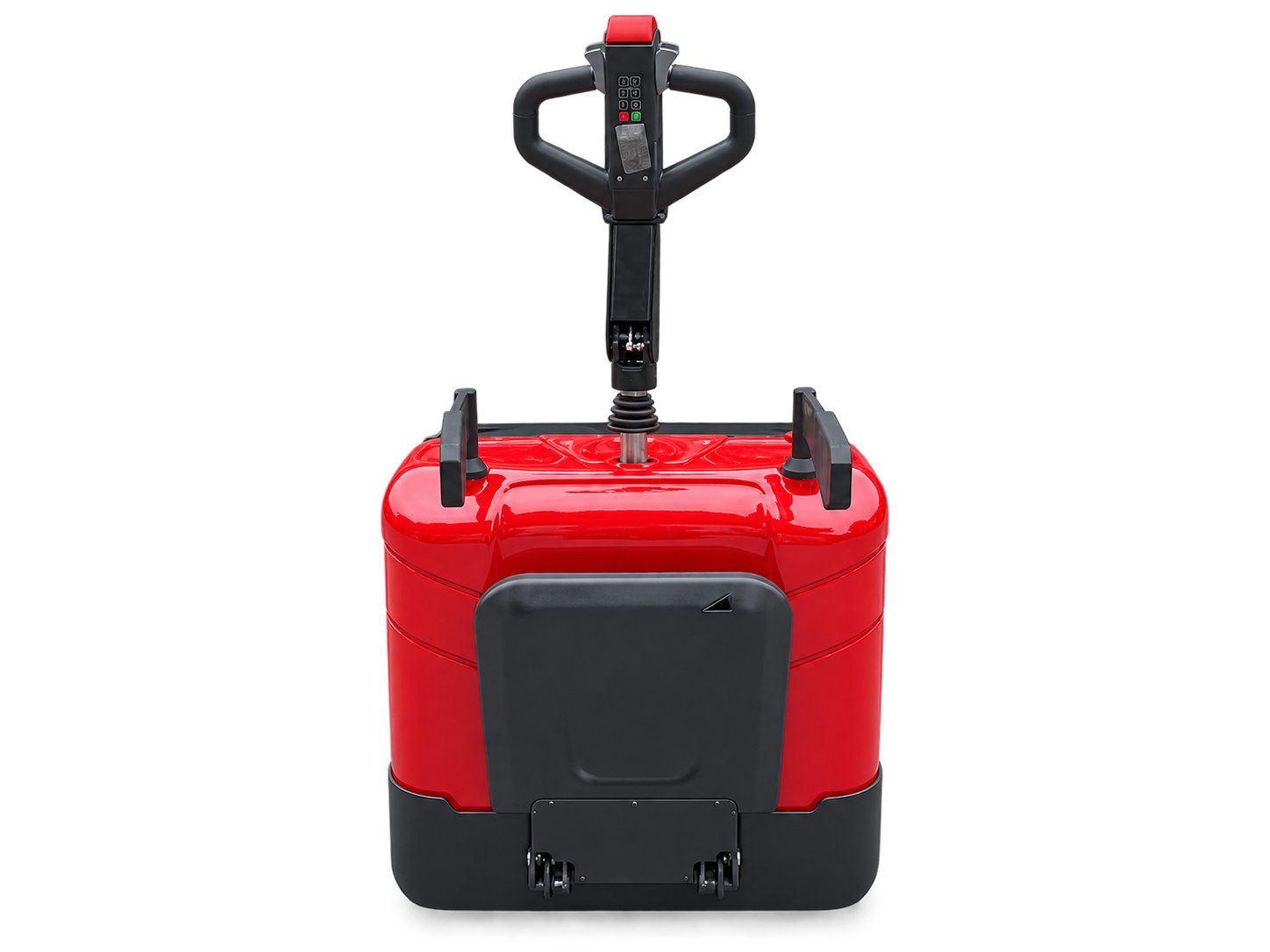

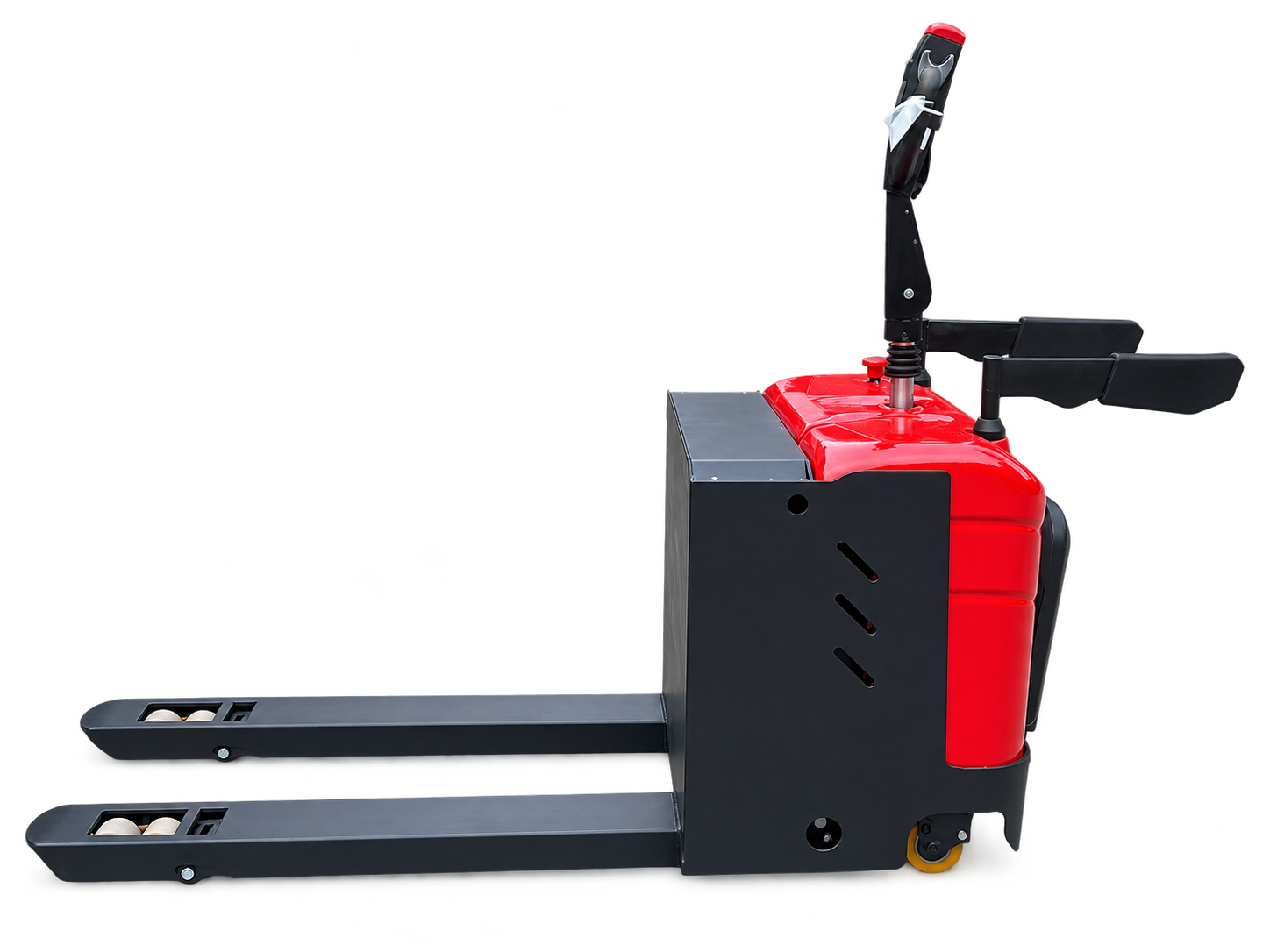

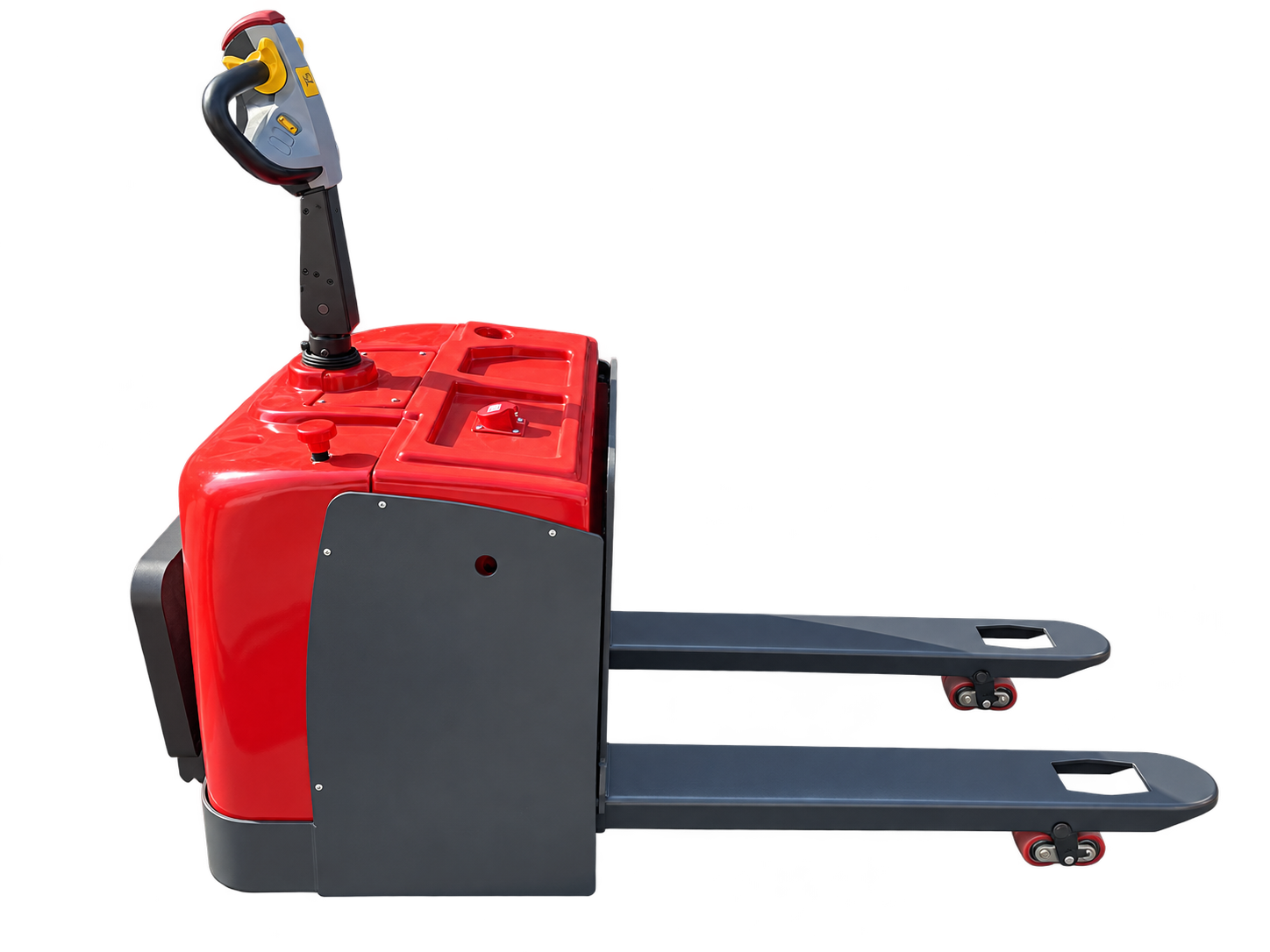

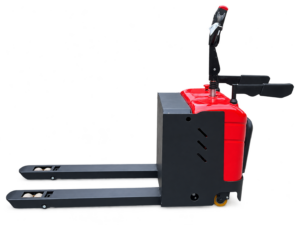

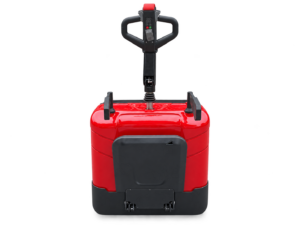

Product photos are for reference. Confirm the final configuration in your quotation.
Model: HT-CDD30-YG

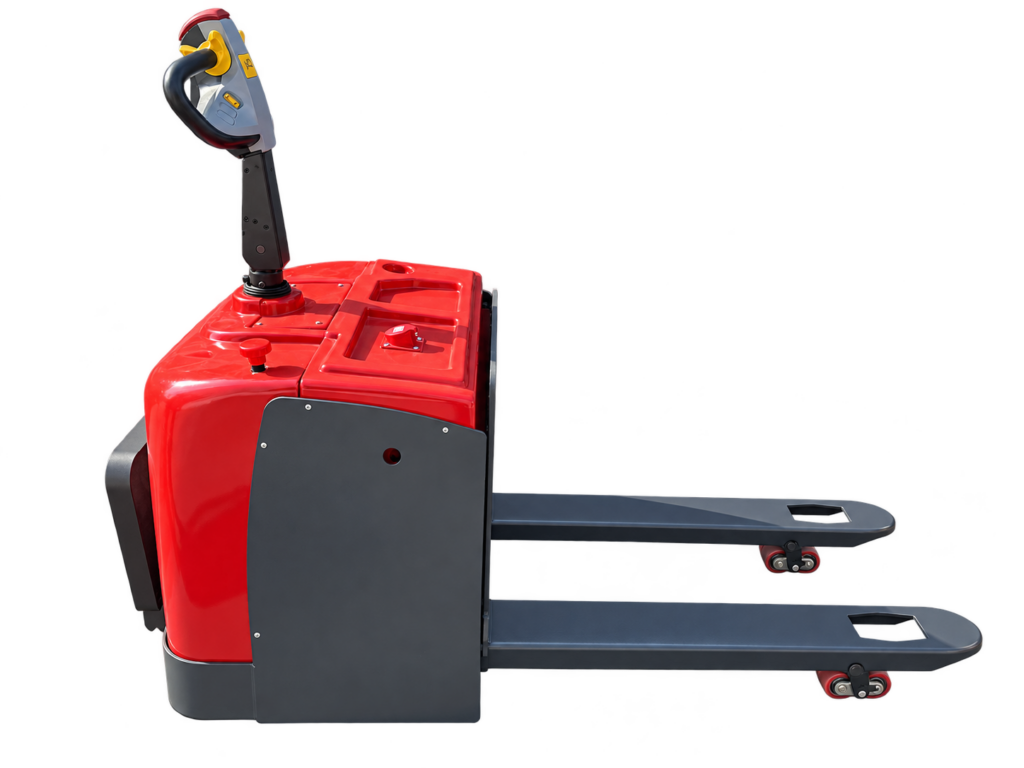

Move pallet loads with electric drive, powered lifting and stand-on operation. The HUATENG CBD rider range includes 2,000–4,000 kg models for warehouse pallet transport. Compare the CBD series with the separate 48V compact stand-on configuration to match your load, pallets and operating route.
2–4 Ton
CBD Rated Capacities
Stand-On
Operator Type
1.5 kW
CBD Drive Motor
2.2 kW
CBD Lifting Motor
CONFIGURATION & PRICE
Select the truck series and rated capacity first, then review pallet fit, battery requirements and operator equipment. CBD and compact 48V specifications are presented separately so you can compare the configuration being quoted.
01 / MODEL & CAPACITY
Compare CBD20, CBD30, CBD35 and CBD40 models with rated capacities of 2,000, 3,000, 3,500 and 4,000 kg. The separate compact 48V range includes listed 2-ton and 3-ton versions. Select the exact series before comparing dimensions or power options.
02 / STAND-ON HANDLING
A rider platform provides a stand-on operating position for pallet movement. Match the truck to your transport route by checking pallet dimensions, turning space, floor conditions and travel distance. Review the platform and protective-arm configuration for the selected version.
03 / BATTERY & EQUIPMENT
The compact 48V configuration has lead-acid and lithium battery options. Choose the battery and charger around your operating hours and charging arrangements. These options belong to the compact version and should not be assumed to apply to every CBD model.
SPECIFICATIONS
Select the CBD series or compact 48V configuration below to review its separate specifications.
Compare the listed CBD models below. Final dimensions and included equipment are confirmed for the selected model.
| CBD20 rated capacity | 2,000 kg |
|---|---|
| CBD30 rated capacity | 3,000 kg |
| CBD35 rated capacity | 3,500 kg |
| CBD40 rated capacity | 4,000 kg |
| Operator type | Stand-on / Rider |
| Load centre | 600 mm |
| Listed raised fork height | 205 mm |
| Lowered fork height | 80 mm |
| Drive motor power | 1.5 kW |
| Lifting motor power | 2.2 kW |
| Fork outside width options | 550 / 650 / 685 mm |
| Fork thickness × width | 54 × 180 mm |
| Fork length options | 1,100 / 1,150 / 1,220 mm |
| Listed truck width | 754 mm |
| Battery specification | Confirm for the selected CBD model |
The options above do not define the configuration of every CBD model. Confirm the selected model, fork dimensions and battery specification in the quotation.
The following dimensions describe the pictured 2-ton compact configuration. A 3-ton version is also listed; request its model-specific specification separately.
| Reference rated capacity | 2,000 kg |
|---|---|
| Operator type | Electric, stand-on |
| Electrical system | 48V |
| Reference truck weight | 420 kg |
| Overall dimensions, L × W × H | 1,850 × 850 × 1,530 mm |
| Fork dimensions, L × W × T | 1,200 × 160 × 50 mm |
| Fork outside width | 685 mm |
| Lowered fork height | 85 mm |
| Listed raised fork height | 200 mm |
| Drive motor power | 1.5 kW |
| Hydraulic pump motor power | 2.2 kW |
| Listed base battery | 48V 20Ah lead-acid |
| Operator equipment | Confirm platform and protective-arm configuration |
Lead-acid capacities: 20Ah, 32Ah and 45Ah.
Lithium capacities: 20Ah, 30Ah, 40Ah, 50Ah, 60Ah, 80Ah, 100Ah and 120Ah.
Battery fit, electrical compatibility, charger requirements and available documentation are checked for the selected configuration.
Tell us your load, pallet dimensions, operating route and daily workload, plus quantity and delivery destination. Confirm any configuration choices shown for your model and include relevant battery, weighing or terrain requirements.
This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.
Your contact details help us reply to your enquiry.
AFTER-SALES & FAQ
Ask about parts identification, operating information and the support terms for your order.
Send the truck model, equipment label and component photos when requesting parts. Include battery and controller details so components can be checked against the correct truck series.
Confirm warranty coverage, battery-related terms, exclusions and parts-support arrangements in the quotation and order documents.
The CBD range lists 2,000, 3,000, 3,500 and 4,000 kg models. The separate compact 48V range lists 2-ton and 3-ton versions. Confirm the exact series and model in your quotation.
No. They have separate specifications. Fork heights, dimensions, truck weight and battery options should be compared within the selected series rather than combined into one configuration.
The CBD reference specification lists 205 mm, while the pictured compact 48V configuration lists 200 mm. These figures apply to different configurations.
Lithium options are listed for the compact 48V version. Battery dimensions, electrical compatibility and charger requirements must be checked. Request the battery specification separately for a CBD model.
Operating time depends on battery capacity, load, travel distance and lifting frequency. Provide your daily work cycle rather than selecting a battery from a general runtime claim.
Confirm the rated capacity, pallet fit, operating space, battery and charger, platform arrangement and protective equipment. The quotation should identify the exact truck series and included configuration.
