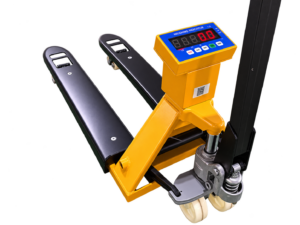

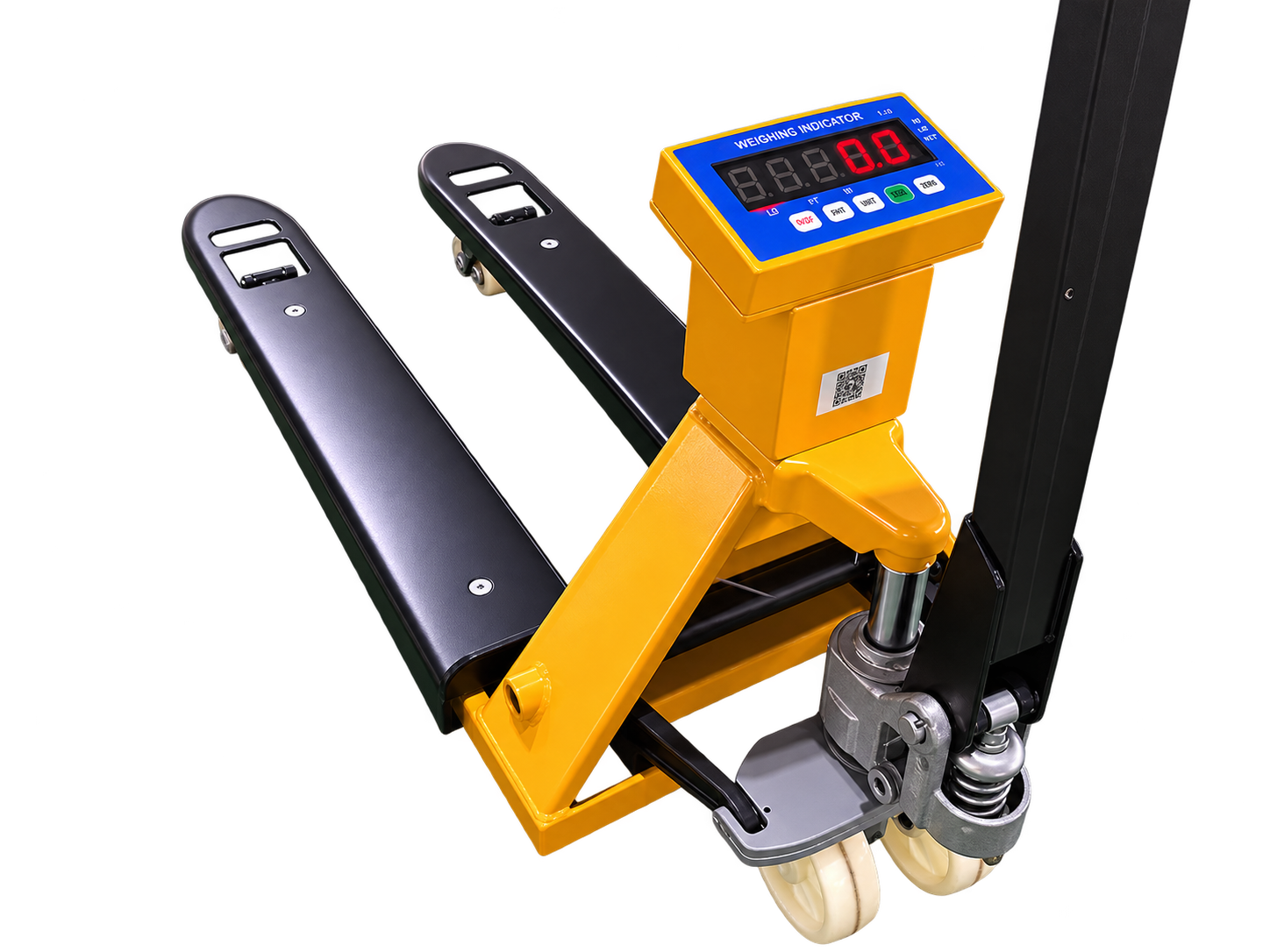

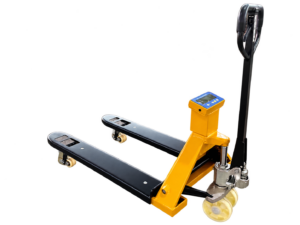

Product photos are for reference. Confirm the final configuration in your quotation.
Model: HT-WTCZ

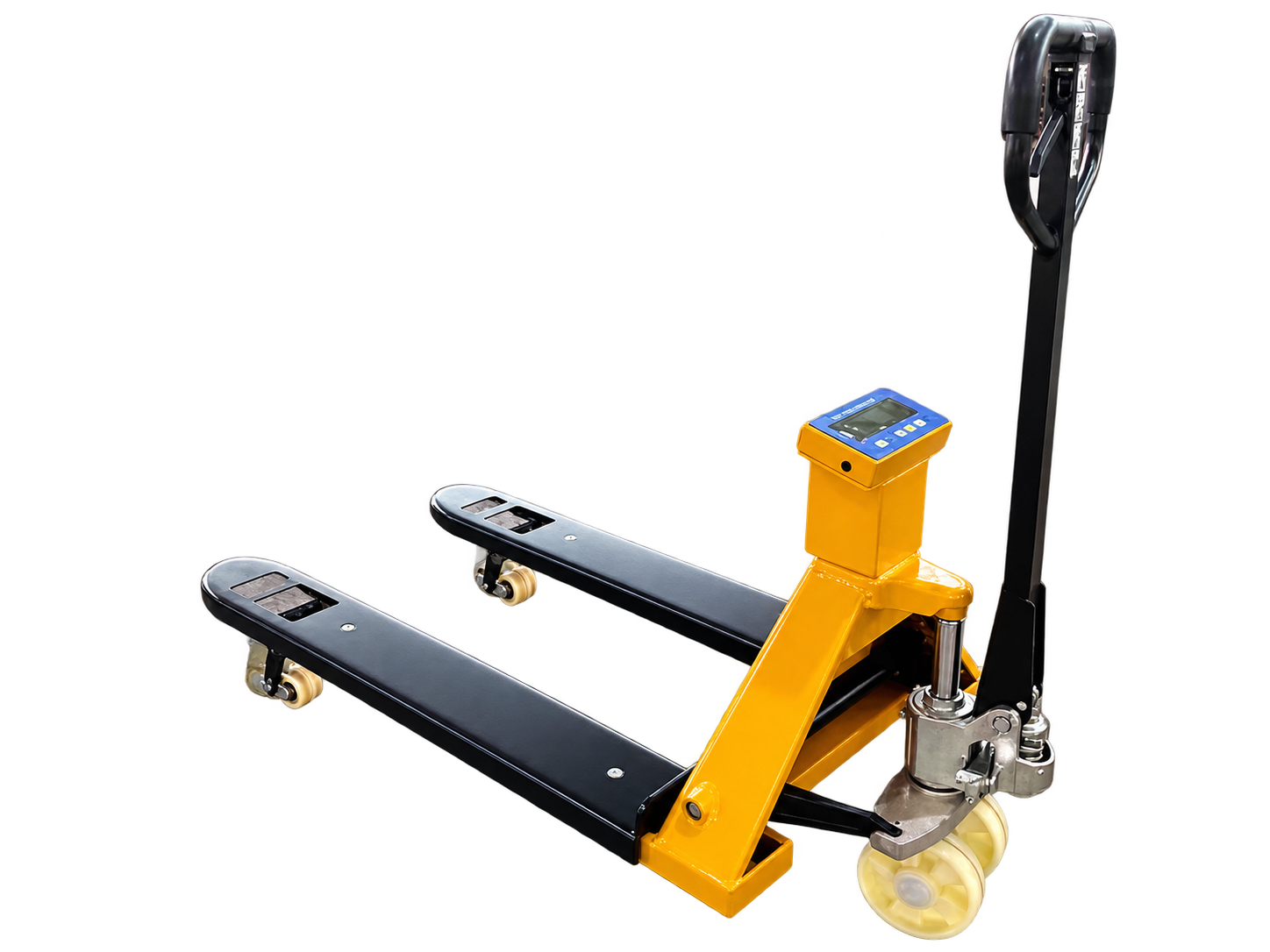

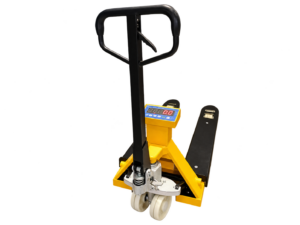

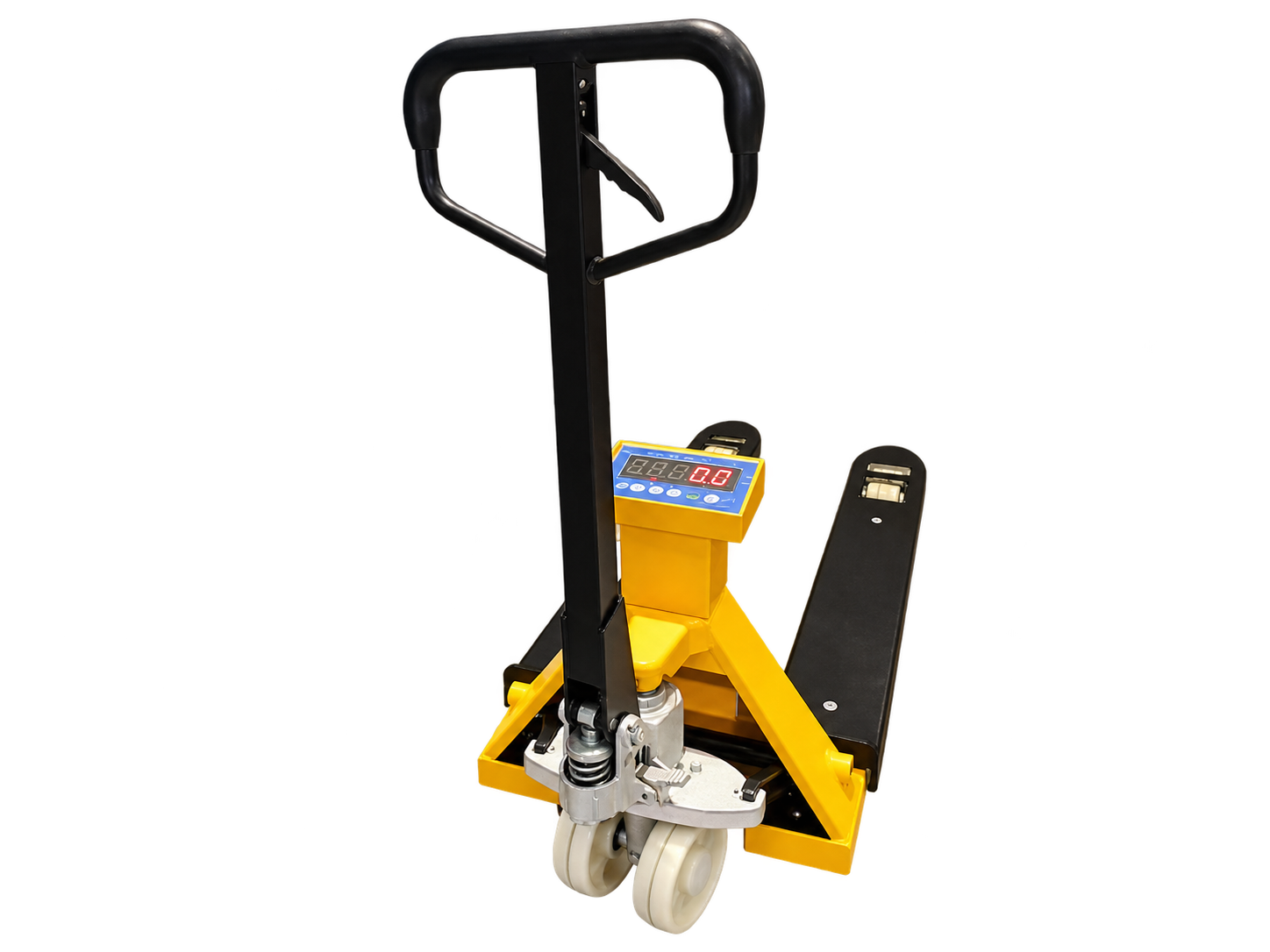

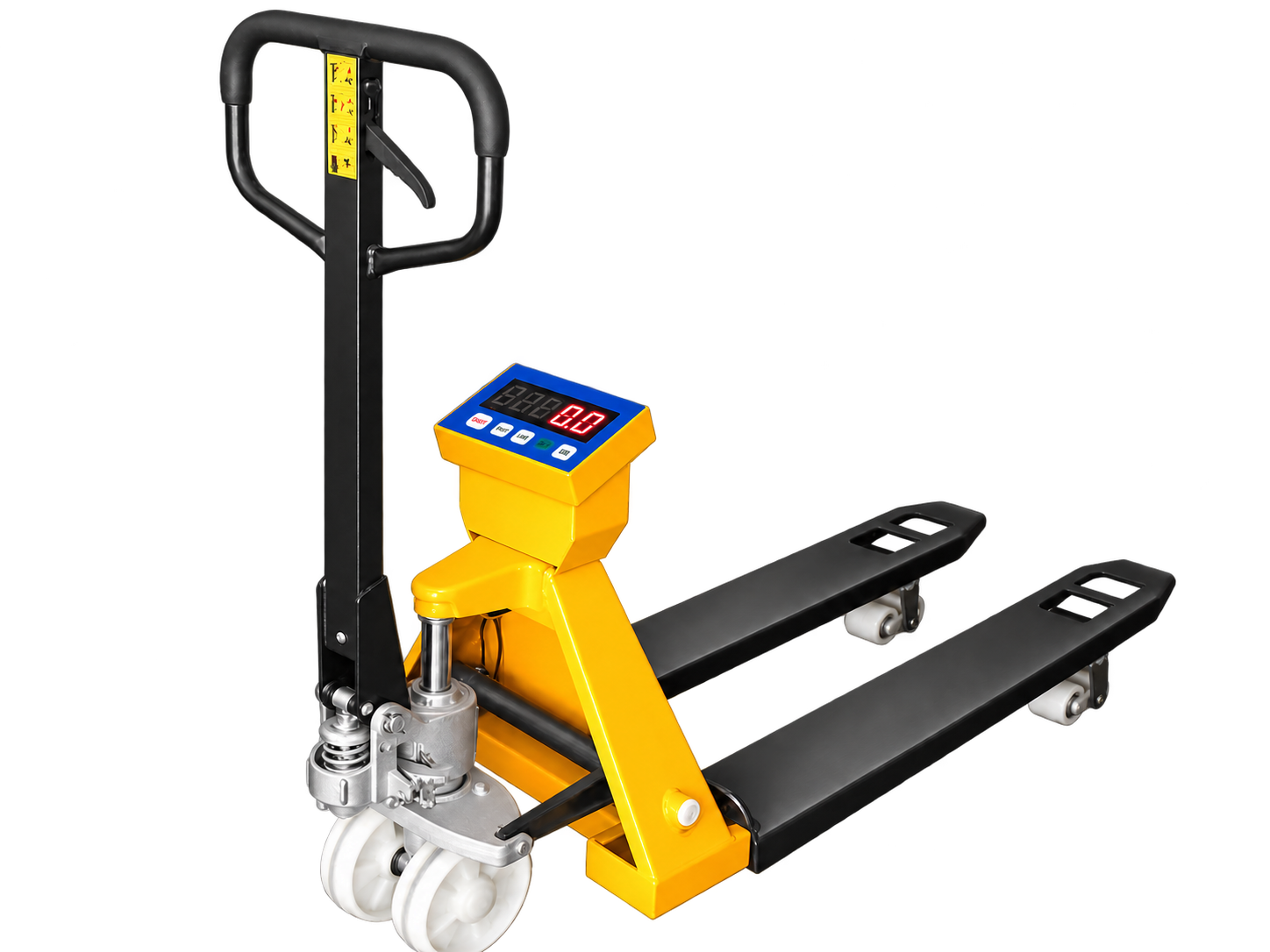

Combine pallet movement and weight checks with a manual pallet jack fitted with a digital weighing system. Choose a 2,000 or 3,000 kg handling configuration, match the forks to your pallets and specify the weighing performance you need. An optional printer is available for printed weight records.
2–3 Ton
Handling Capacity Options
Manual
Hydraulic Operation
1,200 mm
Fork Length
LCD
Weighing Display
CONFIGURATION & PRICE
Match both sides of the job: moving the pallet and measuring its weight. Specify the handling capacity, pallet dimensions, weighing requirements and printing needs for your quotation.
01 / HANDLING & WEIGHING

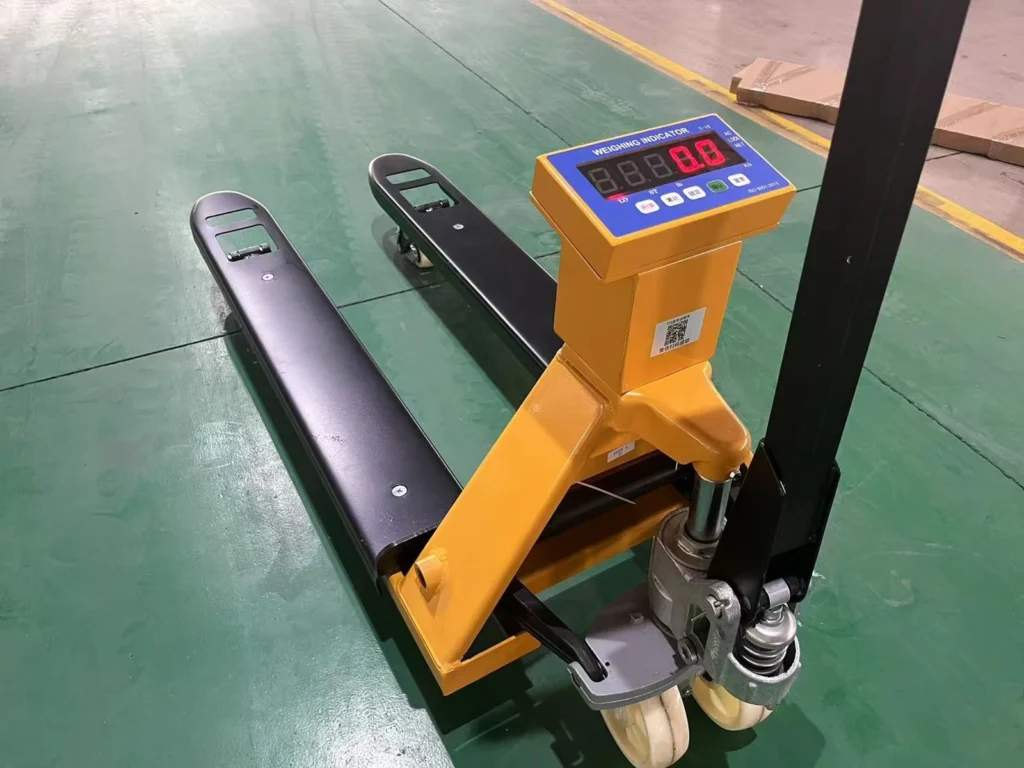

Manual hydraulic lifting and an integrated digital indicator bring pallet handling and weighing into one piece of equipment. Position the load and take a stable reading as part of your receiving, stock-checking or dispatch workflow.
02 / PALLET COMPATIBILITY
The reference configuration uses 1,200 mm forks with 550 or 685 mm outside-width options and a listed lowered height of 90 mm. Check pallet entry height, opening width and bottom-board layout before selecting the fork arrangement.
03 / INDICATOR & PRINTING

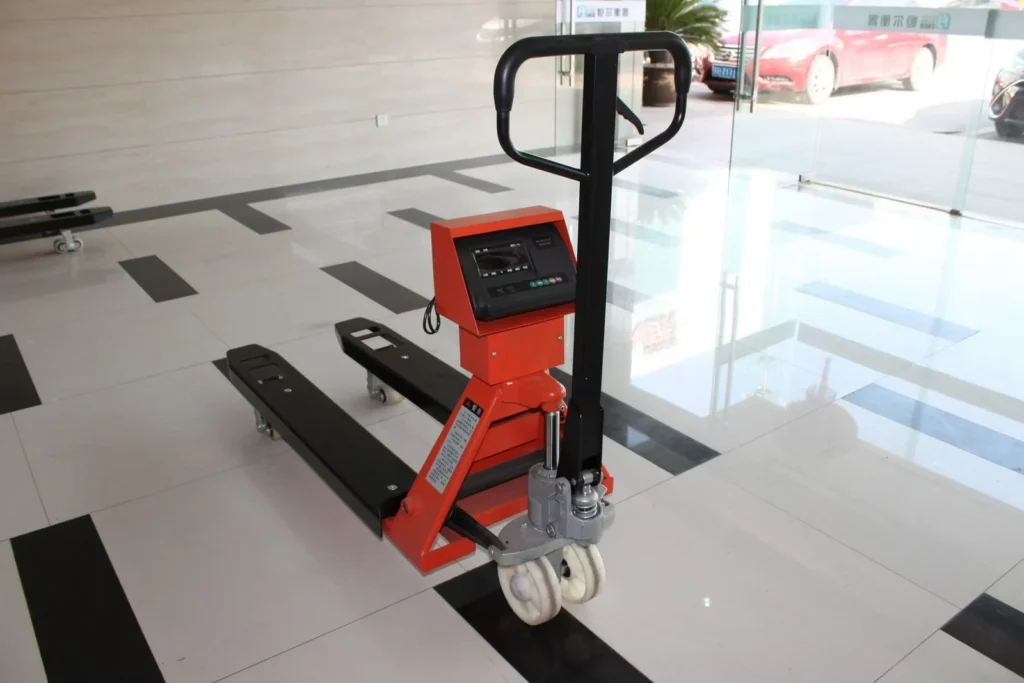

Choose the weighing setup around your required range, display increment and accuracy. Add the optional printer when your process needs a printed record, and confirm the indicator and printout requirements with the quotation.
SPECIFICATIONS
Reference data for the pictured manual weighing configuration. Mechanical handling capacity and weighing-system performance are specified separately.
| Product type | Manual pallet truck with integrated weighing system |
|---|---|
| Mechanical rated capacity options | 2,000 / 3,000 kg |
| Travel | Manual |
| Lifting | Manual hydraulic |
| Fork length | 1,200 mm |
| Fork outside width options | 550 / 685 mm |
| Listed lowered fork height | 90 mm |
| Listed raised fork height | 200 mm |
| Listed steel grade | Q235B |
| Weighing indicator | LCD |
| Listed weighing-system battery | 6V / 4Ah |
| Wheel material options | Nylon / Polyurethane |
| Printer | Optional |
| Weighing range, resolution and accuracy | Confirm for the selected weighing system |
The 2,000 and 3,000 kg values describe mechanical handling capacity options. Confirm the selected weighing range, display increment, accuracy and calibration requirements separately. Fork dimensions and included equipment are recorded in the quotation.
Tell us your load, pallet dimensions, operating route and daily workload, plus quantity and delivery destination. Confirm any configuration choices shown for your model and include relevant battery, weighing or terrain requirements.
This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.
Your contact details help us reply to your enquiry.
AFTER-SALES & FAQ
Ask about parts identification, operating information and the support terms for your order.
For indicator or weighing-system enquiries, provide the indicator model, equipment label and a description of the issue. Include clear photos so the correct components can be identified.
Confirm warranty coverage, parts arrangements and any calibration documentation required for your order before purchase.
This configuration uses manual travel and manual hydraulic lifting. Electrical power is used by the weighing system; it does not provide powered travel.
Not automatically. Mechanical handling capacity and weighing range are separate specifications. Both must be confirmed for the selected truck and weighing system.
Request the indicator’s weighing range, display increment and stated accuracy, together with the relevant test conditions. A display increment alone is not a guarantee of measurement accuracy.
This configuration is not presented as an in-motion weighing system. Stop the truck, position the load correctly and take a stable reading according to the operating instructions.
A printer is an optional configuration. Specify whether you need printed weight records and confirm the indicator, printer and required printout details in the quotation.
This page does not claim legal-for-trade approval. State your destination and intended use so the available model-specific approval and calibration documentation can be checked before ordering.
