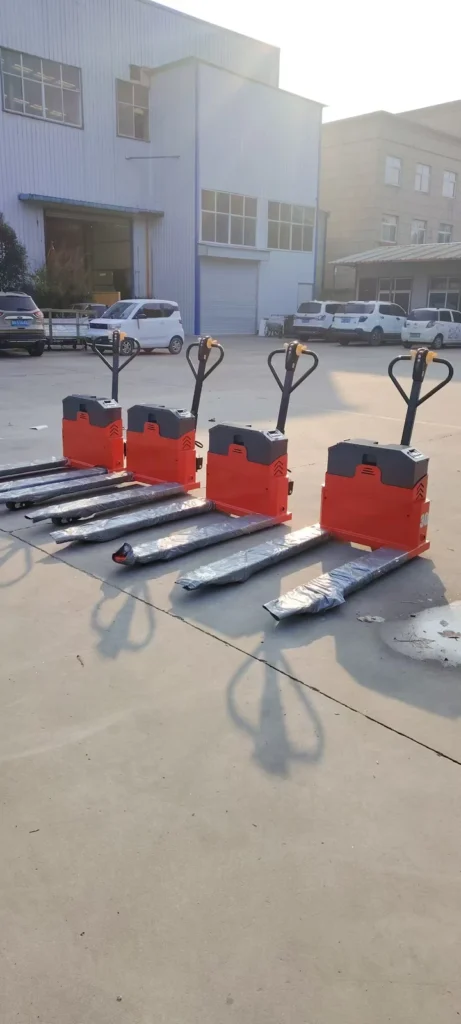

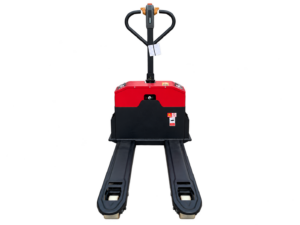

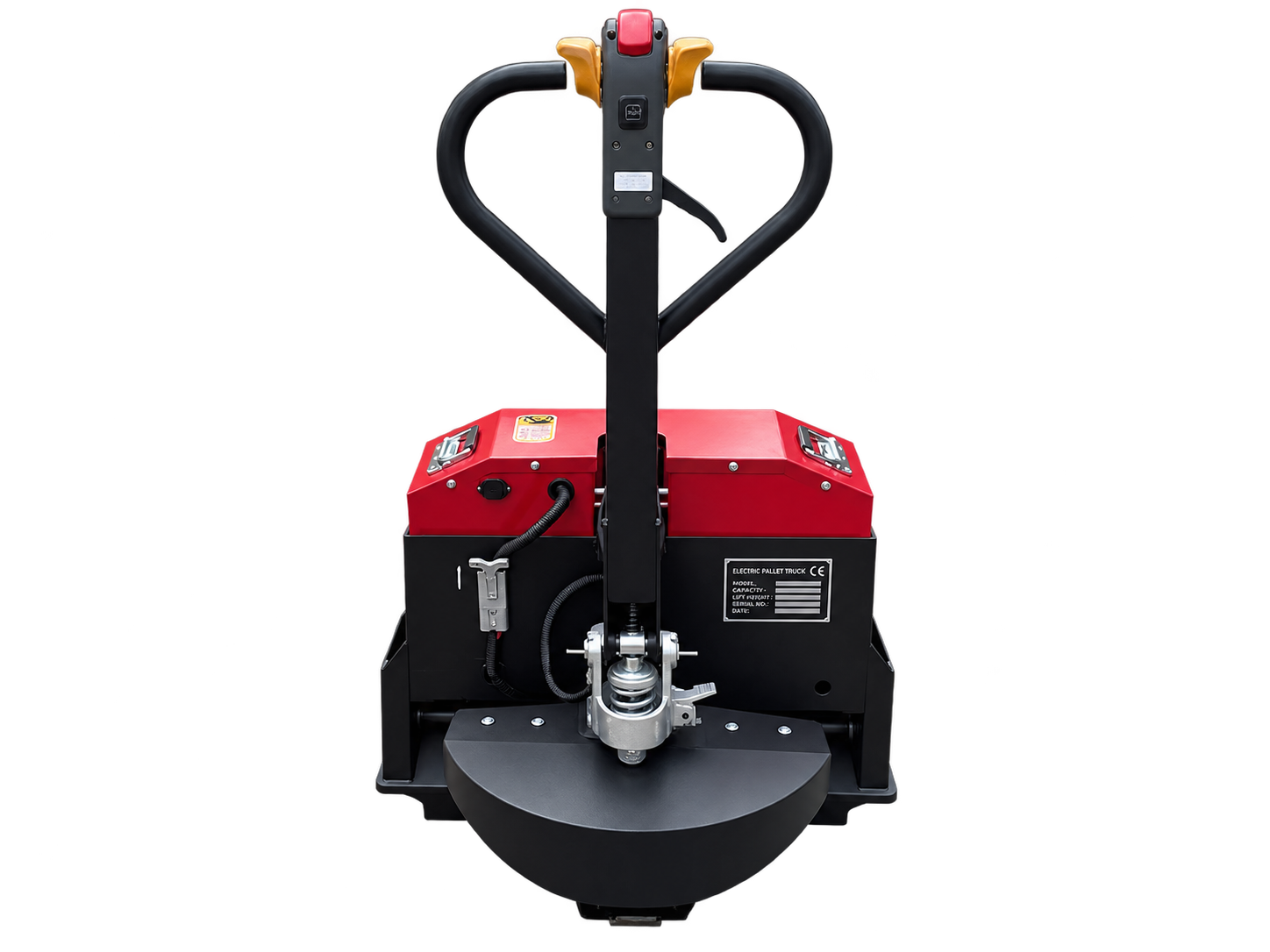

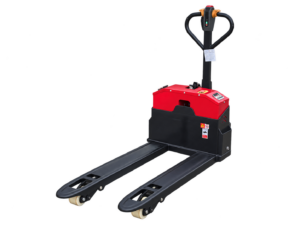

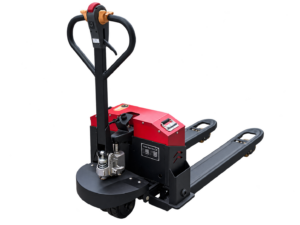

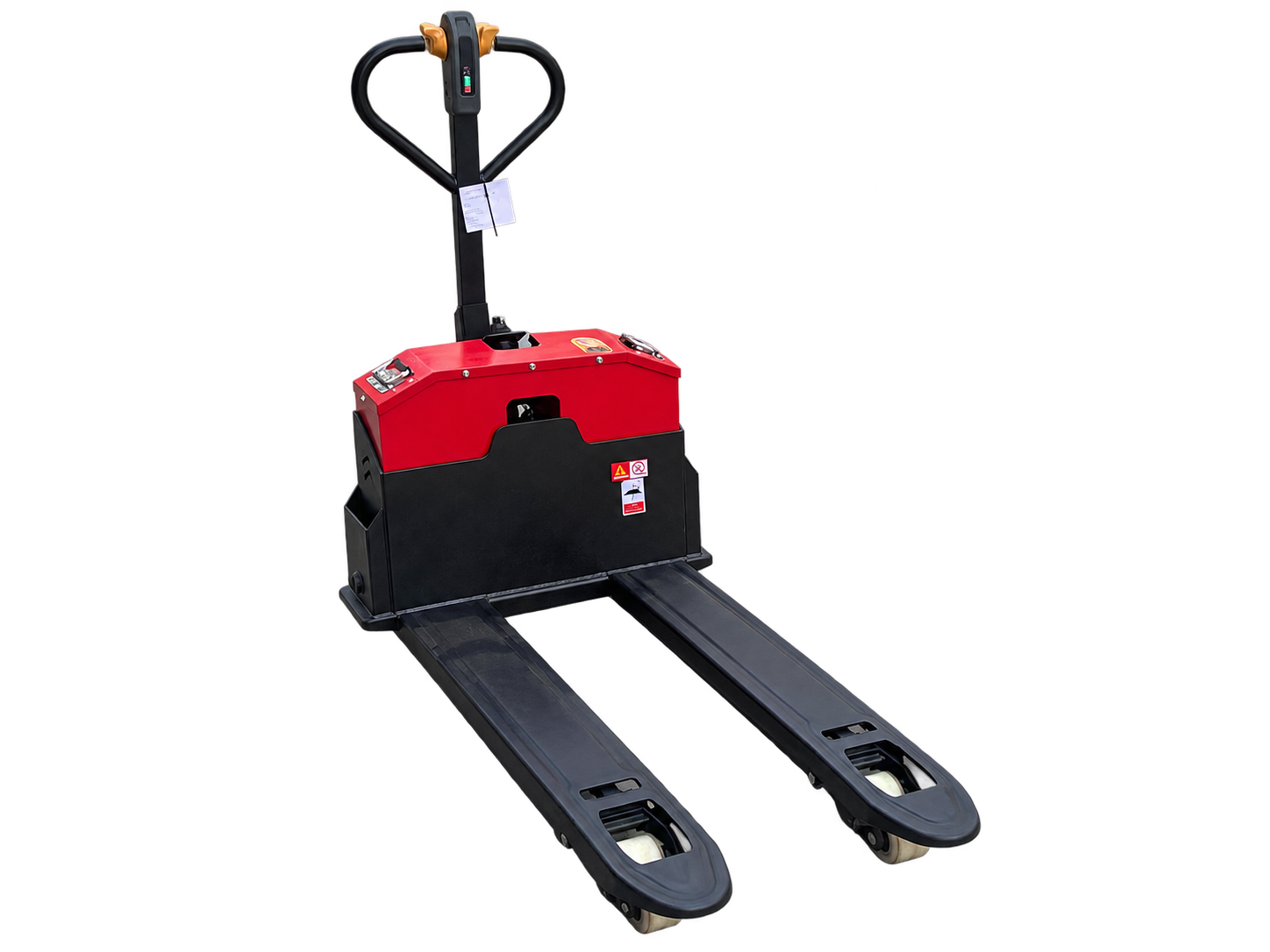

Product photos are for reference. Confirm the final configuration in your quotation.
Model: HT-WTQD-007

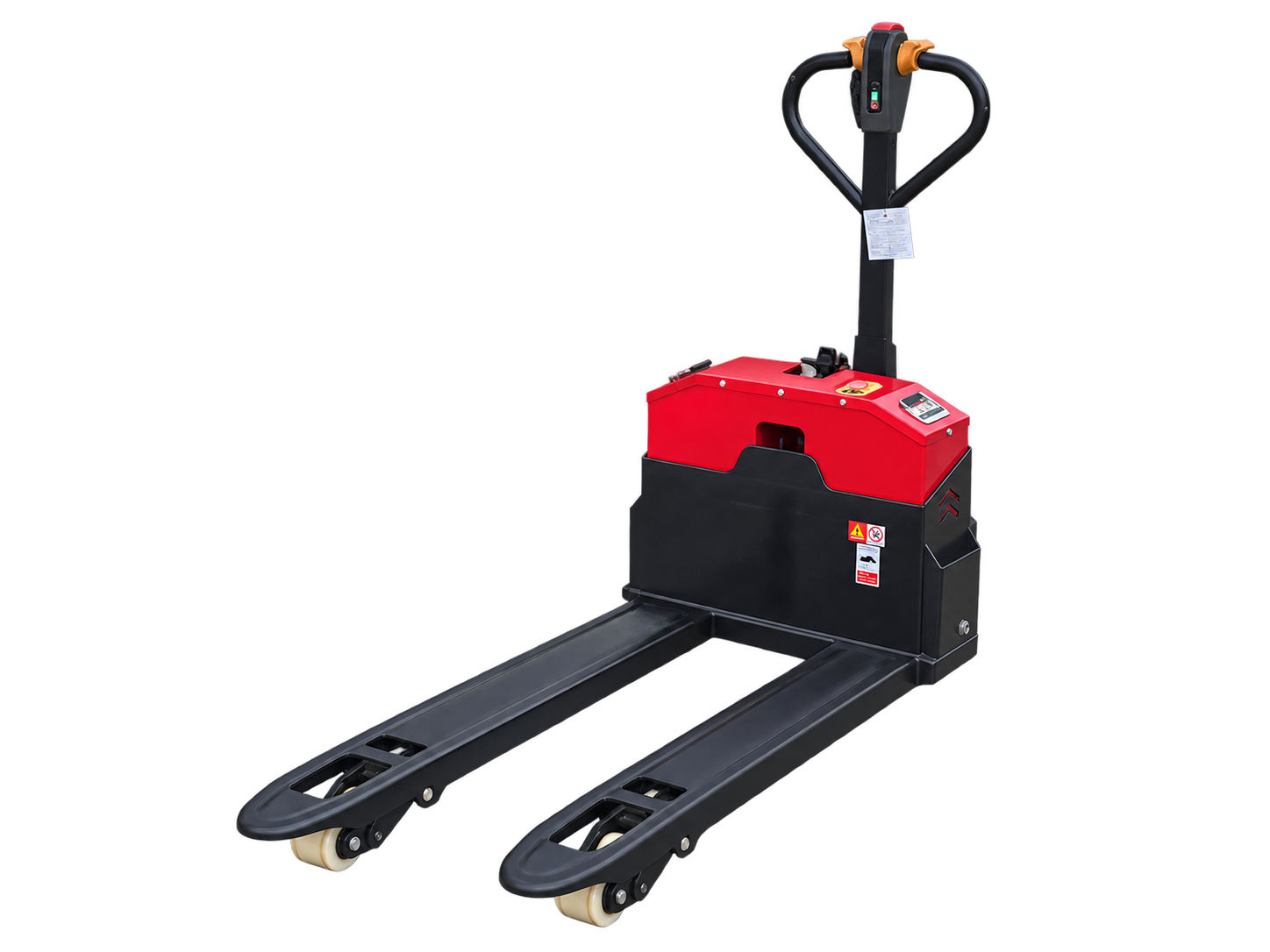

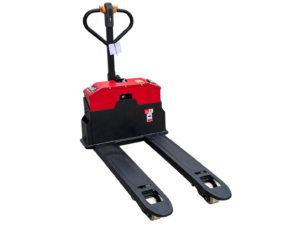

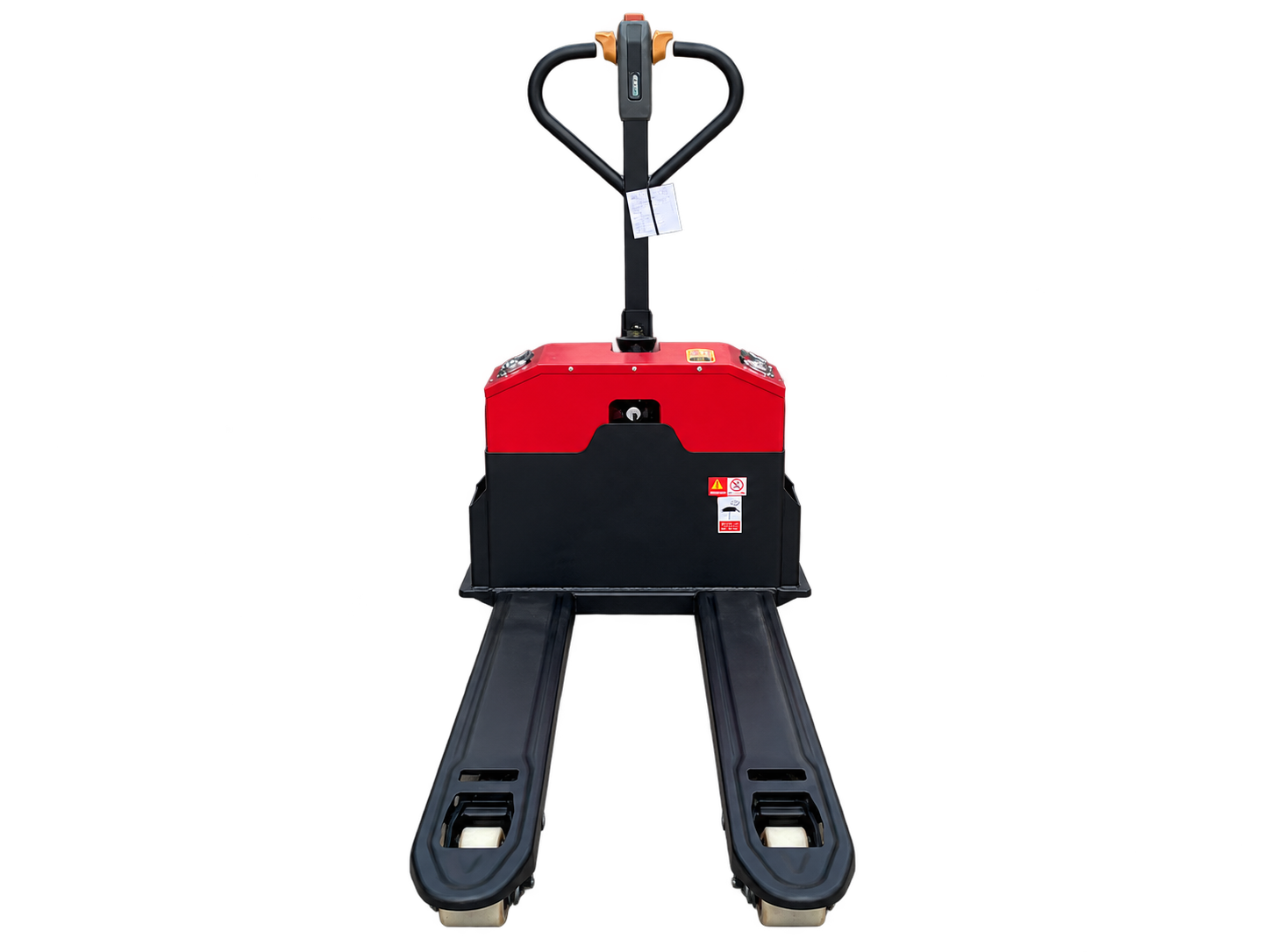

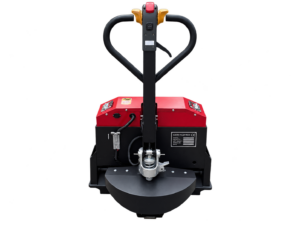

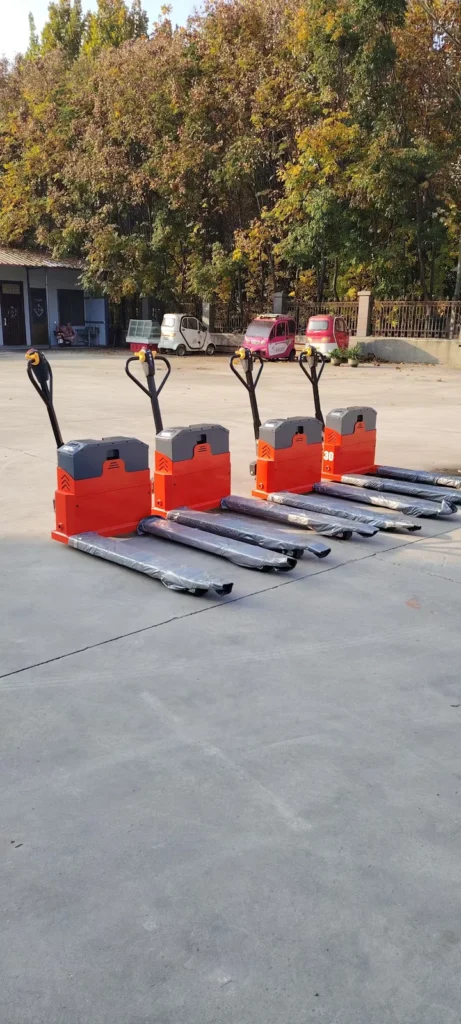

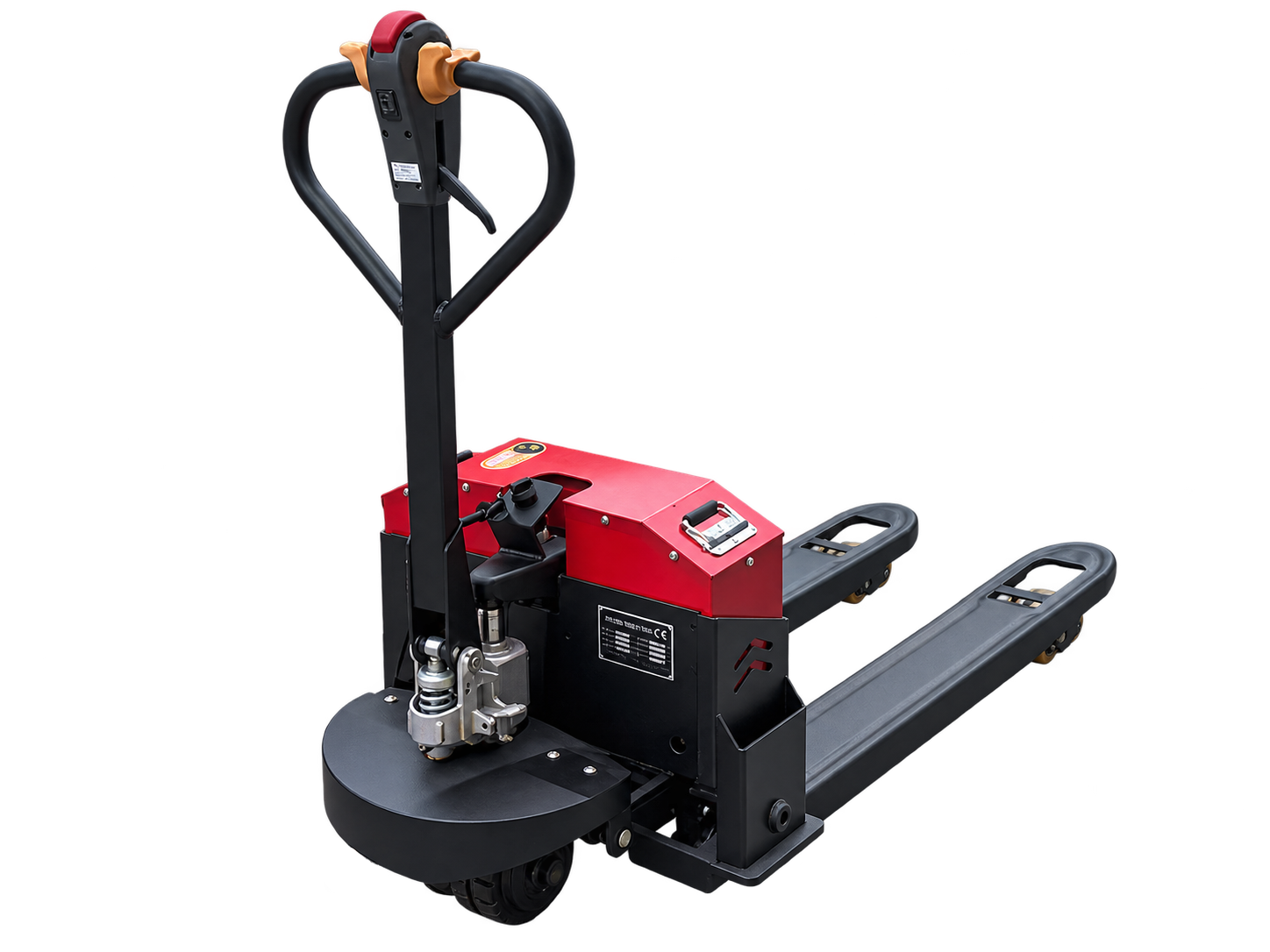

Handle pallet loads up to 3,000 kg with powered travel and electric lifting. This HUATENG walk-behind pallet truck combines a 48V electrical system, tiller operation and a removable battery box. Choose a 550 or 685 mm fork outside width to match your pallets and handling requirements.
3,000 kg
Rated Capacity
Electric
Travel & Lifting
48V
Electrical System
550 / 685 mm
Fork Outside Width
CONFIGURATION & PRICE
Start with the load you handle, then match the forks and power configuration to your operation. Your quotation should identify the selected truck, battery, charger, packing and delivery terms.
01 / ELECTRIC OPERATION
A 1.5 kW drive motor handles powered movement, while a separate 1.2 kW hydraulic pump motor provides electric lifting. The operator walks with the truck and controls it from the tiller, making this a fully electric walkie configuration rather than a manual-lift model.
02 / PALLET COMPATIBILITY

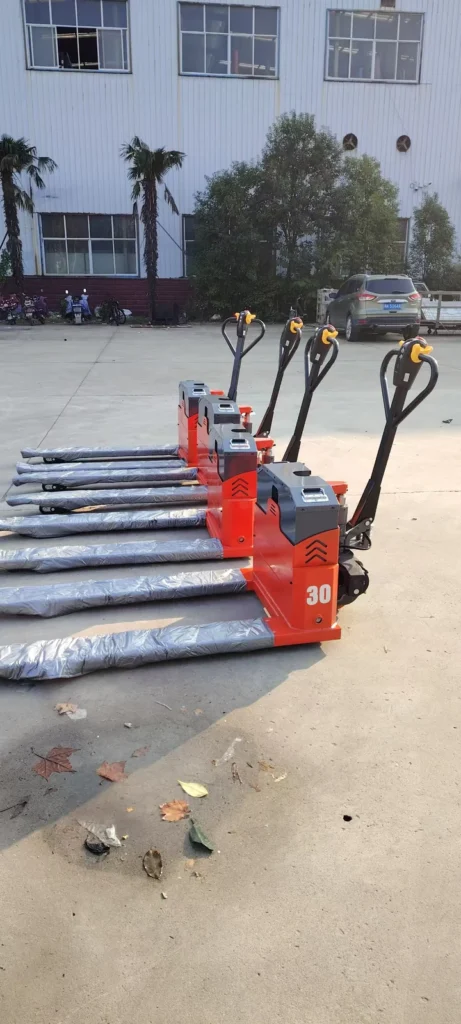

The listed forks measure 1,160 × 160 × 50 mm, with 550 or 685 mm outside-width configurations. Share your pallet entry openings and loaded dimensions so the selected fork arrangement can be checked before ordering.
03 / BATTERY & CHARGING
The removable battery box is a feature of this configuration. Specify your working hours and local charging supply so the battery capacity, battery type and charger can be included in your quotation. Do not select a battery by voltage alone.
SPECIFICATIONS
Reference specification for the pictured all-electric economy configuration. Dimensions are in metric units.
| Rated load capacity | 3,000 kg |
|---|---|
| Operator type | Walk-behind / Walkie |
| Travel | Electric |
| Lifting | Electric hydraulic |
| Electrical system | 48V |
| Drive motor power | 1.5 kW |
| Hydraulic pump motor power | 1.2 kW |
| Fork dimensions, L × W × T | 1,160 × 160 × 50 mm |
| Fork outside width options | 550 / 685 mm |
| Fork inside width options | 230 / 365 mm |
| Overall dimensions, L × W × H | 1,670 × 685 × 1,260 mm |
| Drive wheel | Ø160 × 55 mm |
| Load wheel | Ø80 × 70 mm |
| Battery box | Removable |
| Battery capacity and charger | Specified for the selected configuration |
Overall dimensions shown refer to the listed 685 mm-wide configuration. Battery capacity, charging requirements and final dimensions are confirmed in the quotation.
Tell us your load, pallet dimensions, operating route and daily workload, plus quantity and delivery destination. Confirm any configuration choices shown for your model and include relevant battery, weighing or terrain requirements.
This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.
Your contact details help us reply to your enquiry.
AFTER-SALES & FAQ
Ask about parts identification, operating information and the support terms for your order.
Share the truck label, order details and clear photos of the required component. Include battery or controller labels when your enquiry concerns the electrical system.
Confirm the written warranty period, coverage, exclusions and parts-support arrangements before ordering.
The configuration shown here has both electric travel and electric hydraulic lifting. It uses separate drive and pump motors and does not rely on manual pumping for normal lifting.
The listed fork length is 1,160 mm, with 550 or 685 mm outside-width options. Send the pallet entry dimensions and pallet construction details for a compatibility check.
No. This is a walk-behind model operated from its tiller. For a truck with an operator platform, compare the HUATENG rider electric pallet truck range.
The configuration uses a 48V electrical system and a removable battery box. Battery chemistry, capacity, charger input and plug type are specified in the quotation.
Runtime depends on the selected battery, load, travel distance and lifting frequency. Provide your handling cycle and working hours so the battery configuration can be assessed.
The final price depends on the fork configuration, battery, charger, quantity, packing and delivery terms. Request a quotation that separates the equipment configuration from the shipping scope.
