Model: HT-CQD-S
1.5–2.5 Ton Stand-Up Electric Reach Truck
Huateng HT-CQD-S — stand-up reach trucks for narrow-aisle storage, with 1.5–2.5 Ton capacity and 24V or 48V platforms. Listed lift heights range from 6,000 to 7,500mm by model.
1.5 – 2.5 Ton
Rated capacity
2,775mm
Min. aisle width
7,500mm
Max. lift height
Stand-Up
Operator position
CONFIGURATION & PRICE
Match Your Reach Truck to Your Warehouse
Confirm your load, rack height, pallet dimensions and aisle width. Compare the selected mast, battery, reach mechanism and delivery terms in your quotation.
Huateng HT-CQD-S is a stand-up reach truck built for narrow-aisle warehousing where every meter of floor space counts. Operating in aisles as narrow as 2,775mm with lift heights up to 7,500mm, it handles multi-tier racking operations that standard counterbalance forklifts simply cannot reach.
Available in 24V and 48V configurations from 1.5 to 2.5 tons, the truck covers a wide range of warehouse demands — from compact low-rise storage to high-bay distribution centers. Both platforms feature AC drive systems with CURTIS controllers, electromagnetic regenerative braking, and electronic steering for precise, low-fatigue handling. The stand-up operator platform allows quick on-off access for high-frequency picking workflows, while the compact body fits through standard freight elevators and tight dock areas.
01 / Handling
Auto Corner Deceleration
Auto Corner Deceleration
Automatically slows in turns — protecting operators, racking, and inventory.
Regenerative Braking
Recovers energy while braking and lowering, extending battery runtime per charge.
02 / Lift & Control
CURTIS AC Control System
CURTIS AC Control System
US-brand controllers with built-in diagnostics — smooth, reliable, easy to troubleshoot.
Dual Voltage Options
24V for compact operations, 48V for heavy-duty high-bay — one platform, scalable to your needs.
03 / Application

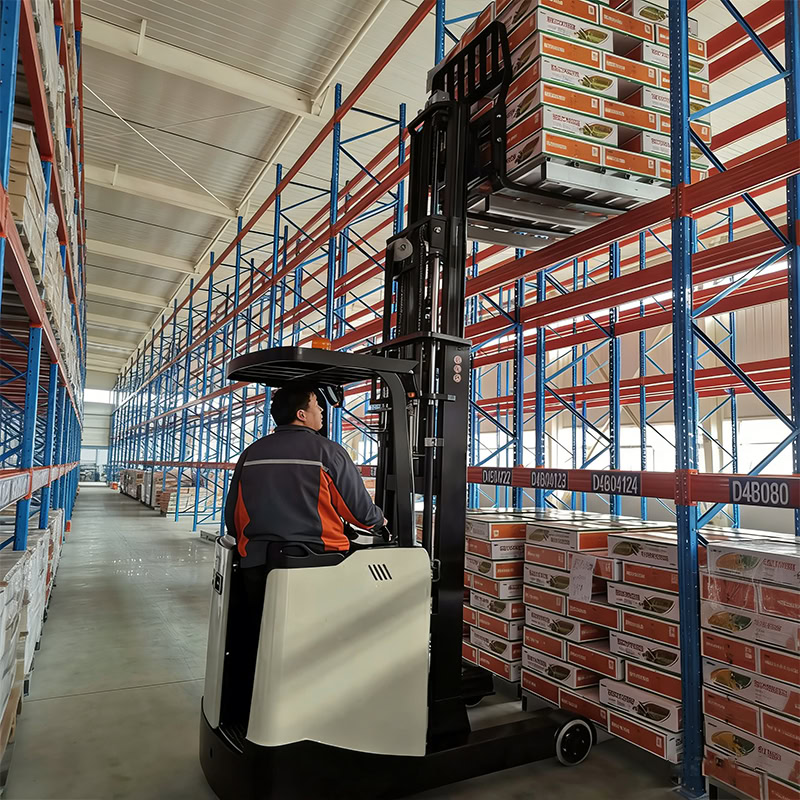

High-Bay Reach
High-Bay Reach
Lifts up to 7,500mm with precision control, covering 4–5 tier racking in one truck.
Narrow Aisle Mastery
Works in aisles as narrow as 2,775mm — maximize your warehouse storage density.
Watch the HT-CQD-S
Reference demonstration from the source product range. Confirm the supplied mast, battery and operator configuration in your quotation.
SPECIFICATIONS
1.5–2.5 Ton Stand-Up Electric Reach Truck
Specifications
HT-CQD-S — Model reference.
Metric units. Check each listed mast configuration.
| Specification | Unit | UTR15C | UTR20C | UTR16 | UTR20 | UTR25 |
|---|---|---|---|---|---|---|
| Rated Load | kg | 1,500 | 2,000 | 1,600 | 2,000 | 2,500 |
| Max. Lift Height | mm | 6,000 | 6,000 | 7,500 | 7,500 | 7,500 |
| Free Lift Height | mm | 2,030 | 2,030 | 2,535 | 2,535 | 2,535 |
| Min. Aisle Width (1200×1000 pallet) | mm | 2,775 | 2,830 | 2,865 | 2,865 | 2,970 |
| Battery | V / Ah | 24 / 280 | 24 / 280 | 48 / 300 | 48 / 400 | 48 / 420 |
| Drive Motor | kW | 2.2 | 2.2 | 4.5 (AC) | 6.5 (AC) | 6.5 (AC) |
| Overall Size (L×W) | mm | 2,355 × 1,090 | 2,385 × 1,090 | 2,440 × 1,260 | 2,440 × 1,260 | 2,520 × 1,270 |
| Vehicle Weight (incl. battery) | kg | 2,540 | 2,700 | 3,320 | 3,500 | 3,600 |
Get In Touch
Tell us what you need. Our team will reply with configuration, price and delivery details.
This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.
Your contact details help us reply to your enquiry.
AFTER-SALES & FAQ
Support After Delivery
Help with troubleshooting, parts identification and your order.
Parts Identification
Share your truck model, serial number and component details so we can check the required parts.
Warranty for Your Order
The warranty period, coverage and parts-support arrangements are confirmed in the quotation and order.
Frequently Asked Questions
How do I confirm the right model for my racking?
Send your load weight, load centre, pallet dimensions, rack height and clear aisle width. Huateng will confirm the suitable model and the capacity at your required height.
Is the advertised lift height included in every model?
Lift height and free lift depend on the selected model and mast. Use the specification table as a reference and confirm the complete configuration in the quotation.
What aisle width should I use for planning?
The stated minimum depends on pallet orientation and the truck configuration. Send the pallet size, aisle measurements and racking layout for a clearance check.
Can I specify the battery and charger?
Battery voltage and capacity differ by model. Confirm the battery type, shift requirements, site power supply and compatible charger before ordering.
Does this model suit double deep or VNA racking?
This is a single-deep reach truck family. For second-row pallets or very narrow aisle racking, compare the double deep and turret truck models.
How can I request a complete quotation?
Use the inquiry form below with your preferred model, capacity, lift height and destination. Include rack drawings and pallet dimensions when available.
