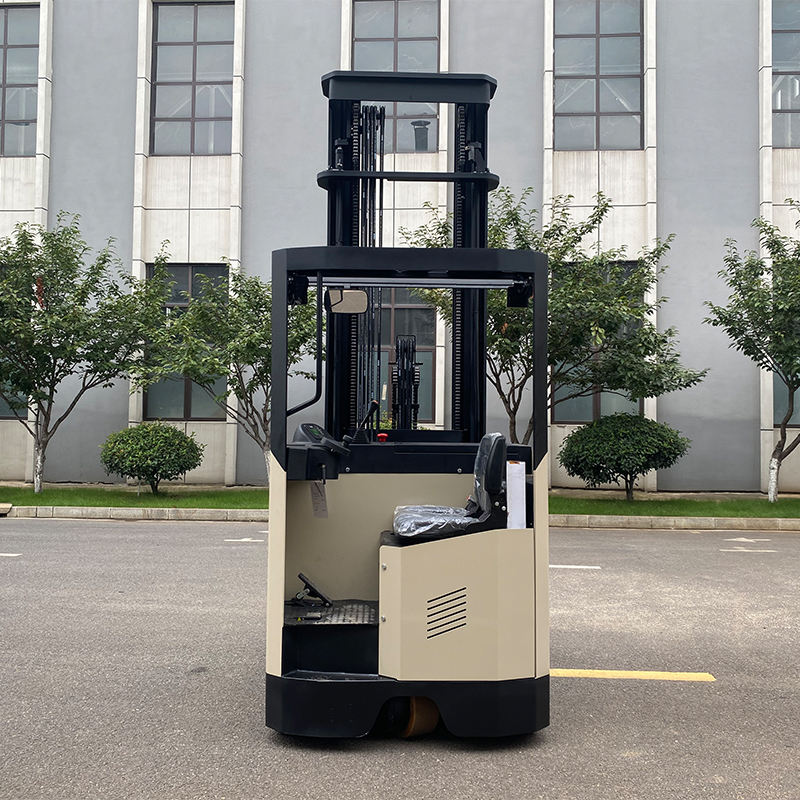

Model: HT-CQDJ-H

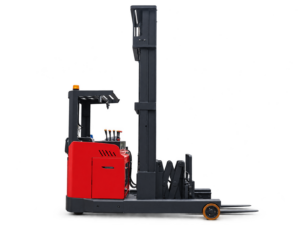

1.6 Ton Sit-Down Double Deep Reach Truck
Huateng HT-CQDJ-H — a 1.6 Ton sit-down double deep reach truck for second-row pallet access, with 1,000mm scissor reach, lift height up to 6,000mm and a 48V platform.
1.6 Ton
Rated capacity
3,085mm
Min. aisle width
6,000mm
Max. lift height
Sit-Down
Operator position
CONFIGURATION & PRICE
Match Your Reach Truck to Your Warehouse
Confirm your load, rack height, pallet dimensions and aisle width. Compare the selected mast, battery, reach mechanism and delivery terms in your quotation.
Huateng HT-CQDJ-H is a sit-down double deep reach truck with scissor-type extending forks designed for operators working full-day shifts in double-deep racking environments. One aisle serves four rows of pallets — increasing warehouse storage density by up to 40% compared to single-deep systems.
With lift heights up to 6,000mm, a 1,000mm forward scissor reach, and a sit-down ergonomic cabin, the truck handles continuous double-deep operations across 8-hour and multi-shift schedules with sit-down operator controls. Powered by a 48V AC drive system with 6.5 kW motor and CURTIS controllers, it delivers precise fork positioning at both depth and height for reliable second-row pallet access.

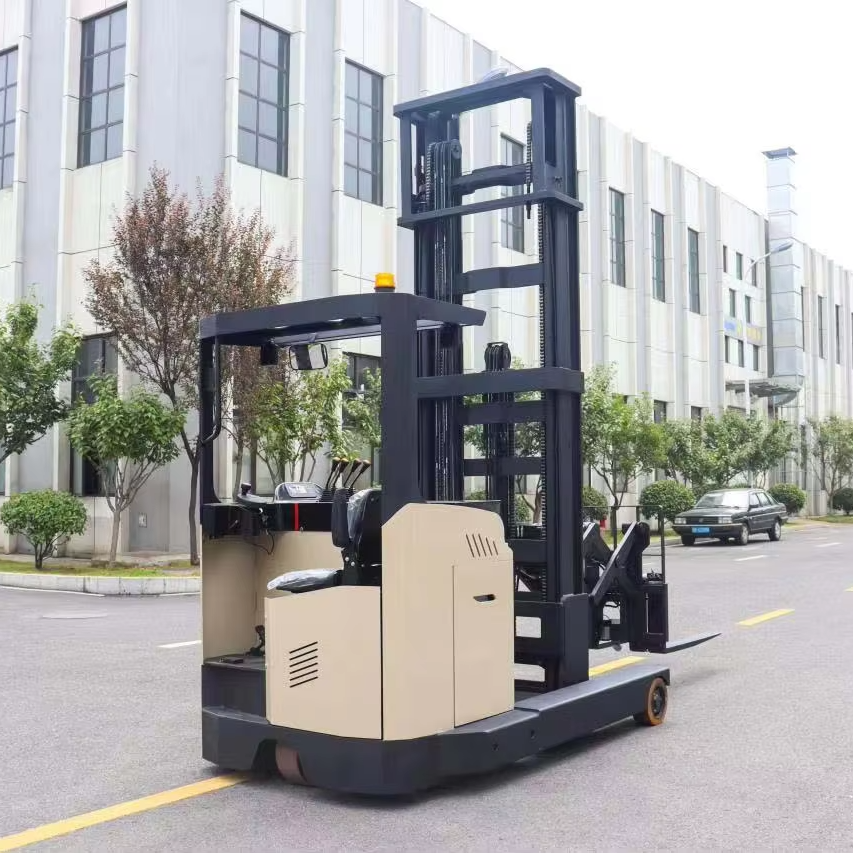

01 / Handling
Auto Corner Deceleration
Auto Corner Deceleration
Automatically reduces speed in turns — protecting operators, racking, and double-stacked inventory.
CURTIS AC Control System
US-brand controllers with built-in fault diagnostics — smooth stepless speed regulation for precise positioning at depth and height.
02 / Lift & Control

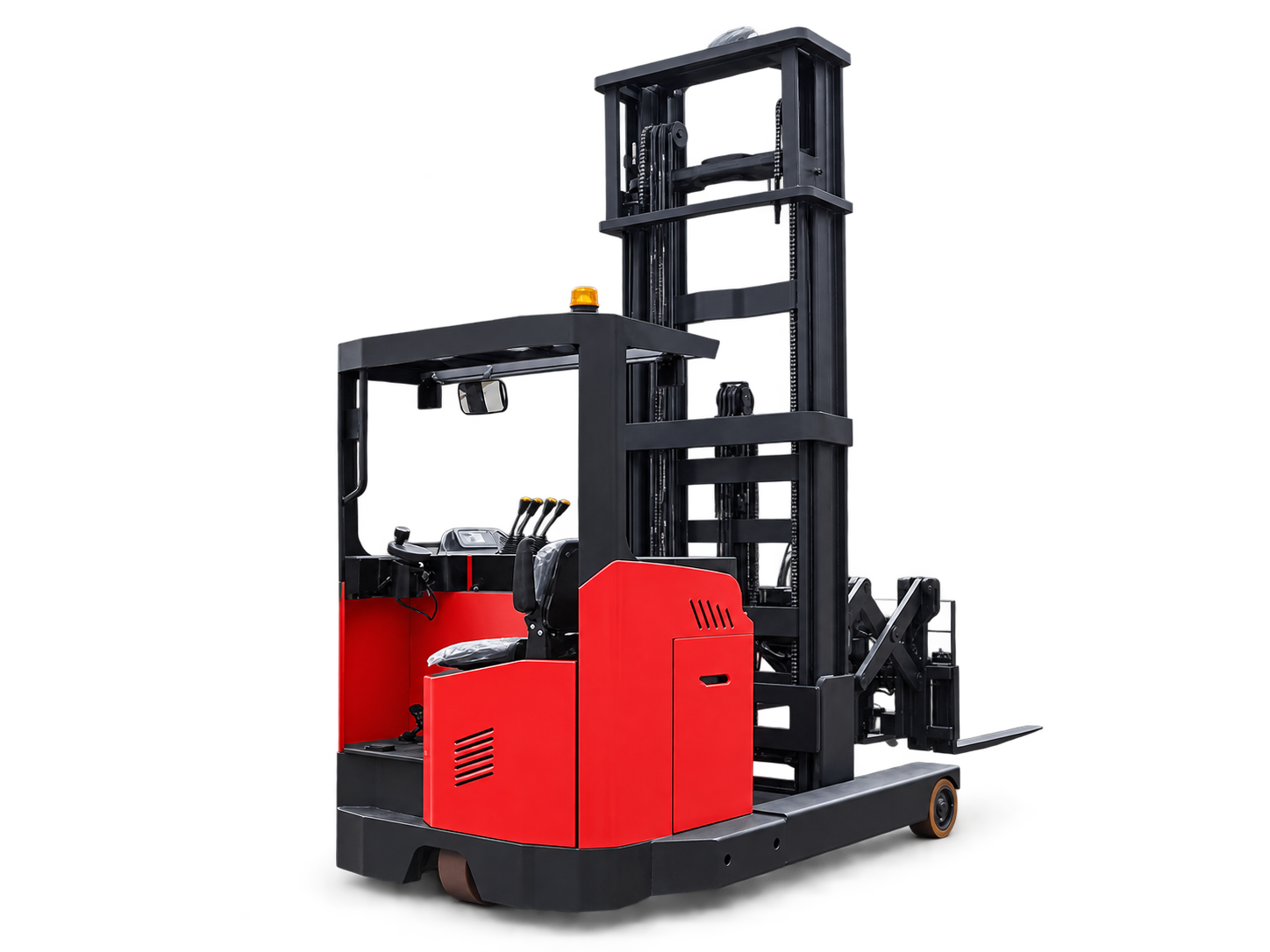

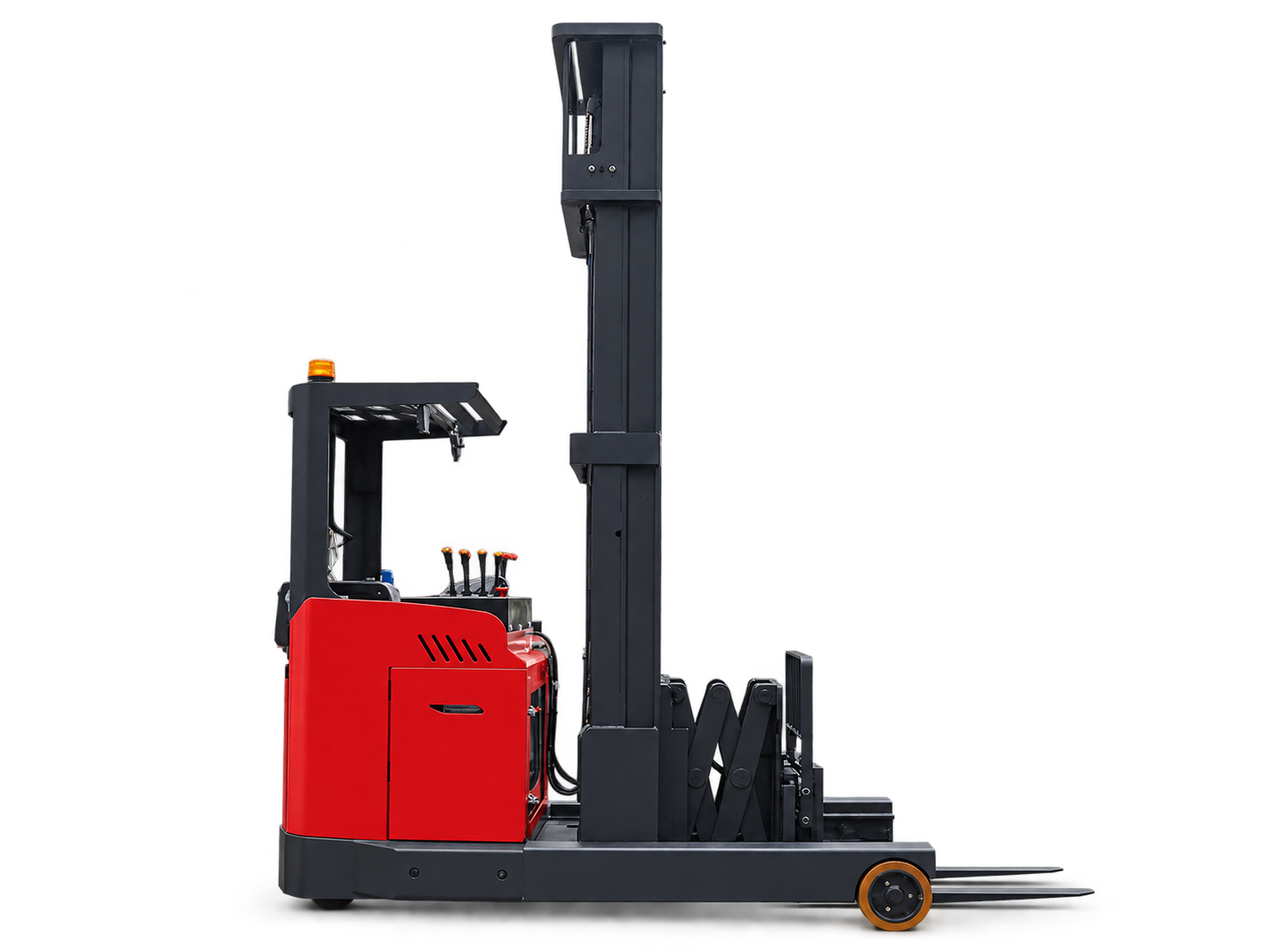

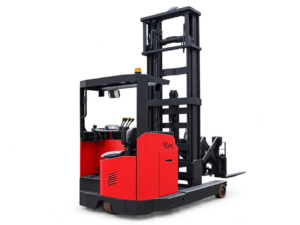

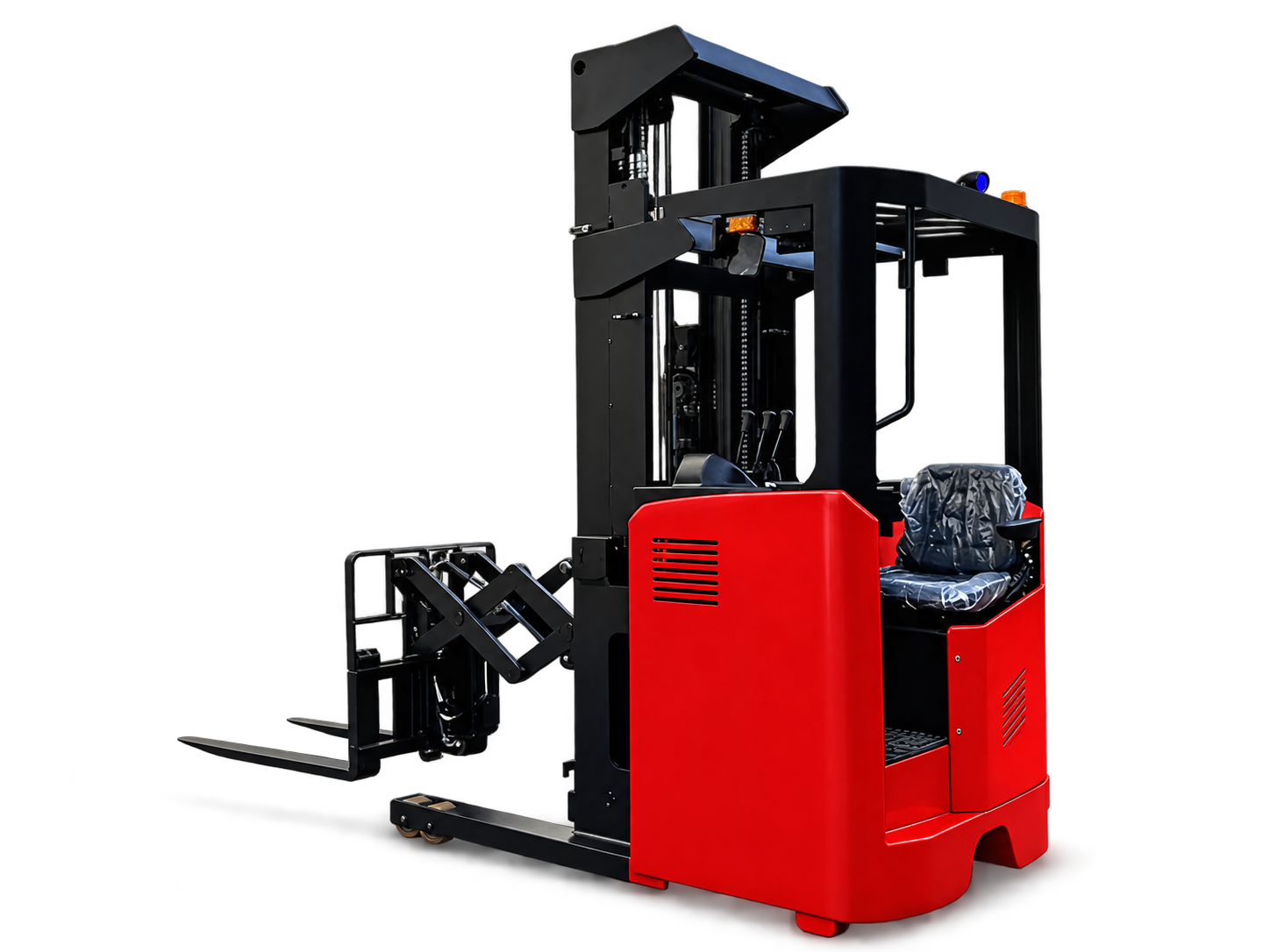

1,000mm Scissor Reach
1,000mm Scissor Reach
Full forward extension precisely places and retrieves pallets in the second-row position behind the front pallet.

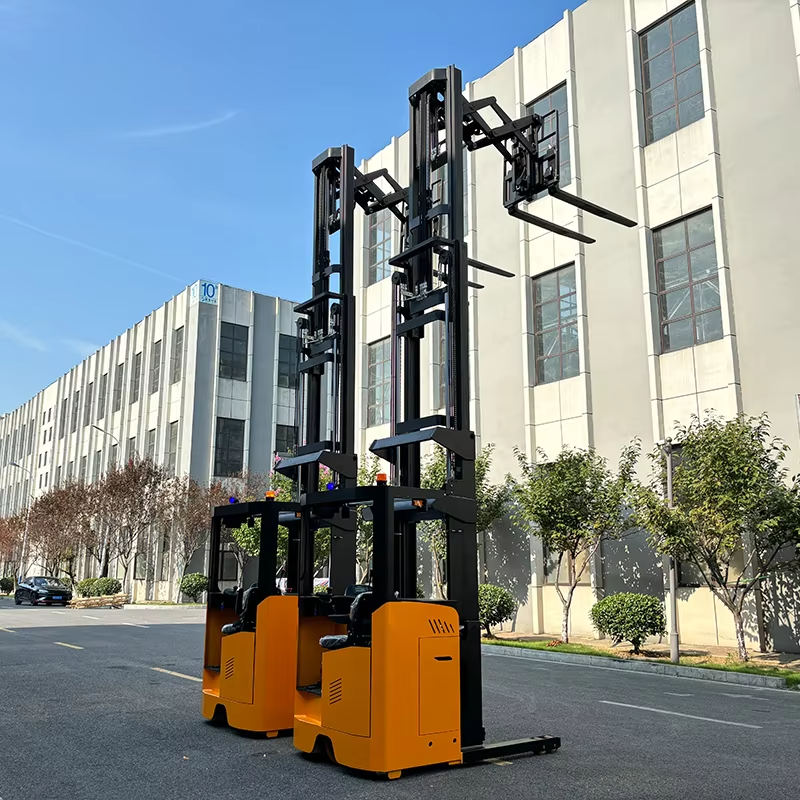

6,000mm Lift Height
Handles multi-tier double-deep racking up to 6 meters, covering 4–5 storage levels in a single truck.
03 / Application

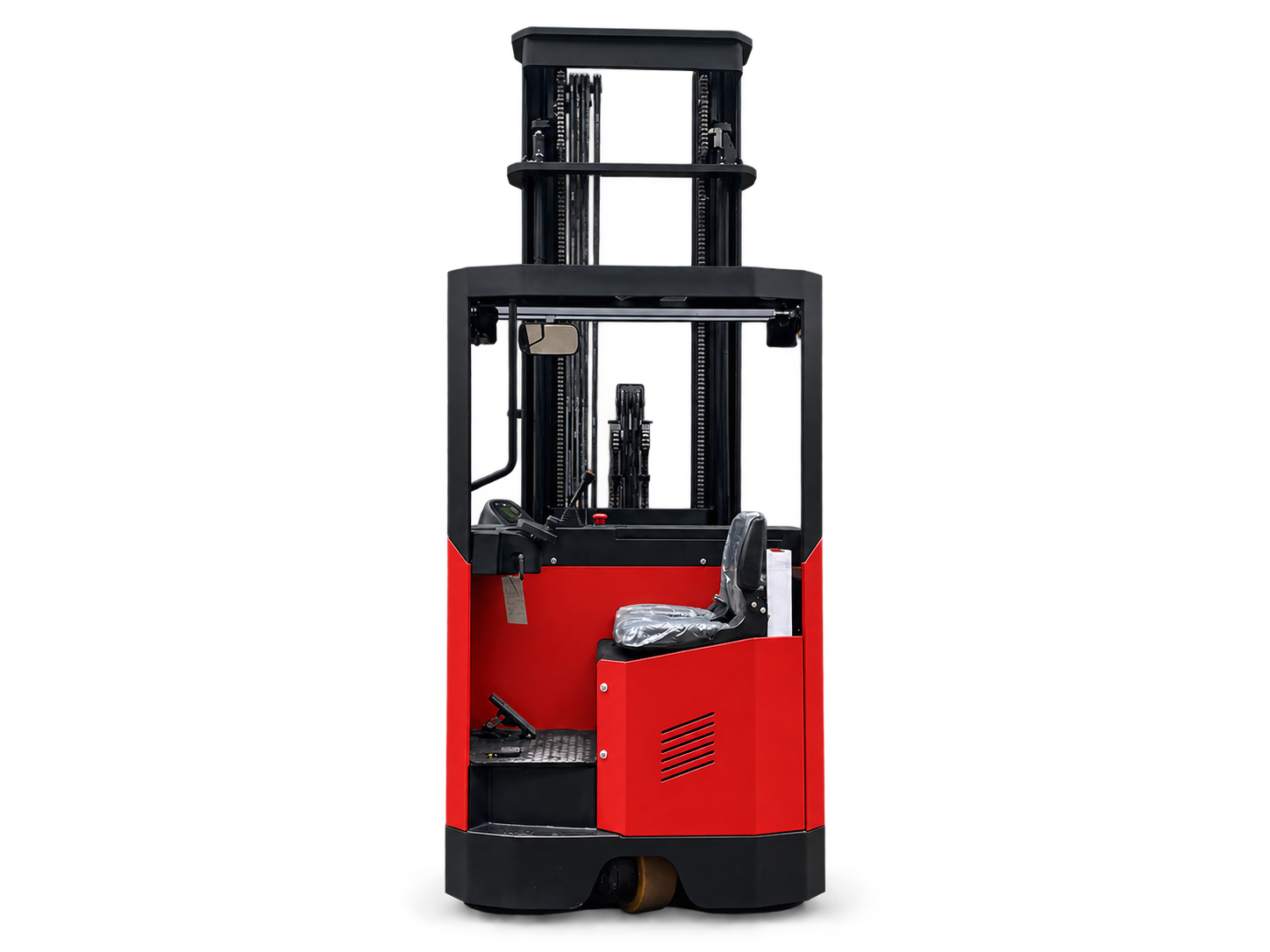

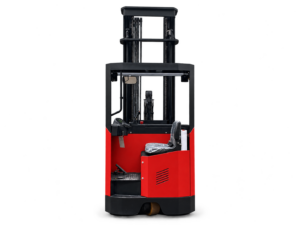

All-Shift Sit-Down Comfort
All-Shift Sit-Down Comfort
Ergonomic sit-down cabin reduces operator fatigue — essential for facilities running continuous 8-hour or multi-shift double-deep operations.
Double Deep Racking Access
Scissor-type extending forks reach the second-row pallet — one aisle serves four pallet rows, boosting storage density by up to 40%.
Watch the HT-CQDJ-H
Reference demonstration from the source product range. Confirm the supplied mast, battery and operator configuration in your quotation.
SPECIFICATIONS
1.6 Ton Sit-Down Double Deep Reach Truck
Specifications
HT-CQDJ-H — Model reference.
Metric units. Check each listed mast configuration.
| Specification | Unit | CQDJ16 (Seated) |
|---|---|---|
| Rated Load | kg | 1,600 |
| Max. Lift Height | mm | 6,000 |
| Free Lift Height | mm | 2,050 |
| Forward Reach Distance | mm | 1,000 |
| Min. Aisle Width (1200×1000 cross-fork) | mm | 3,085 |
| Min. Aisle Width (1200×800 along-fork) | mm | 3,150 |
| Battery | V / Ah | 48 / 400 |
| Drive Motor | kW | 6.5 (AC) |
| Overall Size (L×W) | mm | 2,705 × 1,520 |
| Vehicle Weight (incl. battery) | kg | 4,150 |
Get In Touch
Tell us what you need. Our team will reply with configuration, price and delivery details.
This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.
Your contact details help us reply to your enquiry.
AFTER-SALES & FAQ
Support After Delivery
Help with troubleshooting, parts identification and your order.
Parts Identification
Share your truck model, serial number and component details so we can check the required parts.
Warranty for Your Order
The warranty period, coverage and parts-support arrangements are confirmed in the quotation and order.
Frequently Asked Questions
How do I confirm the right model for my racking?
Send your load weight, load centre, pallet dimensions, rack height and clear aisle width. Huateng will confirm the suitable model and the capacity at your required height.
Is the advertised lift height included in every model?
Lift height and free lift depend on the selected model and mast. Use the specification table as a reference and confirm the complete configuration in the quotation.
What aisle width should I use for planning?
The stated minimum depends on pallet orientation and the truck configuration. Send the pallet size, aisle measurements and racking layout for a clearance check.
Can I specify the battery and charger?
Battery voltage and capacity differ by model. Confirm the battery type, shift requirements, site power supply and compatible charger before ordering.
Does this model suit double deep or VNA racking?
This double deep family uses a scissor reach mechanism for second-row pallet access. Confirm rack depth, pallet dimensions and capacity at reach before ordering.
How can I request a complete quotation?
Use the inquiry form below with your preferred model, capacity, lift height and destination. Include rack drawings and pallet dimensions when available.
