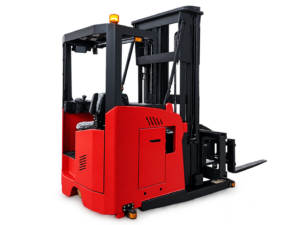

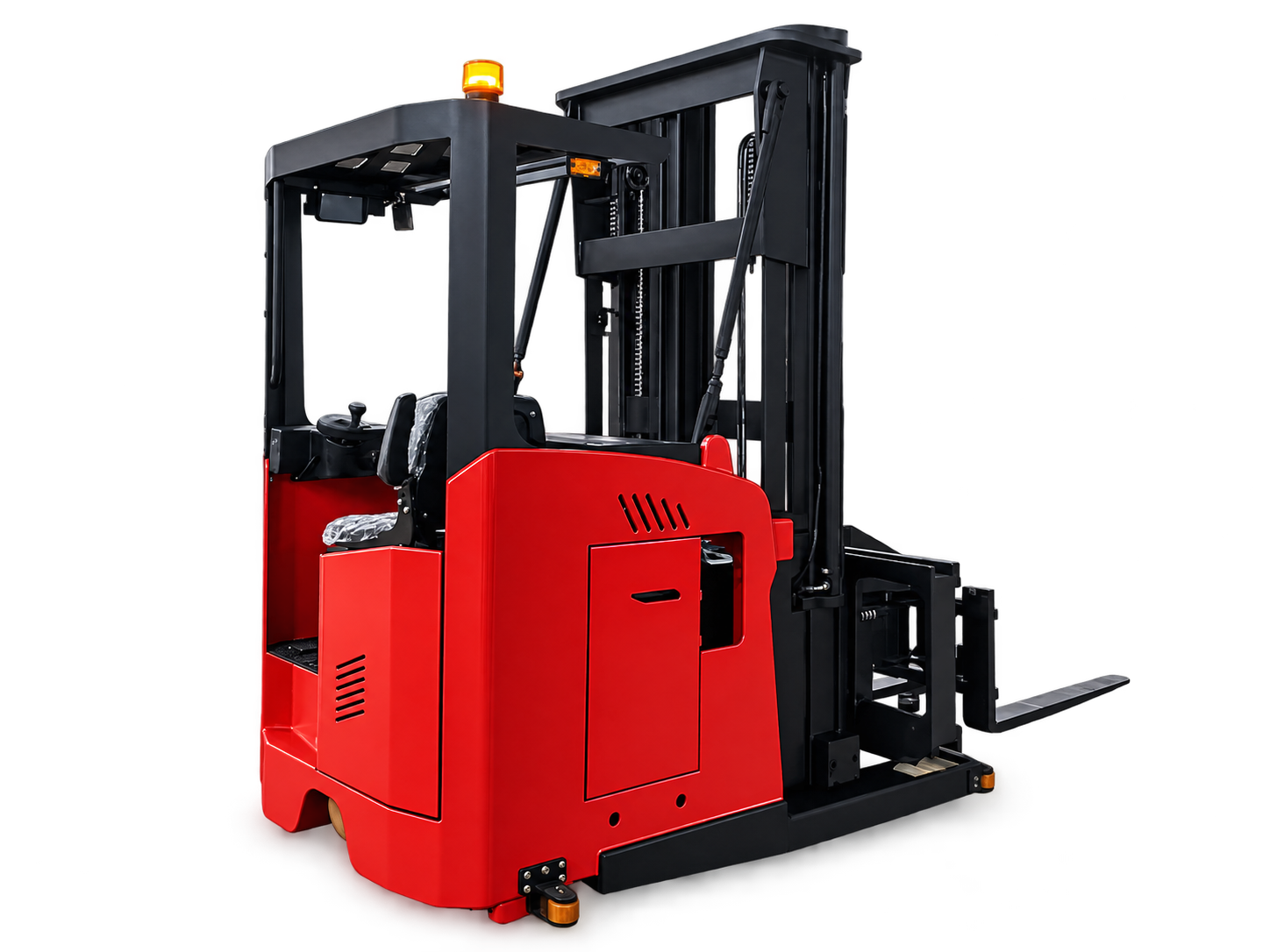

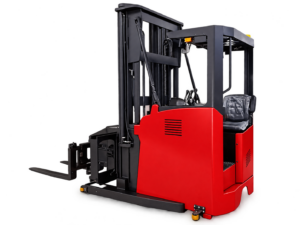

Model: HT-CSD-H
1.5 Ton Sit-Down VNA Turret Truck
Huateng HT-CSD-H — a 1.5 Ton sit-down turret truck with 180° fork rotation, lift height up to 9,000mm and a listed minimum stacking aisle of 1,620mm.
1.5 Ton
Rated capacity
1,620mm
Min. aisle width
9,000mm
Max. lift height
Sit-Down
Operator position
CONFIGURATION & PRICE
Match Your Reach Truck to Your Warehouse
Confirm your load, rack height, pallet dimensions and aisle width. Compare the selected mast, battery, reach mechanism and delivery terms in your quotation.
Huateng HT-CSD-H is a sit-down turret truck built for very narrow aisle (VNA) warehouses where operators run full-day shifts at extreme heights. With 180° fork rotation, aisles as narrow as 1,620mm, and lift heights up to 9,000mm, it handles high-bay racking up to 7 tiers without ever turning the truck body.
The sit-down cabin with ergonomic controls reduces fatigue across 8-hour and multi-shift operations — a critical advantage over stand-up models when operators work continuously at height. Powered by a 48V system with 6.5 kW AC drive motor and CURTIS controllers, it delivers smooth positioning and reliable performance in cold storage, high-density distribution centers, and automated VNA facilities.

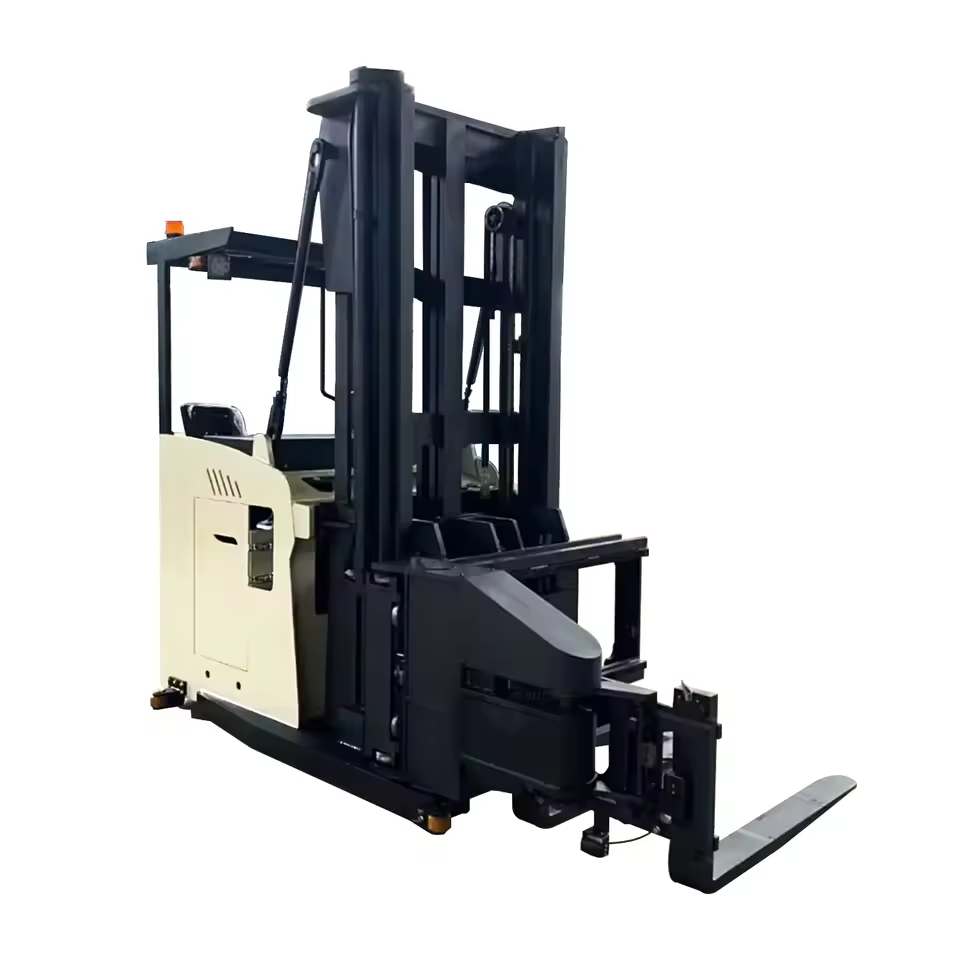

01 / Handling
Auto High-Lift Deceleration
Auto High-Lift Deceleration
Automatically reduces travel and fork speed at height — protecting operators, loads, and racking structures.
Ultra-Narrow 1,620mm Aisle Operation
Works in aisles barely wider than the pallet itself — maximize pallet positions per warehouse footprint.
02 / Lift & Control
9,000mm Lift Height
9,000mm Lift Height
Reaches high-bay racking up to 9 meters, covering 6–7 tier storage systems in a single truck.
180° Fork Rotation
Turret head picks and places on both sides of the aisle without repositioning the truck — doubling throughput per aisle pass.
03 / Application
Guide Rail Compatible
Guide Rail Compatible
Optional guide rail system centers the truck automatically in the aisle — reducing rack damage and enabling precise positioning at extreme heights.
Watch the HT-CSD-H
Stand-Up turret truck reference demonstration from the source product range. This sit-down model shares the same family reference video; confirm the sit-down configuration in your quotation.
SPECIFICATIONS
1.5 Ton Sit-Down VNA Turret Truck
Specifications
HT-CSD-H — Model reference.
Metric units. Check each listed mast configuration.
| Specification | Unit | CSD15 (Seated) |
|---|---|---|
| Rated Load | kg | 1,500 |
| Max. Lift Height | mm | 9,000 |
| Free Lift Height | mm | 3,115 |
| Min. Stacking Aisle Width | mm | 1,620 |
| Battery | V / Ah | 48 / 420 |
| Drive Motor | kW | 6.5 (AC) |
| Overall Size (L×W) | mm | 3,030 × 1,575 |
| Vehicle Weight (incl. battery) | kg | 7,300 |
Get In Touch
Tell us what you need. Our team will reply with configuration, price and delivery details.
This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.
Your contact details help us reply to your enquiry.
AFTER-SALES & FAQ
Support After Delivery
Help with troubleshooting, parts identification and your order.
Parts Identification
Share your truck model, serial number and component details so we can check the required parts.
Warranty for Your Order
The warranty period, coverage and parts-support arrangements are confirmed in the quotation and order.
Frequently Asked Questions
How do I confirm the right model for my racking?
Send your load weight, load centre, pallet dimensions, rack height and clear aisle width. Huateng will confirm the suitable model and the capacity at your required height.
Is the advertised lift height included in every model?
Lift height and free lift depend on the selected model and mast. Use the specification table as a reference and confirm the complete configuration in the quotation.
What aisle width should I use for planning?
The stated minimum depends on pallet orientation and the truck configuration. Send the pallet size, aisle measurements and racking layout for a clearance check.
Can I specify the battery and charger?
Battery voltage and capacity differ by model. Confirm the battery type, shift requirements, site power supply and compatible charger before ordering.
Does this model suit double deep or VNA racking?
This turret family uses rotating forks for very narrow aisle racking. Confirm the aisle layout, floor condition and any guide rail requirements.
How can I request a complete quotation?
Use the inquiry form below with your preferred model, capacity, lift height and destination. Include rack drawings and pallet dimensions when available.
