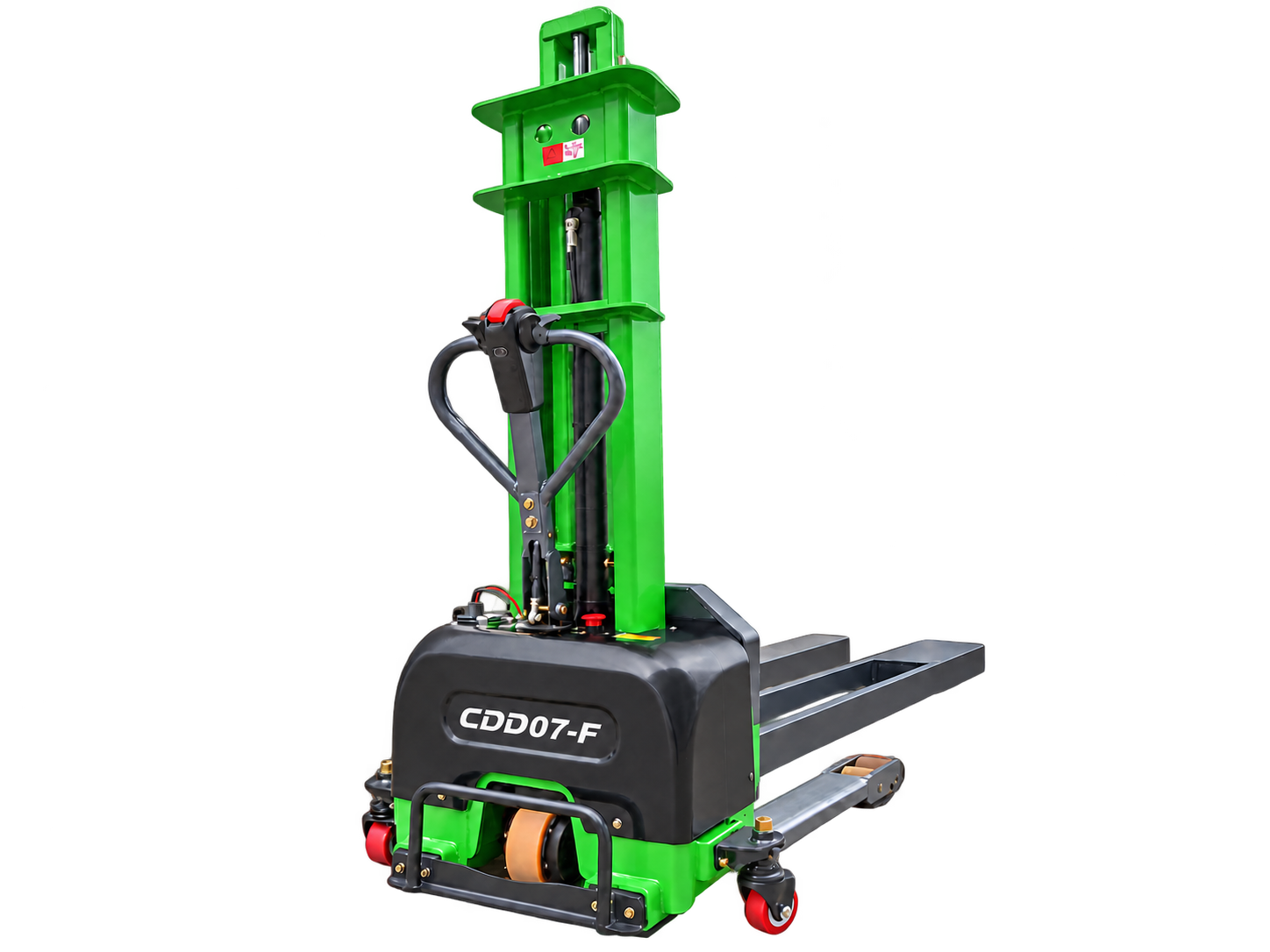

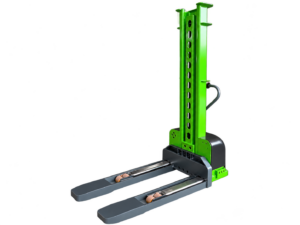

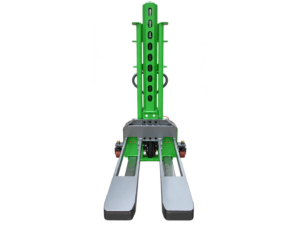

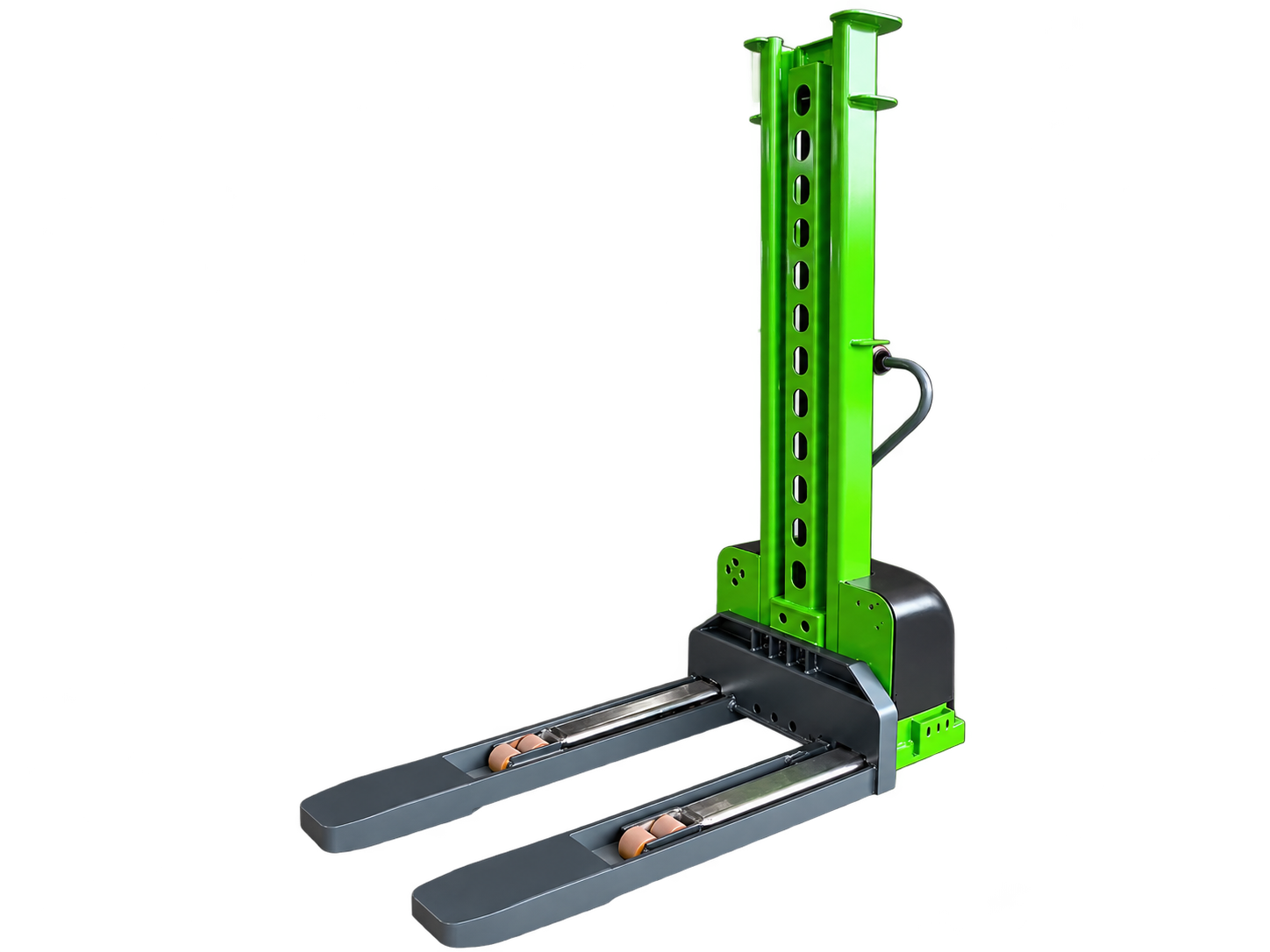

Model: HT-CDD07-F
700kg Fully Electric Self-Loading Stacker
The HT-CDD07-F combines a 700 kg nominal rating with powered travel and electric lifting. Its self-loading mechanism lets the stacker travel with a suitable delivery vehicle. Review the operating sequence, pallet fit and vehicle dimensions before selecting the configuration.
700 kg
Rated Capacity
Full Electric
Travel Type
800–1,600 mm
Fork Height Options
48 V / 15 Ah lithium
Standard Battery
OPERATION & VEHICLE FIT
See How HT-CDD07-F Fits Your Delivery Task
Review the operating method, vehicle dimensions and load chart. Use the three references below to discuss the right configuration for your pallet and vehicle.
01 / OPERATION
Powered Travel and Electric Lift
HT-CDD07-F combines a 700 kg nominal rating with powered travel and electric lifting. Its self-loading mechanism brings the machine into a suitable vehicle. Support-leg handling and vehicle loading still require an operator.
02 / VEHICLE & PALLET
Check Fork and Vehicle Dimensions
Fork length is 1,195 mm; outside fork widths are 565 / 685 mm. Send pallet entry dimensions, bed height, clear door width and height, and cargo-floor space. Check the machine and cargo against available vehicle payload.
03 / CAPACITY & POWER
Match the 700 kg Rating to Your Load
Check the load chart for your fork height and load center. Standard battery: 48 V / 15 Ah lithium. A 48 V / 25 Ah lead-acid alternative is available. Specify your destination charging supply.

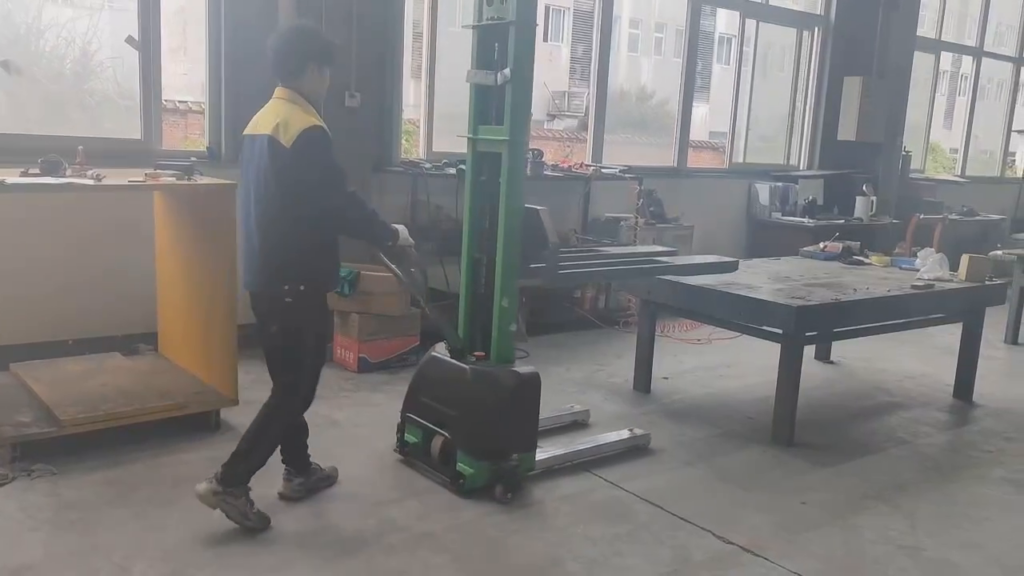

Watch the Self-Loading Sequence
Fully electric series demonstration of travel, lifting and vehicle loading. This is a series reference, not a rated-load test of this model; operator handling remains part of the loading sequence.
TECHNICAL DATA
HT-CDD07-F
Specifications
Compare the nominal rating, fork dimensions and lift options. Use the capacity chart and selected mast dimensions to check your application.
| Model | HT-CDD07-F |
|---|---|
| Drive type | Electric travel and electric lifting |
| Rated capacity | 700 kg |
| Load center | 400 mm |
| Maximum fork lift height options | 800 / 900 / 1,000 / 1,100 / 1,200 / 1,300 / 1,500 / 1,600 mm |
| Fork length | 1,195 mm |
| Outside fork width | 565 / 685 mm |
| Overall length | 1,603 mm |
| Overall width | 852 mm |
| Closed mast height | 1,155–1,955 mm, depending on lift height |
| Lift motor | 0.8 kW |
| Standard battery | 48 V / 15 Ah lithium-ion |
| Source reference net weight (including battery) | 266–300 kg, source lithium-battery configuration; varies with mast height |
| Drive motor | 0.8 kW |
| Travel speed (creep / full speed) | 1 / 3.5 km/h |
| Gradeability (loaded / unloaded) | 5 / 10% |
| Battery options | 48 V / 25 Ah maintenance-free lead-acid; 48 V / 30 Ah lithium-ion; 48 V / 30 Ah quick-change lithium-ion |
The nominal rating applies at a 400 mm load center for the applicable lift configuration. The 1500 and 1600 mm fork-height options are derated; request the load chart for your actual pallet and height.
Fork lift height is not the vehicle loading height. Check the vehicle bed, clear doorway, support edge, cargo space and available payload before selecting a configuration.
Reference dimensions and weight depend on the selected mast and battery. Request the configuration drawing and confirmed net weight for your vehicle-payload check.
Request Your HT-CDD07-F Quote
Tell us your load and pallet size, vehicle bed height, cargo-space and door dimensions, required lift height, quantity and delivery destination. Our team will help you check vehicle fit and choose the right configuration.
This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.
We use your contact details to respond to this inquiry.
SUPPORT & BUYING QUESTIONS
Plan Your Purchase and Parts Support
Use the model and serial number to discuss parts, documents and support for your order.
Identify the Part You Need
Send the model, serial number and clear photos of the component. Ask us to check the part reference and supply terms.
Confirm Support in Your Order
Request the operating documents, warranty coverage and parts-support terms with your quotation.
Need Help Choosing?
Share your vehicle and pallet details to discuss the next step.
Ask About My ApplicationSelf-Loading Stacker Buying Questions
How does HT-CDD07-F load into a vehicle?
After loading the goods, the stacker uses its lifting mechanism to bring the machine into a suitable vehicle. An operator positions and handles the machine through the loading sequence. Review the vehicle support arrangement and operating instructions for the supplied configuration.
What does semi-electric or fully electric mean?
Semi-electric models use manual travel and electric lifting. Fully electric models use powered travel and electric lifting. Fully electric does not mean a fully automatic vehicle-loading cycle; operator handling is still required.
Is the rated capacity available at every fork height?
No. The nominal rating is based on a 400 mm load center and the applicable lift configuration. The 1500 and 1600 mm configurations have lower permitted loads; a longer load center also reduces capacity. Request the exact load chart for your pallet and fork height.

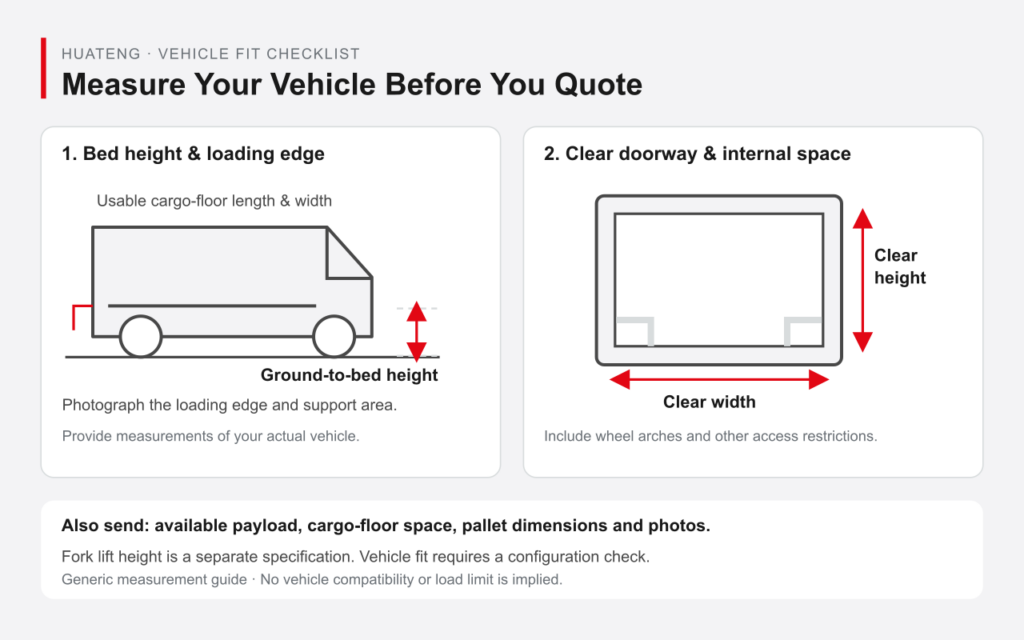

What should I measure on my vehicle?
Send the bed height, clear doorway width and height, cargo-floor dimensions and photos of the loading edge. Also provide available payload and pallet measurements. The published fork height is not a guarantee of vehicle compatibility.

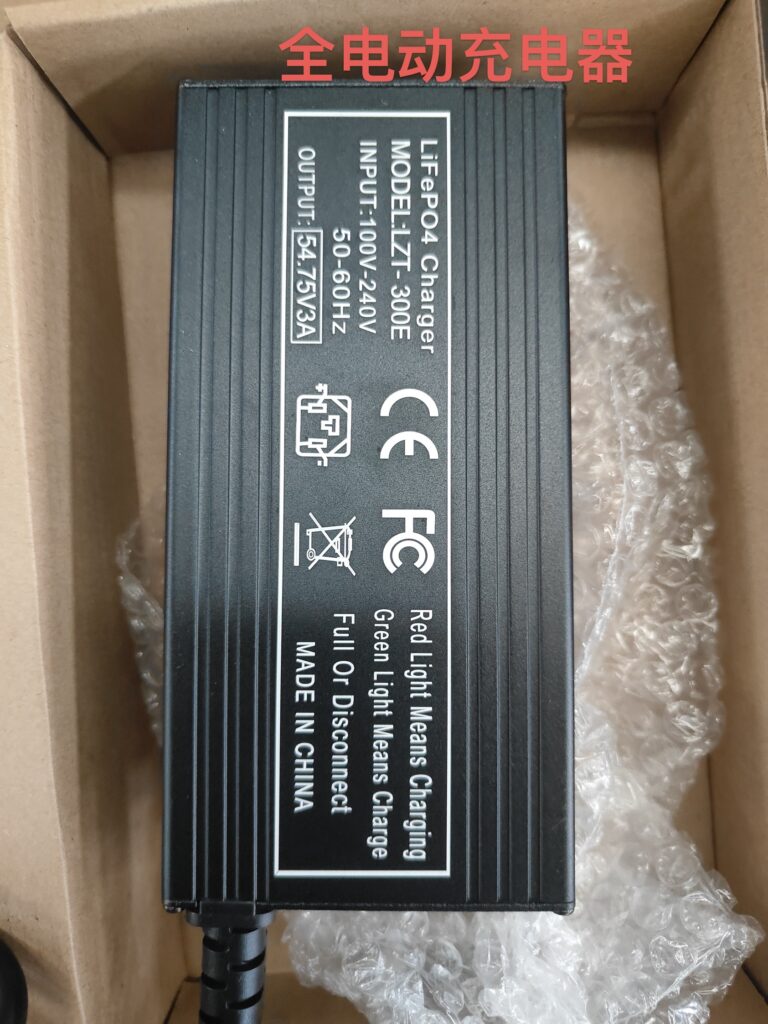

Which battery and charger should I order?
The listed standard is 12 V / 45 Ah maintenance-free lead-acid for semi-electric models and 48 V / 15 Ah lithium for fully electric models. A 48 V / 25 Ah lead-acid alternative is available for the fully electric series. Specify destination mains supply and plug type when requesting a quote.
What do you need to quote HT-CDD07-F?
Provide the preferred model or required capacity, pallet and vehicle measurements, quantity, charging supply and destination country plus port or delivery city. Ask for the selected configuration, machine price, packing, shipping, documents and support terms in the quotation.
