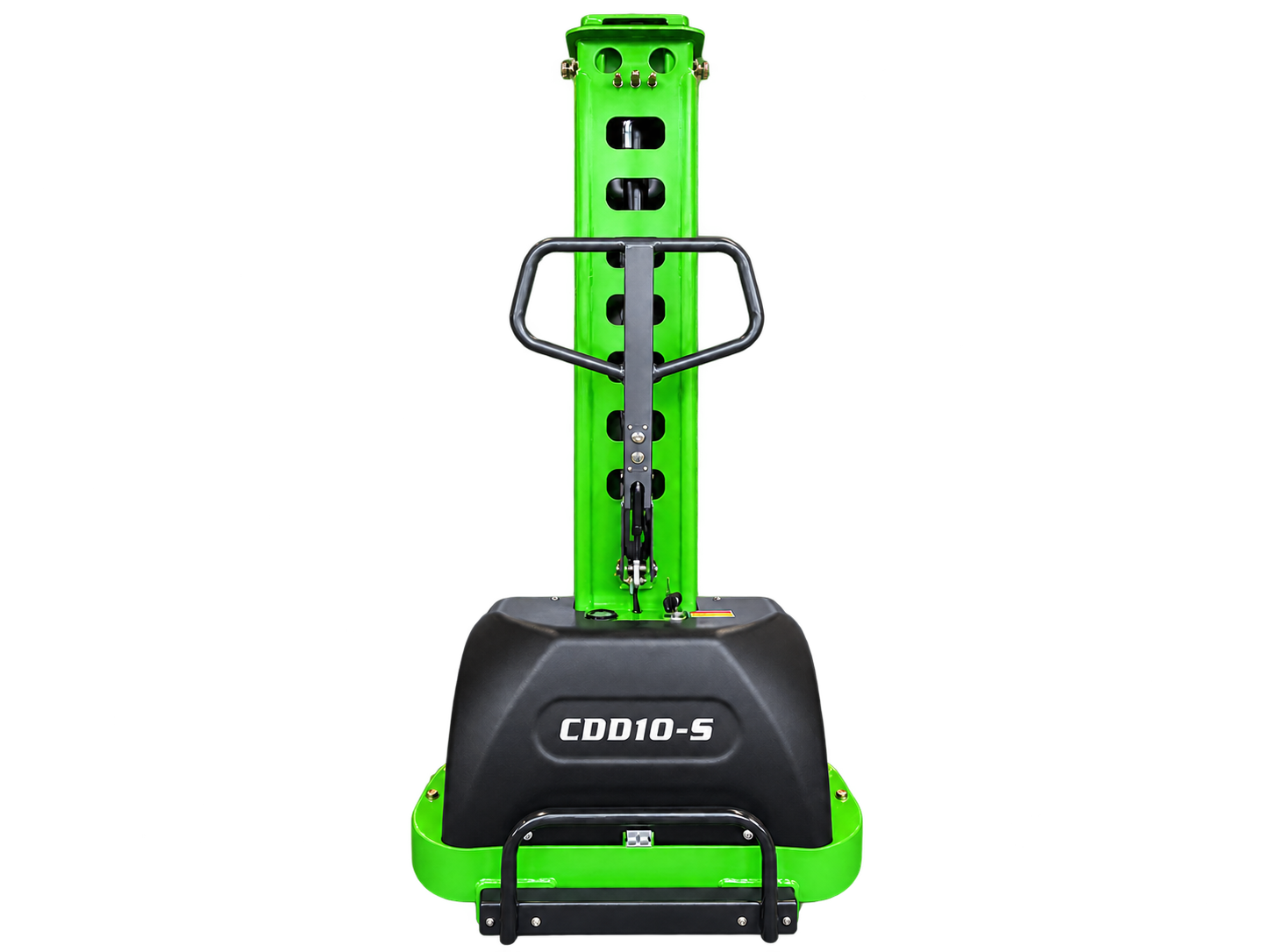

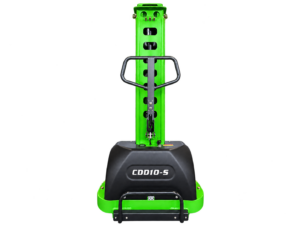

Model: HT-CDD10-S
1000kg Semi-Electric Self-Loading Stacker
Choose the HT-CDD10-S for a 1000 kg nominal rating with manual travel and electric lifting. The self-loading mechanism allows the stacker to travel in a suitable vehicle. Check the load chart, pallet access and vehicle payload when choosing your configuration.
1000 kg
Rated Capacity
Semi-Electric
Travel Type
800–1,600 mm
Fork Height Options
12 V / 45 Ah maintenance-free lead-acid
Standard Battery
OPERATION & VEHICLE FIT
See How HT-CDD10-S Fits Your Delivery Task
Review the operating method, vehicle dimensions and load chart. Use the three references below to discuss the right configuration for your pallet and vehicle.
01 / OPERATION
Manual Travel, Electric Lift
HT-CDD10-S combines a 1000 kg nominal rating with manual movement and electric lifting. Its lifting mechanism brings the stacker into a suitable vehicle. Operator handling remains part of the loading sequence.
02 / VEHICLE & PALLET
Check Fork and Vehicle Dimensions
Fork length is 1,150 mm; outside fork widths are 565 / 685 mm. Send pallet entry dimensions, bed height, clear door width and height, and cargo-floor space. Check the machine and cargo against available vehicle payload.
03 / CAPACITY & POWER
Match the 1000 kg Rating to Your Load
Check the load chart for your fork height and load center. Standard battery: 12 V / 45 Ah maintenance-free lead-acid. Specify destination mains supply and plug type for the charger.
Watch the Self-Loading Sequence
Semi-electric series demonstration: manual travel, electric lifting and the vehicle-loading sequence. The truck and stacker shown illustrate the operating method; vehicle fit and supplied configuration must be checked for your order.
TECHNICAL DATA
HT-CDD10-S
Specifications
Compare the nominal rating, fork dimensions and lift options. Use the capacity chart and selected mast dimensions to check your application.
| Model | HT-CDD10-S |
|---|---|
| Drive type | Manual travel and electric lifting |
| Rated capacity | 1,000 kg |
| Load center | 400 mm |
| Maximum fork lift height options | 800 / 900 / 1,000 / 1,100 / 1,200 / 1,300 / 1,500 / 1,600 mm |
| Fork length | 1,150 mm |
| Outside fork width | 565 / 685 mm |
| Overall length | 1,544 mm |
| Overall width | 835 / 955 mm |
| Closed mast height | 1,166–1,966 mm, depending on lift height |
| Lift motor | 1.6 kW |
| Standard battery | 12 V / 45 Ah maintenance-free lead-acid |
| Source reference net weight (including battery) | 285–324 kg, source 12 V / 52 Ah configuration; varies with mast height |
The nominal rating applies at a 400 mm load center for the applicable lift configuration. The 1500 and 1600 mm fork-height options are derated; request the load chart for your actual pallet and height.
Fork lift height is not the vehicle loading height. Check the vehicle bed, clear doorway, support edge, cargo space and available payload before selecting a configuration.
The reference weight range comes from the source-table battery configuration. Request the net weight for the quoted 12 V / 45 Ah configuration before checking vehicle payload.
Request Your HT-CDD10-S Quote
Tell us your load and pallet size, vehicle bed height, cargo-space and door dimensions, required lift height, quantity and delivery destination. Our team will help you check vehicle fit and choose the right configuration.
This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.
We use your contact details to respond to this inquiry.
SUPPORT & BUYING QUESTIONS
Plan Your Purchase and Parts Support
Use the model and serial number to discuss parts, documents and support for your order.
Identify the Part You Need
Send the model, serial number and clear photos of the component. Ask us to check the part reference and supply terms.
Confirm Support in Your Order
Request the operating documents, warranty coverage and parts-support terms with your quotation.
Need Help Choosing?
Share your vehicle and pallet details to discuss the next step.
Ask About My ApplicationSelf-Loading Stacker Buying Questions
How does HT-CDD10-S load into a vehicle?
After loading the goods, the stacker uses its lifting mechanism to bring the machine into a suitable vehicle. An operator positions and handles the machine through the loading sequence. Review the vehicle support arrangement and operating instructions for the supplied configuration.
What does semi-electric or fully electric mean?
Semi-electric models use manual travel and electric lifting. Fully electric models use powered travel and electric lifting. Fully electric does not mean a fully automatic vehicle-loading cycle; operator handling is still required.
Is the rated capacity available at every fork height?
No. The nominal rating is based on a 400 mm load center and the applicable lift configuration. The 1500 and 1600 mm configurations have lower permitted loads; a longer load center also reduces capacity. Request the exact load chart for your pallet and fork height.
What should I measure on my vehicle?
Send the bed height, clear doorway width and height, cargo-floor dimensions and photos of the loading edge. Also provide available payload and pallet measurements. The published fork height is not a guarantee of vehicle compatibility.
Which battery and charger should I order?
The listed standard is 12 V / 45 Ah maintenance-free lead-acid for semi-electric models and 48 V / 15 Ah lithium for fully electric models. A 48 V / 25 Ah lead-acid alternative is available for the fully electric series. Specify destination mains supply and plug type when requesting a quote.
What do you need to quote HT-CDD10-S?
Provide the preferred model or required capacity, pallet and vehicle measurements, quantity, charging supply and destination country plus port or delivery city. Ask for the selected configuration, machine price, packing, shipping, documents and support terms in the quotation.
