HUATENG · HT-50

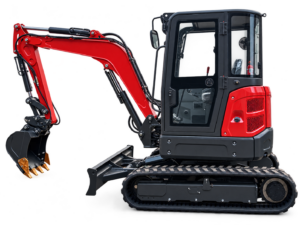

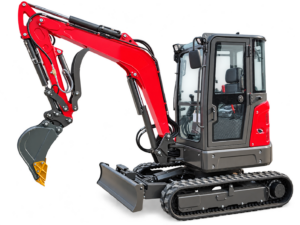

HT-50 5 Ton Mini Excavator
HUATENG HT50 is a 5 Ton mini excavator for trenching, foundations and general site preparation. Choose the engine and working tools for your project, then request an itemized equipment price and shipping quotation for your destination.
5 Ton
Product Class
1720 mm
Chassis Width
3208 mm
Digging Depth
Kubota D1703
Engine
CHOOSE YOUR EQUIPMENT
Configuration for Your Work
Choose the controls, engine package and working tools around your site requirements. Request an itemized equipment list so you can compare what is included in the machine price.

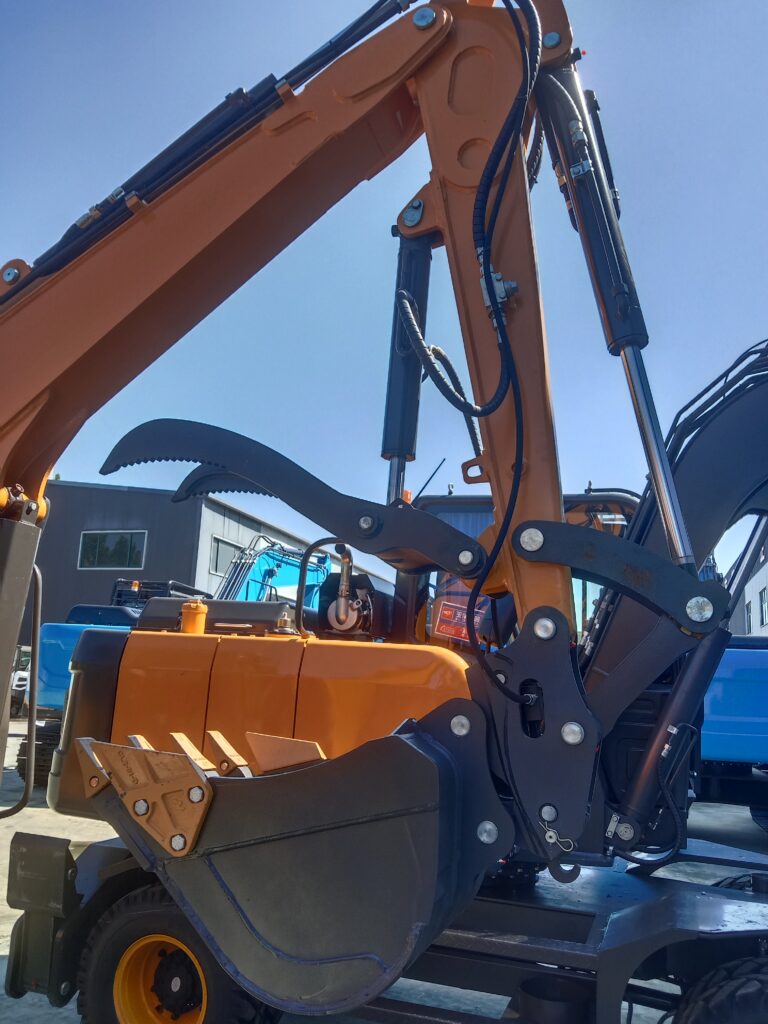

Hydraulic Thumb
Thumb and Hydraulic Cylinder
The pictured thumb adds a gripping tool beside the bucket. Ask for its hydraulic connection, compatible tool setup and separate price in your HT-50 quotation.

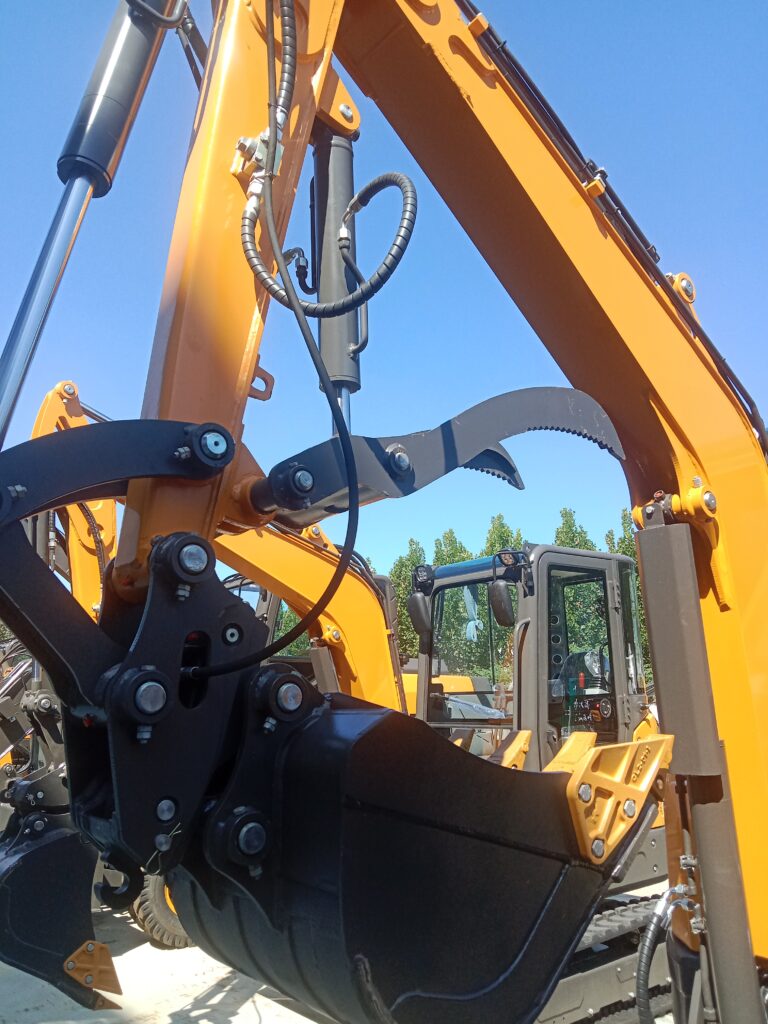

Bucket Linkage
Bucket and Linkage Detail
The close view shows the bucket, linkage pins and thumb assembly. Confirm the bucket size, mounting arrangement and tool package needed for your work.

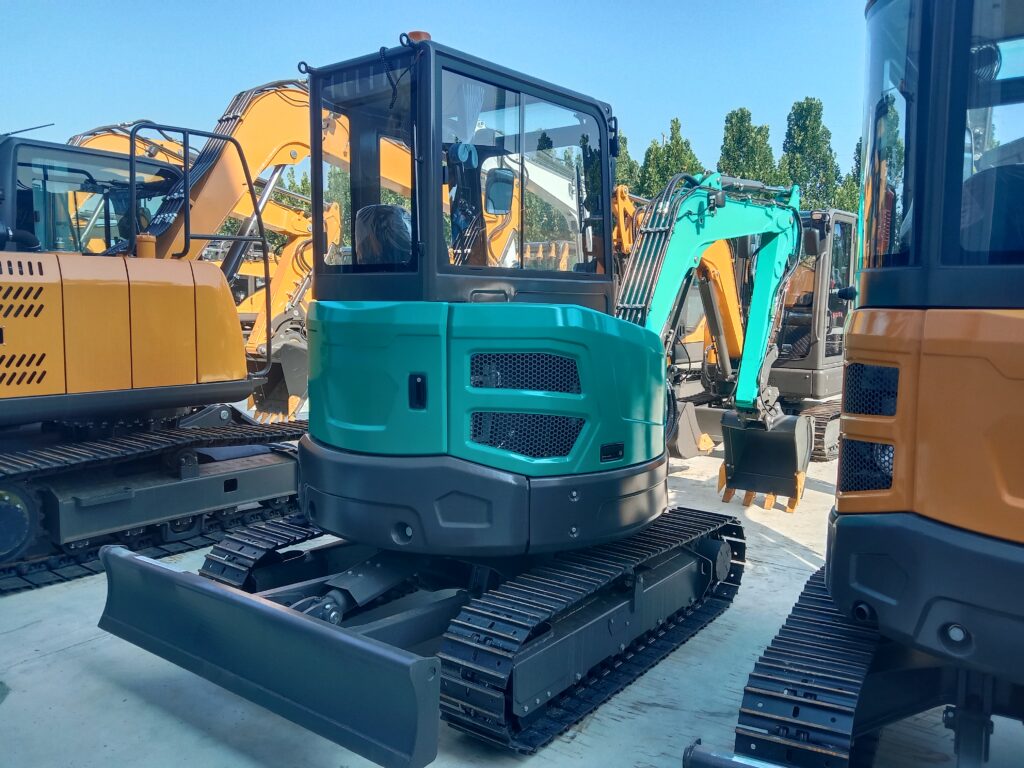

Steel Tracks
Steel Track Configuration
This configuration view shows steel tracks and a front blade. Discuss ground conditions, track choice and transport arrangements when requesting your HT-50 price.
SPECIFICATIONS
Technical
Specifications
HT-50 configuration data.
Dimensions in metric units.
| Specification | Value |
|---|---|
| Product class | 5 Ton |
| Engine | KUBOTA D1703 |
| Power | 18.2 kW |
| Overall length | 4195 mm |
| Overall width | 1720 mm |
| Overall height | 2524 mm |
| Dozer blade height | 330 mm |
| Track shoe width | 300 mm |
| Track gauge | 1420 mm |
| Track ground contact length | 1670 mm |
| Minimum ground clearance | 298 mm |
| Tail radius | 870 mm |
| Maximum digging height | 4800 mm |
| Maximum dumping height | 3406 mm |
| Maximum digging depth | 3208 mm |
| Maximum vertical digging depth | 2957 mm |
| Maximum digging radius | 5481 mm |
| Tail turning radius | 870 mm |
| Blade maximum lift height | 364 mm |
| Blade maximum cutting depth | 384 mm |
| Boom swing angle (left) | 55 ° |
| Boom swing angle (right) | 65° |
Get Price & Shipping
Send your model, quantity, preferred equipment and destination. Request an itemized machine price, included tools and shipping scope.
This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.
Your contact details help us reply to your enquiry.
AFTER-SALES & FAQ
Plan Your After-Sales Support
Include manuals, warranty terms and parts identification in your purchase discussion.
Manuals & Parts Identification
Request first-start and maintenance guidance. Keep the model, serial number, engine details and component photos for parts enquiries.
Written Warranty Terms
Agree the warranty period, coverage, exclusions and parts arrangements for the supplied configuration before ordering.
Need Help Choosing?
Share the job, access limits and tools you need so the equipment can be checked for your enquiry.
Discuss Your RequirementsFrequently Asked Questions
What is included in the HT-50 price quotation?
Request the HT-50 machine configuration, included bucket, requested tools, paid options and packing as separate line items. Add quantity and the delivery destination so the equipment price and shipping scope are clear.
What does the 5 ton designation mean?
5 Ton identifies the product class. Operating weight is confirmed separately for the quoted machine, including its selected equipment and measurement basis. Packed shipping weight is a separate figure.
Which tools and configuration should I choose for the HT-50?
Specify the digging range, bucket width and attachments required for the project. Include the boom-swing arrangement, blade clearance, linkage and hydraulic connections with the complete machine and operator configuration.
Which engine and destination documents should I request?
The reference engine configuration is Kubota D1703. Request the installed model and rated power, then agree the invoice, packing information, manuals and destination-specific machine or engine documents for the supplied version.
Does shipping cover the port or my address, and which dates apply?
Provide the named port or delivery address. Ask which freight, customs, taxes, port fees, onward delivery and unloading costs are included. Request separate production-ready, planned departure and estimated arrival dates; these are different milestones.
What warranty and parts support come with the HT-50?
Agree the warranty period, coverage, exclusions and parts-support terms in writing. Request first-start and maintenance guidance for the supplied configuration. Keep the model, serial number and component photos for parts identification.
