HUATENG · HT-12

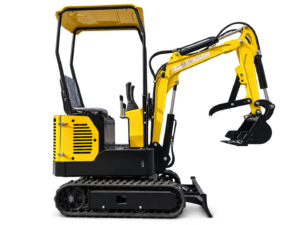

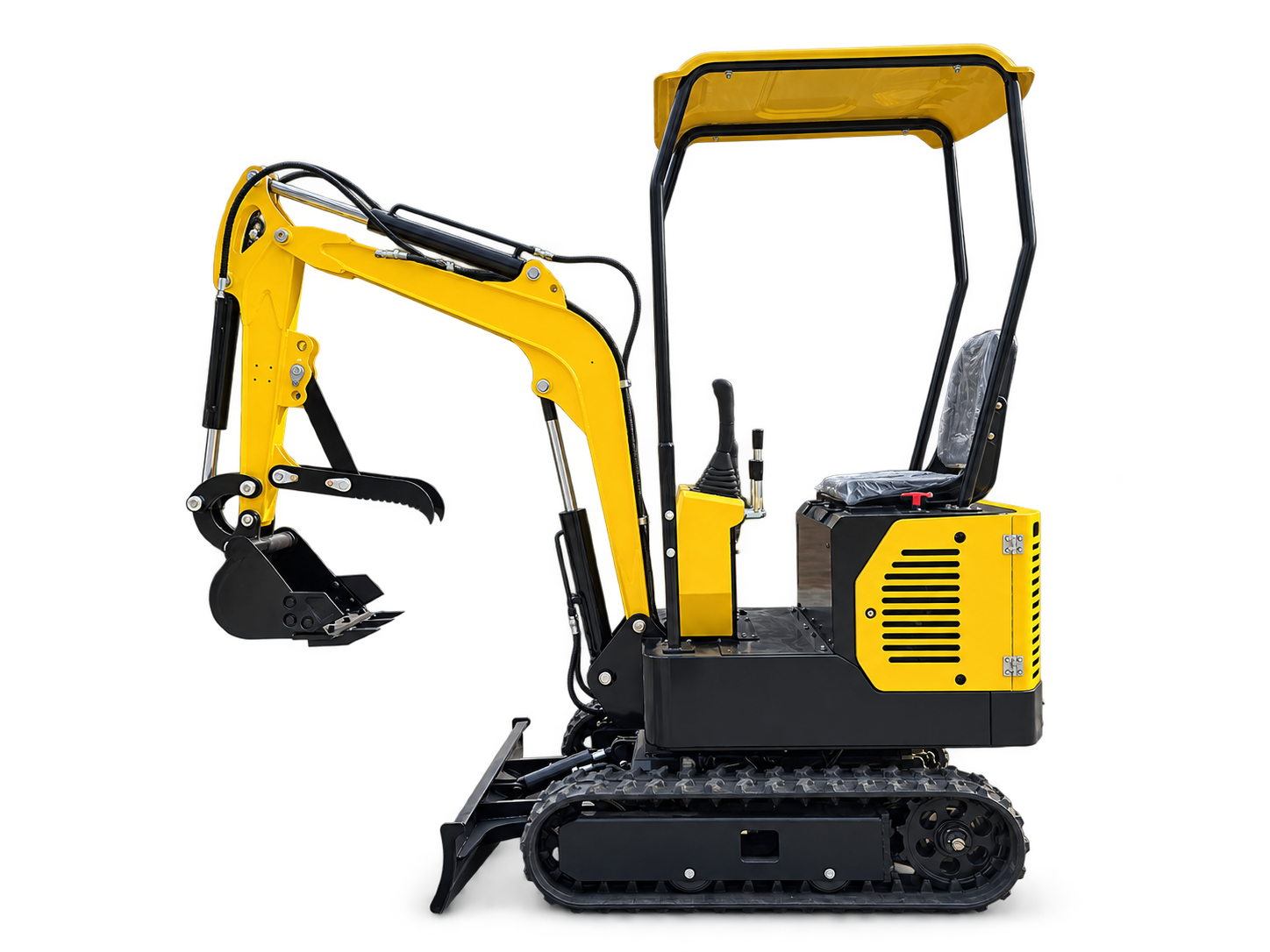

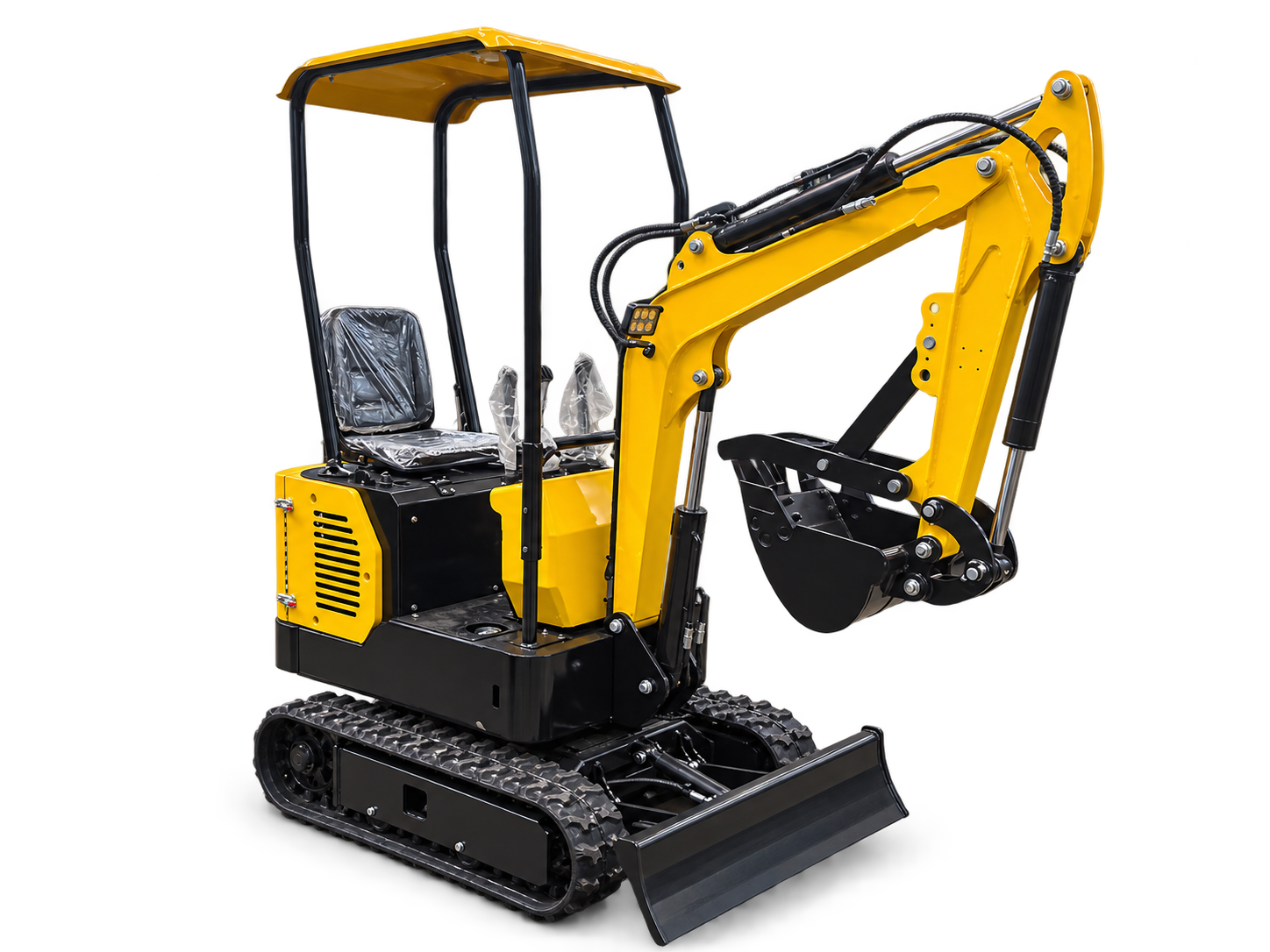

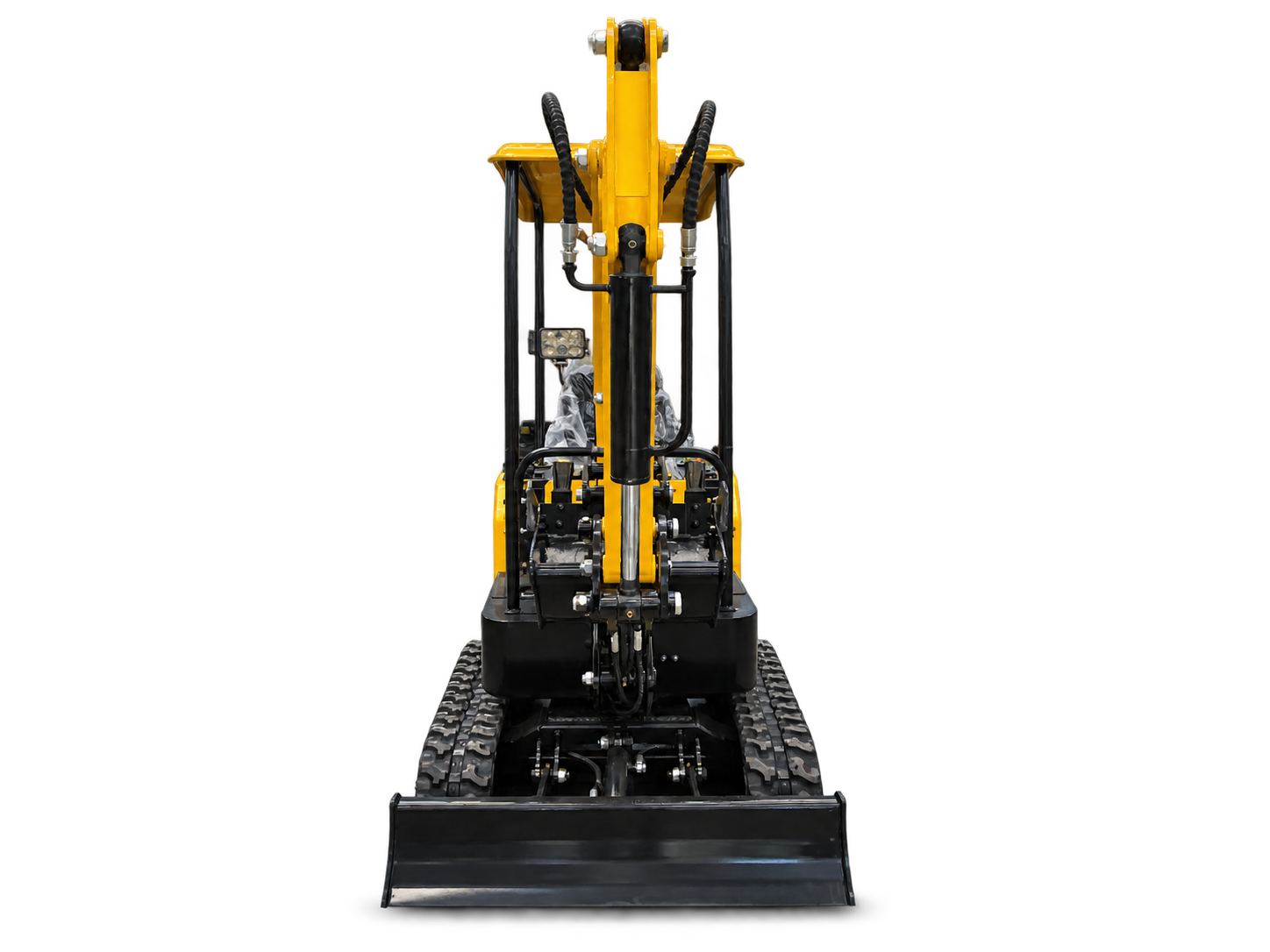

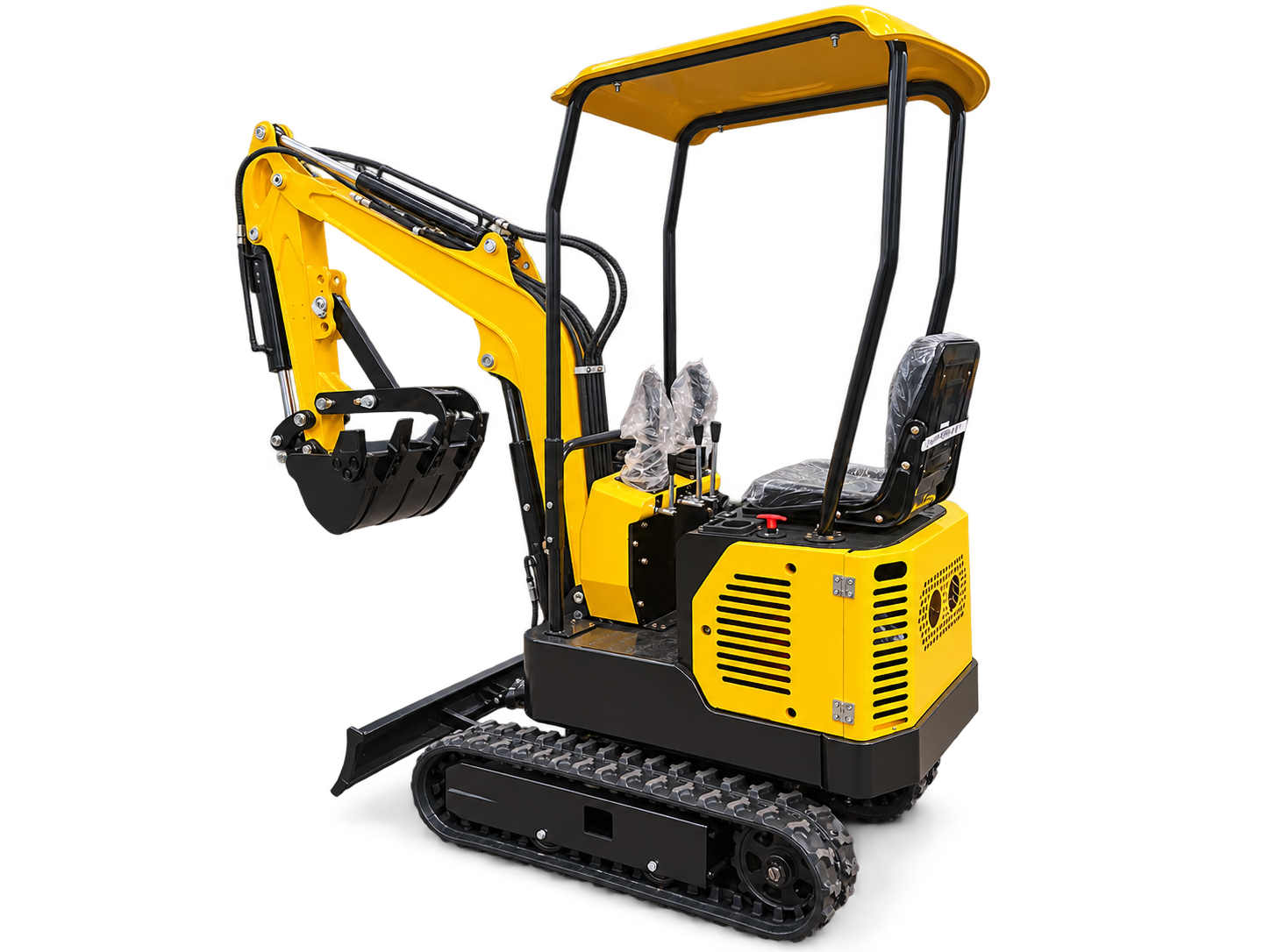

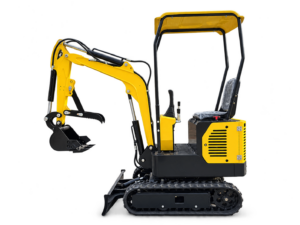

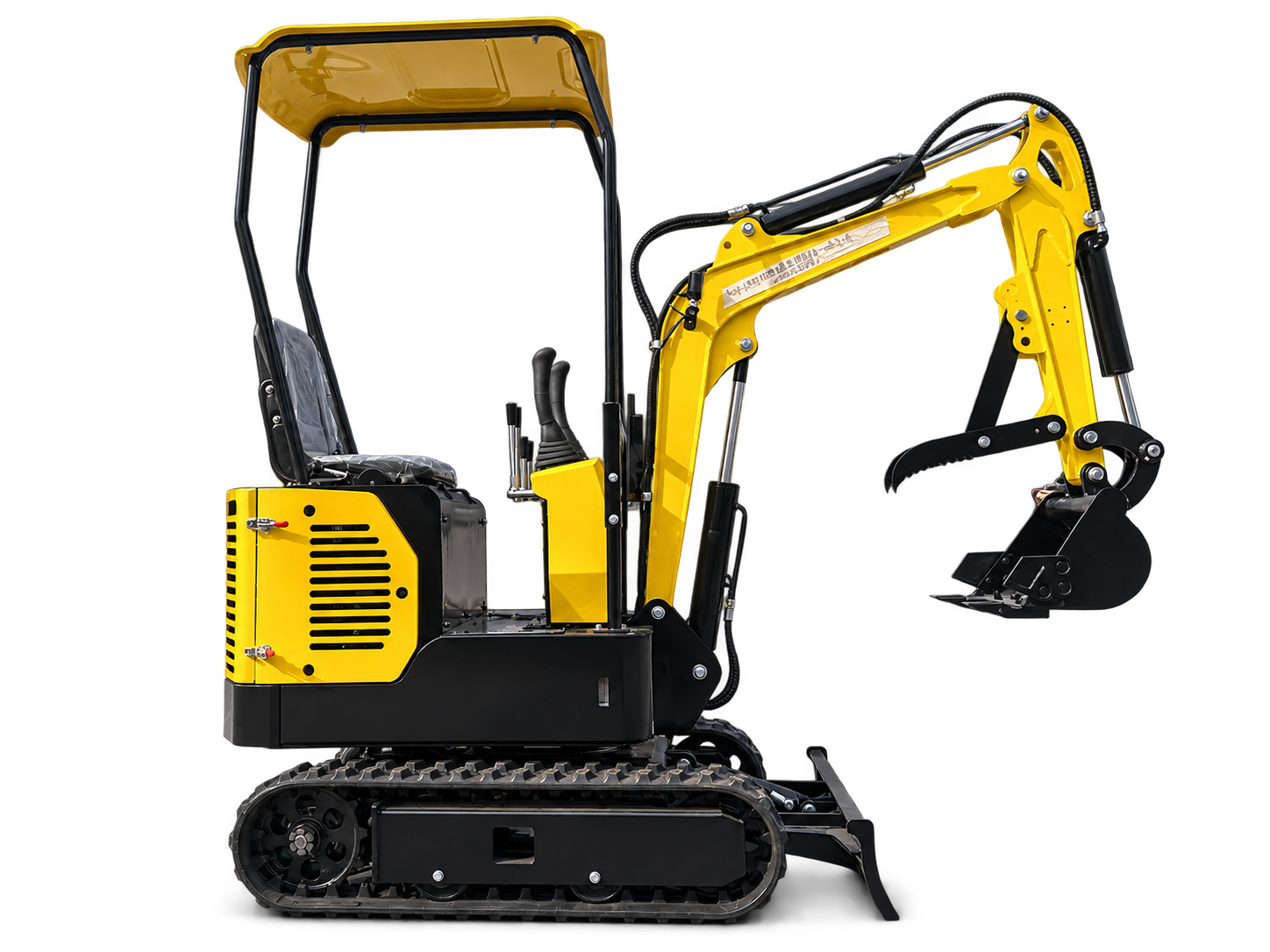

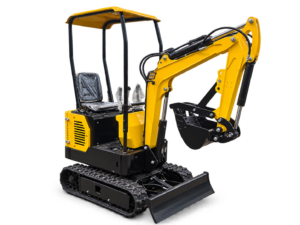

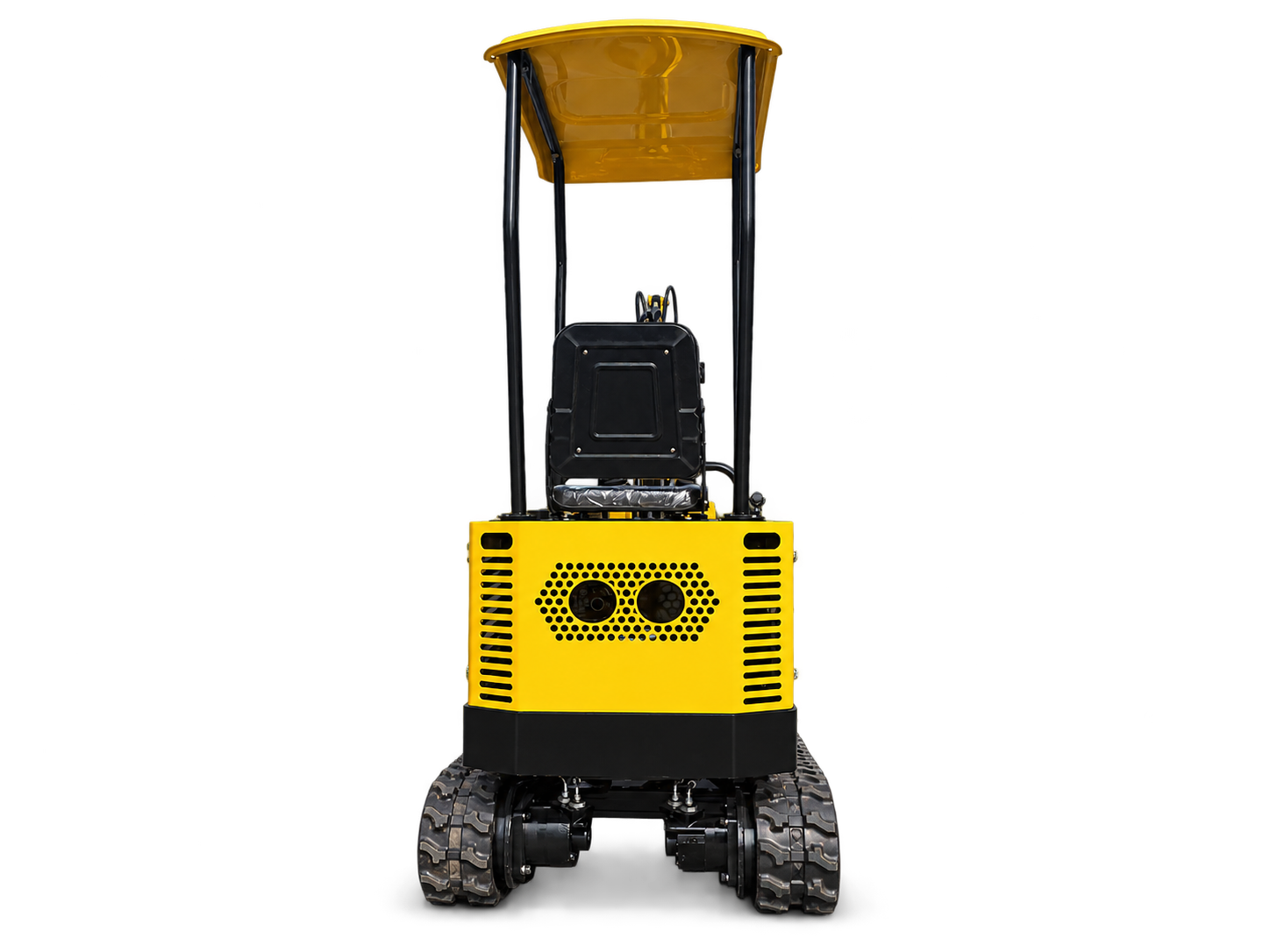

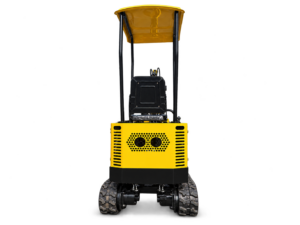

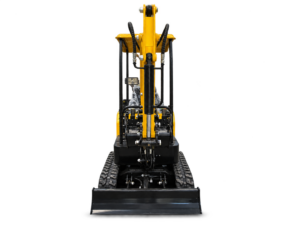

HT-12 1.2 Ton Mini Excavator
HUATENG HT12 is a 1.2 Ton mini excavator for landscaping, utility trenches and work around buildings. Choose the engine and working tools for your project, then request an itemized equipment price and shipping quotation for your destination.
1.2 Ton
Product Class
1000 mm
Chassis Width
1700 mm
Digging Depth
RATO
Engine
CHOOSE YOUR EQUIPMENT
Configuration for Your Work
Choose the controls, engine package and working tools around your site requirements. Request an itemized equipment list so you can compare what is included in the machine price.

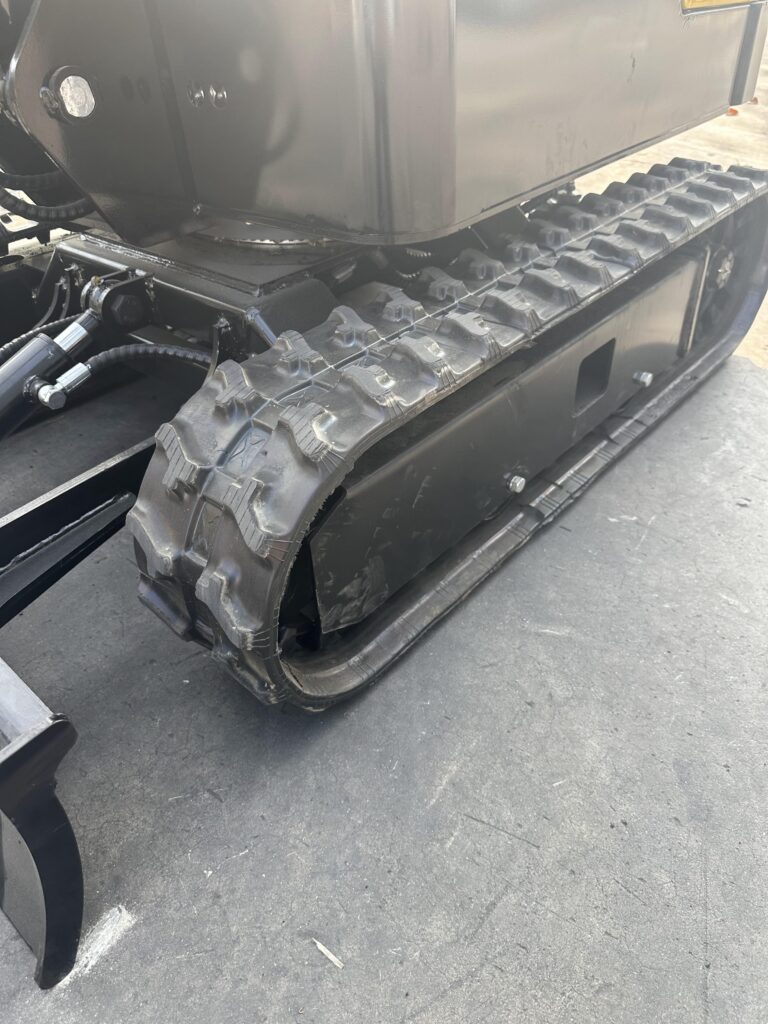

Tracked Chassis
Tracks and Site Access
Describe the ground surface and access route for your worksite. Include the track arrangement and chassis requirements with the machine and requested tools in the quotation.

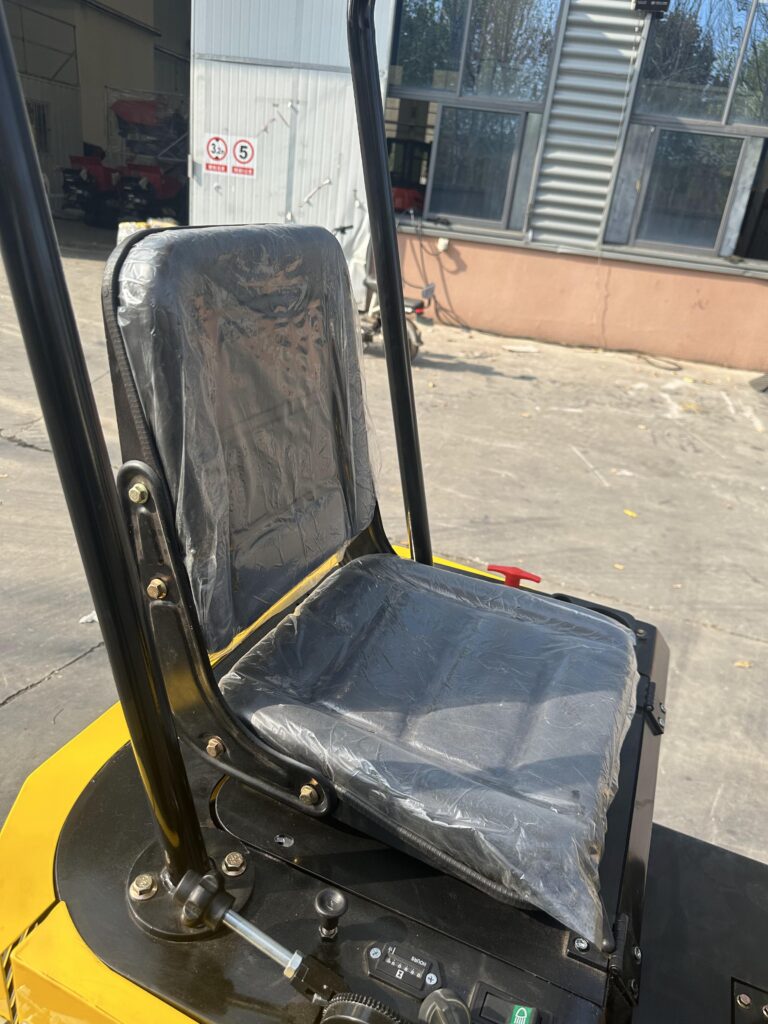

Operator Seating
Operator Station and Seating
Specify the seating and operating arrangement required by your crew. Agree the operator-station equipment, controls and engine configuration together in the itemized offer.
Track Configuration
Match Tracks to Your Ground
Provide the site surface and travel requirements for your project. Have the selected track specification and relevant machine equipment listed before planning access or transport.
Configuration Reference Video
HUATENG configuration reference video. Use the HT-12 specifications and itemized equipment list to select the version, controls and tools for your order.
SPECIFICATIONS
Technical
Specifications
HT-12 configuration data.
Dimensions in metric units.
| Specification | Value |
|---|---|
| Product class | 1.2 Ton |
| Engine | RATO |
| Bucket capacity | 0.03 m³ |
| Travel speed | 1.2 km/h |
| Swing speed | 9 rpm |
| Maximum climbing ability | 30 ° |
| Maximum digging force | 6.5 kN |
| Length | 2870 mm |
| Width | 1000 mm |
| Height with canopy / without canopy | 2285/2030 mm |
| Dozer blade width | 937 mm |
| Dozer blade height | 210 mm |
| Maximum digging height | 2580 mm |
| Maximum dumping height | 1745 mm |
| Maximum digging depth | 1700 mm |
| Maximum digging reach | 3030 mm |
| Blade maximum lift height | 170 mm |
| Blade maximum cutting depth | 240 mm |
| Track ground contact length | 1200 mm |
| Hydraulic system pressure | 16 MPa |
| Power | Confirm in quotation |
Get Price & Shipping
Send your model, quantity, preferred equipment and destination. Request an itemized machine price, included tools and shipping scope.
This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.
Your contact details help us reply to your enquiry.
AFTER-SALES & FAQ
Plan Your After-Sales Support
Include manuals, warranty terms and parts identification in your purchase discussion.
Manuals & Parts Identification
Request first-start and maintenance guidance. Keep the model, serial number, engine details and component photos for parts enquiries.
Written Warranty Terms
Agree the warranty period, coverage, exclusions and parts arrangements for the supplied configuration before ordering.
Need Help Choosing?
Share the job, access limits and tools you need so the equipment can be checked for your enquiry.
Discuss Your RequirementsFrequently Asked Questions
What is included in the HT-12 price quotation?
Request the HT-12 machine configuration, included bucket, requested tools, paid options and packing as separate line items. Add quantity and the delivery destination so the equipment price and shipping scope are clear.
What does the 1.2 ton designation mean?
1.2 Ton identifies the product class. Operating weight is confirmed separately for the quoted machine, including its selected equipment and measurement basis. Packed shipping weight is a separate figure.
Which tools and configuration should I choose for the HT-12?
Check the listed 1000 mm reference width against your narrowest entrance, then provide the required bucket width and ground conditions. Ask for the quoted chassis, blade clearance, linkage and hydraulic connections for the selected tools.
Which engine and destination documents should I request?
The reference engine configuration is RATO. Request the installed model and rated power, then agree the invoice, packing information, manuals and destination-specific machine or engine documents for the supplied version.
Does shipping cover the port or my address, and which dates apply?
Provide the named port or delivery address. Ask which freight, customs, taxes, port fees, onward delivery and unloading costs are included. Request separate production-ready, planned departure and estimated arrival dates; these are different milestones.
What warranty and parts support come with the HT-12?
Agree the warranty period, coverage, exclusions and parts-support terms in writing. Request first-start and maintenance guidance for the supplied configuration. Keep the model, serial number and component photos for parts identification.
