HUATENG · HT-40
HT-40 4 Ton Mini Excavator
HUATENG HT40 is a 4 Ton mini excavator for utility trenches, foundations and general construction work. Choose the engine and working tools for your project, then request an itemized equipment price and shipping quotation for your destination.
4 Ton
Product Class
1550 mm
Chassis Width
2830 mm
Digging Depth
Kubota D1105
Engine
CHOOSE YOUR EQUIPMENT
Configuration for Your Work
Choose the controls, engine package and working tools around your site requirements. Request an itemized equipment list so you can compare what is included in the machine price.

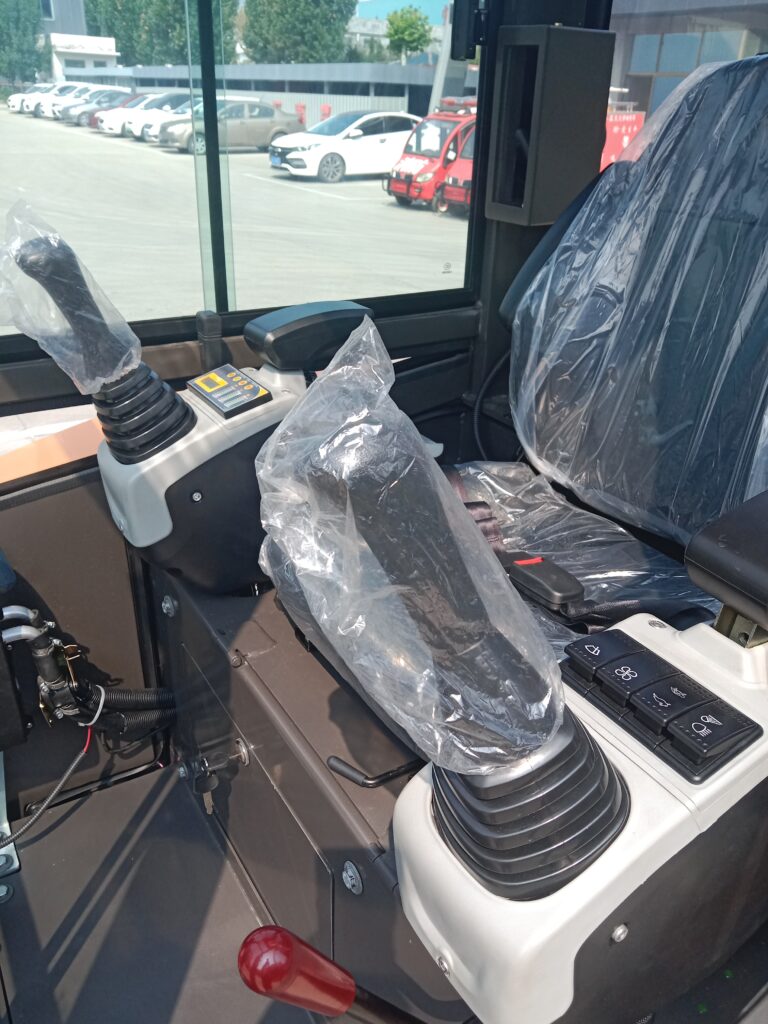

Pilot Controls
Pilot Joystick Layout
The cab places the joystick consoles and switches beside the operator seat. Confirm the control layout and operating instructions for your HT-40 order.

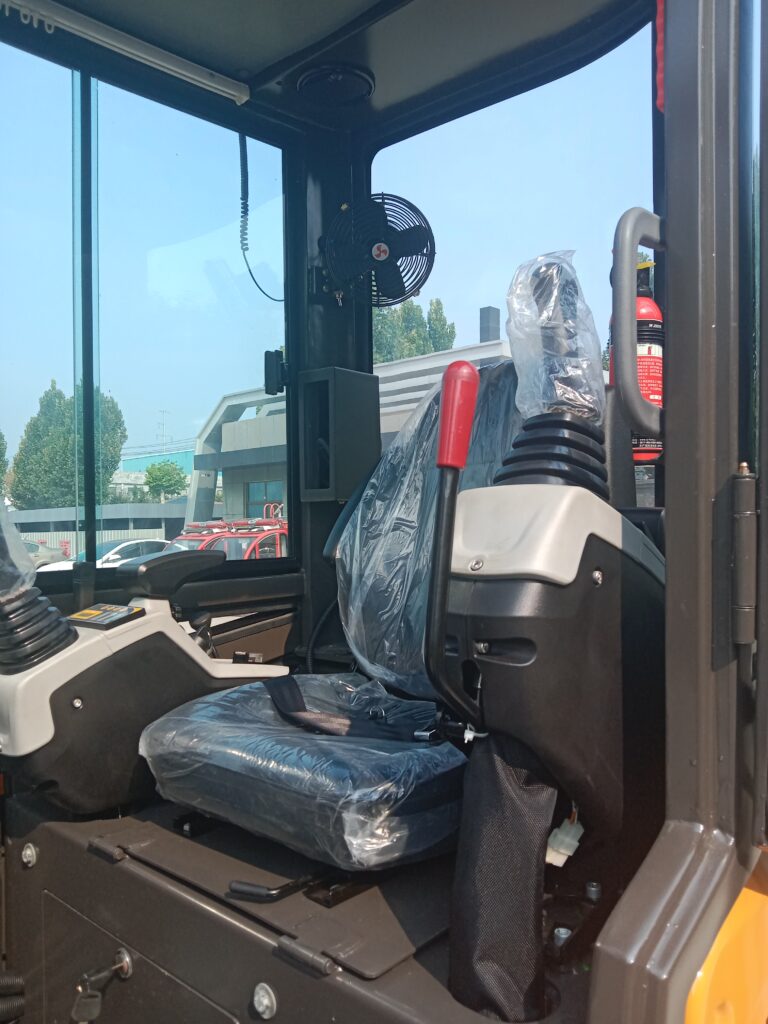

Cab Layout
Operator Seat and Cab Fan
The enclosed operator area shows the seat, armrests and a cab fan. Have the operator station and comfort equipment listed in your quotation.

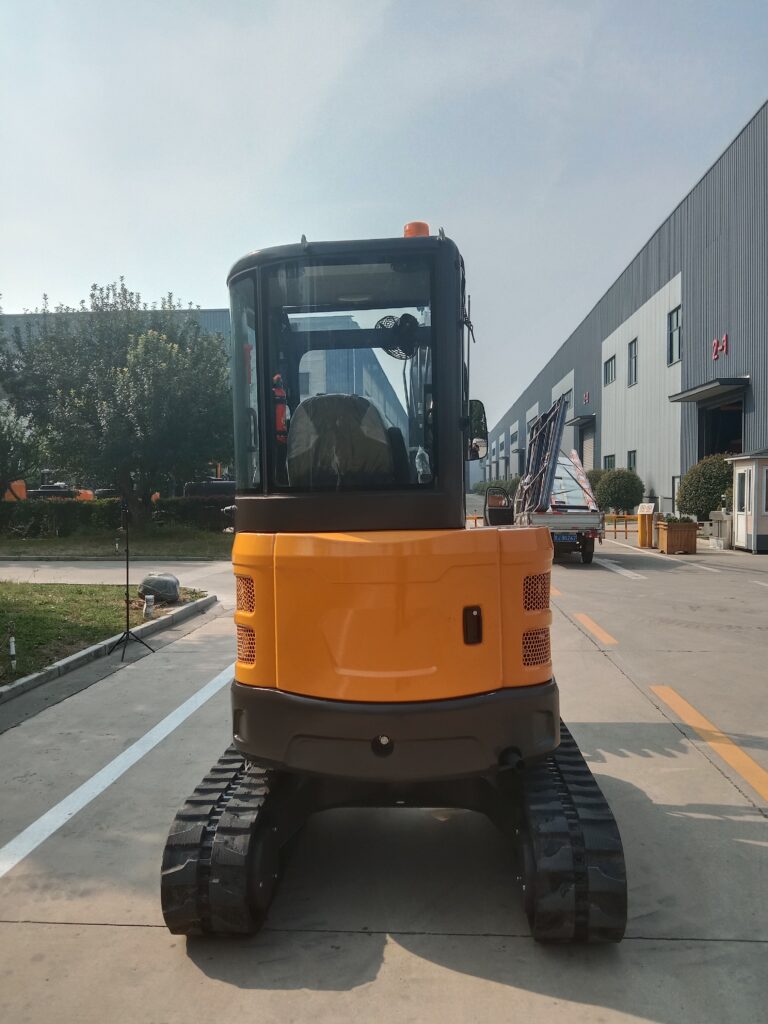

Rear Access
Rear Housing and Cab
The rear view shows the housing access panel, ventilation grilles and enclosed cab. Request the service access information and cab equipment included with your order.
Configuration Reference Video
HUATENG configuration reference video. Use the HT-40 specifications and itemized equipment list to select the version, controls and tools for your order.
SPECIFICATIONS
Technical
Specifications
HT-40 configuration data.
Dimensions in metric units.
| Specification | Value |
|---|---|
| Product class | 4 Ton |
| Engine | KUBOTA D1105 |
| Power | 14 kW / 19 hp |
| Number of cylinders | 3 |
| Max torque of engine | 70.3 Nm at 1600 rpm |
| Displacement of engine | 1.123 L |
| Engine oil capacity | 5.1 L |
| Travel speeds | 2.6 / 4.5 km/h (two speeds) |
| Rubber track shoe width | 300 mm |
| Carrier rollers per side | 1 |
| Track rollers per side | 3 |
| Standard bucket capacity | 0.1 m³ |
| Width of standard bucket | 450 mm |
| Swing speed | 10 rpm |
| Gradeability | 58 % |
| Bucket digging force | 23.5 kN |
| Arm digging force | 14 kN |
| Hydraulic system pressure | 20.5 MPa |
| Ground pressure | 24 kPa |
| Fuel tank capacity | 23 L |
| Hydraulic oil tank capacity | 24 L |
| Main pump flow (variable piston pump) | 61.6 L/min |
| Overall dimensions (L × W × H) | 4195 × 1550 × 2480 mm |
| Track ground contact length | 1565 mm |
| Track gauge | 1250 mm |
| Minimum ground clearance | 286 mm |
| Tail swing radius | 860 mm |
| Boom length | 2200 mm |
| Arm length | 1300 mm |
| Maximum digging height | 4427 mm |
| Maximum dumping height | 3005 mm |
| Maximum digging depth | 2830 mm |
| Maximum vertical digging depth | 2530 mm |
| Maximum digging radius | 4835 mm |
| Minimum front swing radius | 2160 mm |
| Blade maximum lift height | 308 mm |
| Blade maximum cutting depth | 363 mm |
| Boom swing angle (left) | 69 ° |
| Boom swing angle (right) | 45 ° |
| Dozer blade height | 330 mm |
Get Price & Shipping
Send your model, quantity, preferred equipment and destination. Request an itemized machine price, included tools and shipping scope.
This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.
Your contact details help us reply to your enquiry.
AFTER-SALES & FAQ
Plan Your After-Sales Support
Include manuals, warranty terms and parts identification in your purchase discussion.
Manuals & Parts Identification
Request first-start and maintenance guidance. Keep the model, serial number, engine details and component photos for parts enquiries.
Written Warranty Terms
Agree the warranty period, coverage, exclusions and parts arrangements for the supplied configuration before ordering.
Need Help Choosing?
Share the job, access limits and tools you need so the equipment can be checked for your enquiry.
Discuss Your RequirementsFrequently Asked Questions
What is included in the HT-40 price quotation?
Request the HT-40 machine configuration, included bucket, requested tools, paid options and packing as separate line items. Add quantity and the delivery destination so the equipment price and shipping scope are clear.
What does the 4 ton designation mean?
4 Ton identifies the product class. Operating weight is confirmed separately for the quoted machine, including its selected equipment and measurement basis. Packed shipping weight is a separate figure.
Which tools and configuration should I choose for the HT-40?
Provide the worksite clearances, required bucket width and attachment list. Ask for the boom-swing arrangement, cab equipment, linkage and hydraulic connections to be identified with the quoted machine configuration.
Which engine and destination documents should I request?
The reference engine configuration is Kubota D1105. Request the installed model and rated power, then agree the invoice, packing information, manuals and destination-specific machine or engine documents for the supplied version.
Does shipping cover the port or my address, and which dates apply?
Provide the named port or delivery address. Ask which freight, customs, taxes, port fees, onward delivery and unloading costs are included. Request separate production-ready, planned departure and estimated arrival dates; these are different milestones.
What warranty and parts support come with the HT-40?
Agree the warranty period, coverage, exclusions and parts-support terms in writing. Request first-start and maintenance guidance for the supplied configuration. Keep the model, serial number and component photos for parts identification.
