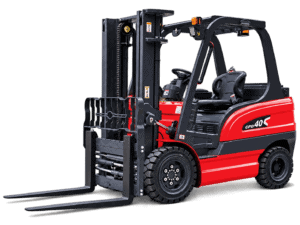

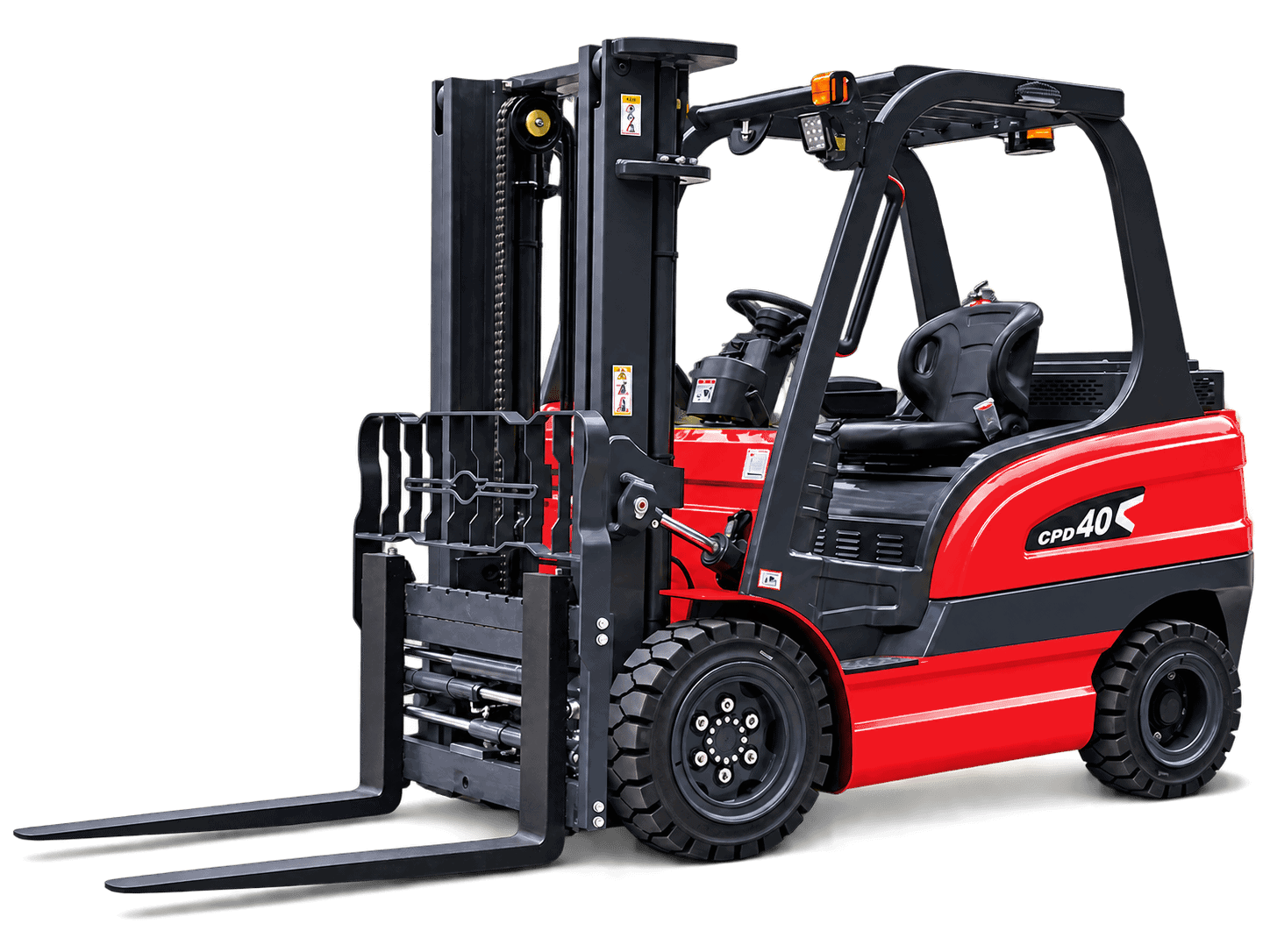

Model: HT-CPD40
4 Ton Electric Forklift
The HT-CPD40 is a 4 ton electric forklift with a 4,000 kg rated capacity. Tell us your lift height, access clearances and charging requirements to request a matched configuration and price.
4,000 kg
Rated Capacity
Electric
Power Type
On request
Lift Height
On request
Wheel Configuration
CONFIGURATION & PRICE
Configure Your Electric Forklift
Specify the equipment for your HT-CPD40 quotation. Share the load, required lift height, site clearances and daily workload; request machine, optional equipment and shipping prices separately.
01 / CONFIGURATION

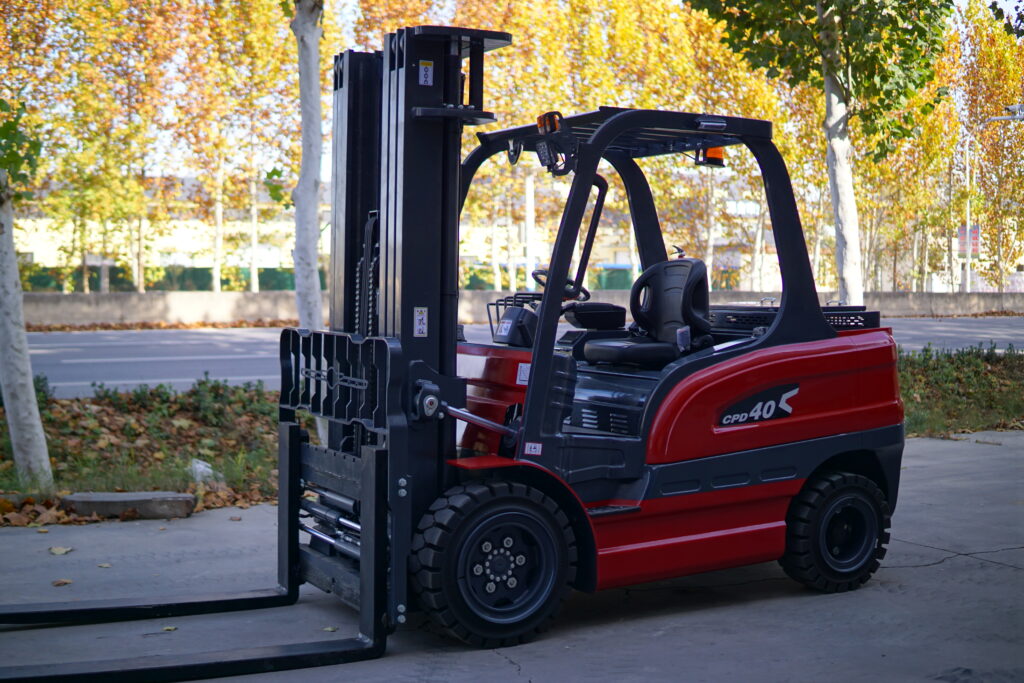

Mast & Lift Height
Specify the required lift height and door or container clearance. Ask for the mast dimensions and load-capacity chart for the quoted configuration.
02 / CONFIGURATION
Battery & Charger
Share your daily shift pattern, available charging voltage, frequency and plug requirements. Ask for the battery and charger specification included in your quote.
03 / CONFIGURATION
Tyres, Forks & Attachments
Tell us your floor conditions, pallet size and handling task. Request a separate price for the tyres, fork dimensions and any attachment required for your order.
Electric Forklift Reference Video
General electric forklift reference footage. Ask for a walk-around and working video of your quoted HT-CPD40 configuration. Example footage does not confirm equipment included in an order.
SPECIFICATIONS
4 Ton Electric Forklift Specifications
Compare the available HT-CPD40 dimensions and motor specifications. Ask for the final mast, battery and load-capacity details with your quotation.
| Rated Capacity | 4,000 kg |
|---|---|
| Wheelbase | 1,930 mm |
| Service Weight, Including Battery | 4,400 kg |
| Front Tyre Size | 28×9-15 |
| Rear Tyre Size | 650-10 |
| Mast Height, Lowered | 2,180 mm |
| Overhead Guard Height | 2,150 mm |
| Overall Width | 1,300 mm |
| Fork Size, Thickness × Width × Length | 50 × 150 × 1,070 mm |
| Minimum Ground Clearance Under Frame | 130 mm |
| Minimum Turning Radius | 2,670 mm |
| Travel Speed, Laden / Unladen | 12 / 14 km/h |
| Lift Speed, Laden / Unladen | 0.28 / 0.4 m/s |
| Lowering Speed, Laden / Unladen | 0.45 / 0.4 m/s |
| Gradeability, Laden / Unladen | 14% / 15% |
| Drive Motor Rated Power, S2 60 min | 11.5 kW |
| Lift Motor Rated Power, S3 15% | 13.5 kW |
Technical data is based on the HT-CPD40 product parameter table. Confirm the final configuration and specifications in your quotation.
Get In Touch
Tell us your requirements, quantity and delivery destination. Our team will help you choose the right configuration.
This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.
Your contact details help us reply to your enquiry.
AFTER-SALES & FAQ
Support After Delivery
Keep the configuration and order details available for troubleshooting and parts enquiries.
Parts Identification
Send the truck model and serial number, battery and charger details, and clear photos of the component.
Warranty for Your Order
Confirm the warranty period, coverage, exclusions and parts-support arrangements in the quotation and order documents.
HT-CPD40 Questions & Answers
How much does a 4 ton electric forklift cost?
Request an itemised HT-CPD40 quote based on quantity, mast, battery and charger, tyres and handling equipment. Provide the delivery country and port so machine and shipping costs can be shown separately.
Can the HT-CPD40 lift 4,000 kg at my rack height?
The model rating is 4,000 kg, but a selected lift height cannot be assessed from that rating alone. Share the load centre, pallet dimensions and attachment requirements; ask for the corresponding capacity chart.
What battery and charger should I specify for the HT-CPD40?
Send your shift pattern and available charging voltage, frequency and plug type. Ask for battery chemistry, voltage, capacity, charger output and charging requirements to be listed in the quotation; do not assume one battery specification applies to every configuration.
Will the HT-CPD40 fit my aisle and door openings?
The listed overall width is 1,300 mm. Check aisle width with your pallet size, turning space, lowered mast height and overhead clearance. Send your site dimensions before choosing the truck.
What information is needed for a HT-CPD40 shipping quote?
Provide quantity, destination country and port, delivery address if needed, and the selected mast and battery configuration. Packing, transport method, shipping charges and delivery arrangements are confirmed with the quotation and order.
What after-sales support is available for the HT-CPD40?
Ask for the applicable warranty coverage and parts-support terms before ordering. For parts identification, keep the truck model and serial number, battery and charger details, and photographs of the component.
