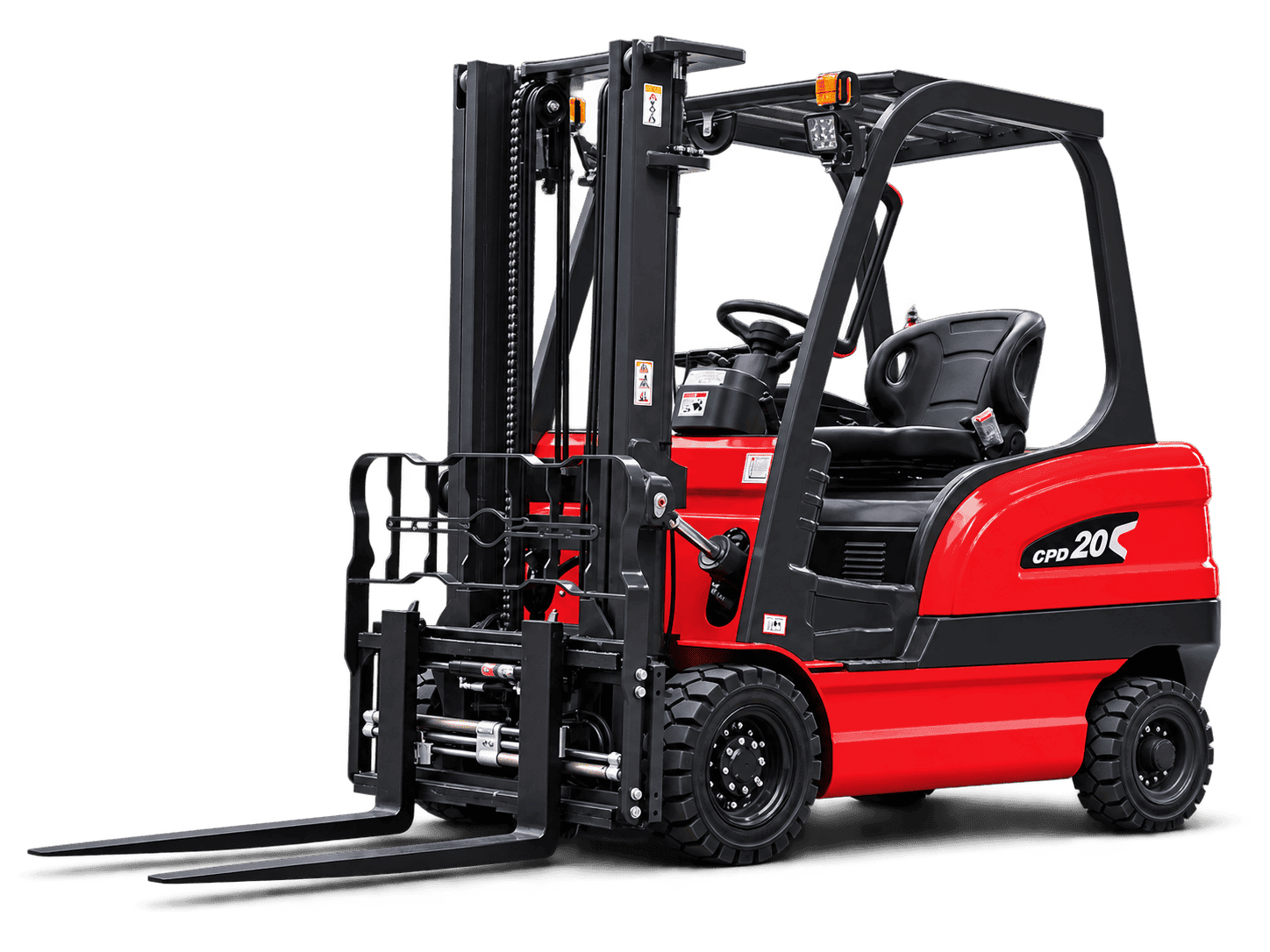

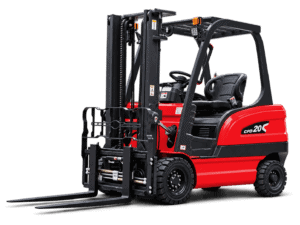

Model: HT-CPD20
2 Ton Electric Forklift
The HT-CPD20 is a 2 ton electric forklift with a 2,000 kg rated capacity and a 3,000 mm standard lift height. Match the mast, charging requirements and handling equipment to your operation, then request an itemised quote.
2,000 kg
Rated Capacity
Electric
Power Type
3,000 mm
Lift Height
4 Wheels
Wheel Configuration
CONFIGURATION & PRICE
Configure Your Electric Forklift
Specify the equipment for your HT-CPD20 quotation. Share the load, required lift height, site clearances and daily workload; request machine, optional equipment and shipping prices separately.
01 / CONFIGURATION
Mast & Lift Height
The listed configuration has a 3,000 mm standard lift. Share your rack height, load centre and door clearance before specifying a different mast.
02 / CONFIGURATION

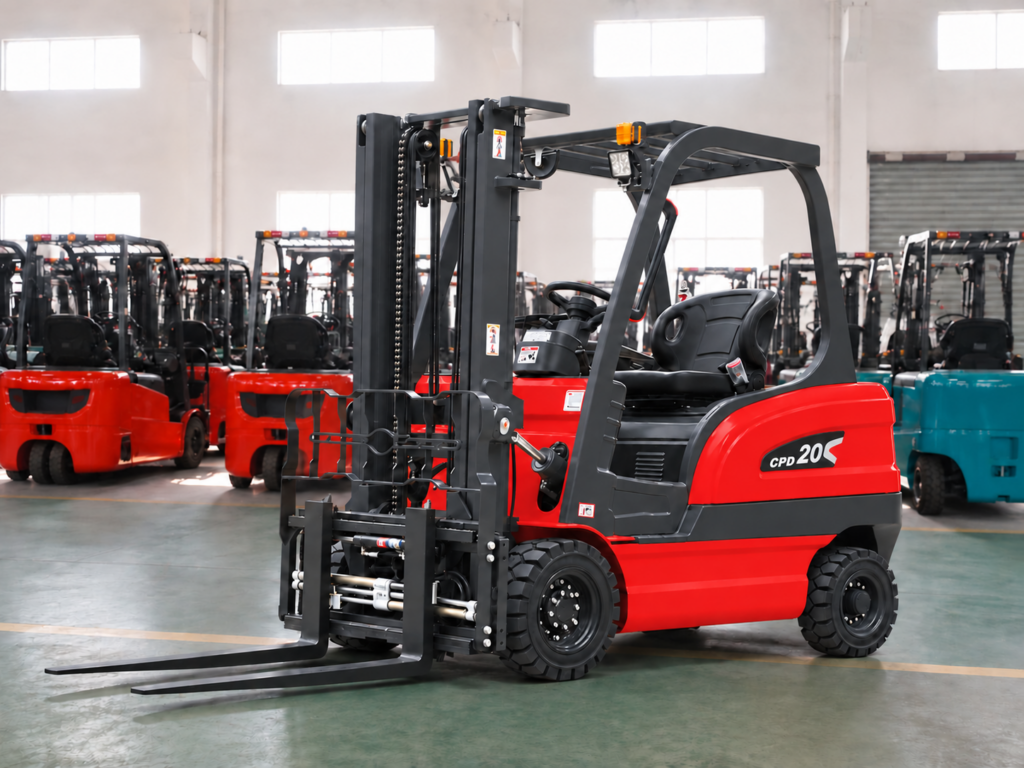

Battery & Charger
Share your daily shift pattern, available charging voltage, frequency and plug requirements. Ask for the battery and charger specification included in your quote.
03 / CONFIGURATION
Tyres, Forks & Attachments
Tell us your floor conditions, pallet size and handling task. Request a separate price for the tyres, fork dimensions and any attachment required for your order.
Electric Forklift Reference Video
General electric forklift reference footage. Ask for a walk-around and working video of your quoted HT-CPD20 configuration. Example footage does not confirm equipment included in an order.
SPECIFICATIONS
2 Ton Electric Forklift Specifications
Compare HT-CPD20 load, mast, working dimensions and electrical specifications. A 500 mm load centre is shown for the listed configuration. Confirm the final equipment and capacity chart in your quotation.
| Power Type | Electric |
|---|---|
| Operator Type | Seated |
| Rated Capacity | 2,000 kg |
| Load Centre | 500 mm |
| Front Overhang | 300 mm |
| Wheelbase | 1,600 mm |
| Service Weight, Including Battery | 2,850 kg |
| Tyre Type | Solid tyres |
| Front Tyre Size | 18X7-10 |
| Rear Tyre Size | 500-8 |
| Wheels, Front / Rear | 2 / 2 |
| Front Track Width | 950 mm |
| Rear Track Width | 950 mm |
| Mast Tilt, Forward / Backward | 5° / 9° |
| Mast Height, Lowered | 2,130 mm |
| Standard Lift Height | 3,000 mm |

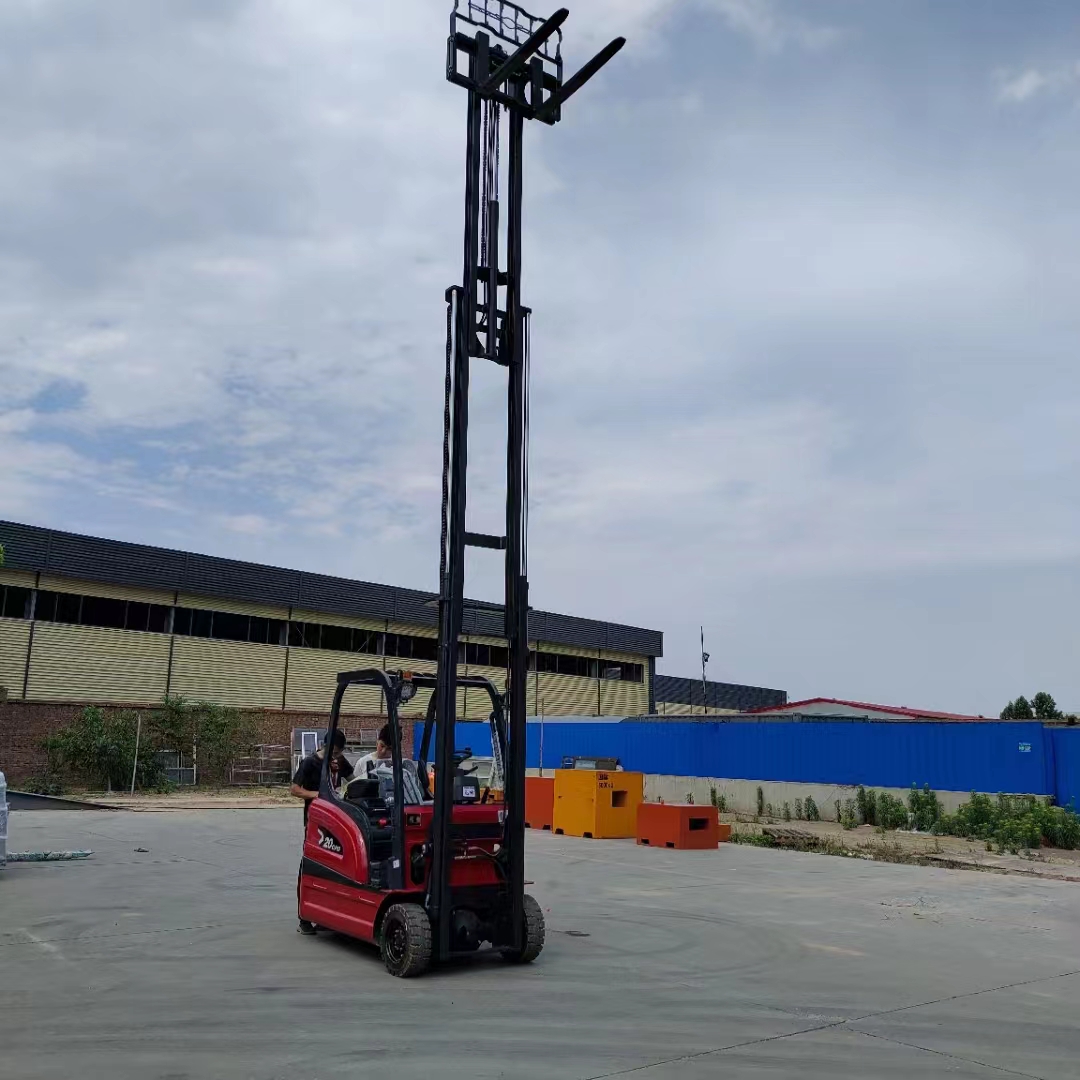

| Mast Height, Fully Extended | 4,000 mm |
| Overhead Guard Height | 2,050 mm |
| Seat Height | 1,050 mm |
| Tow Pin Centre Height | 510 mm |
| Overall Length | 3,410 mm |
| Length to Fork Face | 2,300 mm |
| Overall Width | 1,100 mm |
| Fork Size, Thickness × Width × Length | 40 × 122 × 1,070 mm |
| Fork Carriage Width | 1,040 mm |
| Ground Clearance Under Mast, Laden | 110 mm |
| Minimum Ground Clearance Under Frame | 80 mm |
| Aisle Width, 1,200 × 1,000 mm Pallet | 3,800 mm |
| Aisle Width, 800 × 1,200 mm Pallet | 4,000 mm |
| Minimum Turning Radius | 2,230 mm |
| Travel Speed, Laden / Unladen | 10 / 12 km/h |
| Lift Speed, Laden / Unladen | 0.24 / 0.3 m/s |
| Lowering Speed, Laden / Unladen | 0.4 / 0.36 m/s |
| Gradeability, Laden / Unladen | 14% / 15% |
| Service Brake | Hydraulic + mechanical |
| Parking Brake | Mechanical |
| Drive Motor Rated Power, S2 60 min | 5.5 kW |
| Lift Motor Rated Power, S3 15% | 5.5 kW |
| Battery Voltage / Nominal Capacity, K5 | 60 V / 260 Ah |
| Drive Control | AC |
Technical data is based on the HT-CPD20 product parameter table. Confirm the final configuration and specifications in your quotation.
Get In Touch
Tell us your requirements, quantity and delivery destination. Our team will help you choose the right configuration.
This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.
Your contact details help us reply to your enquiry.
AFTER-SALES & FAQ
Support After Delivery
Keep the configuration and order details available for troubleshooting and parts enquiries.
Parts Identification
Send the truck model and serial number, battery and charger details, and clear photos of the component.
Warranty for Your Order
Confirm the warranty period, coverage, exclusions and parts-support arrangements in the quotation and order documents.
HT-CPD20 Questions & Answers
How much does a 2 ton electric forklift cost?
Request an itemised HT-CPD20 quote based on quantity, mast, battery and charger, tyres and handling equipment. Provide the delivery country and port so machine and shipping costs can be shown separately.
Can the HT-CPD20 lift 2,000 kg above 3 m?
The listed standard lift is 3,000 mm. Higher lift requirements need a specific mast and capacity chart; remaining capacity depends on load centre and attachments. Share your load dimensions and required height before ordering.
What battery and charger should I specify for the HT-CPD20?
Send your shift pattern and available charging voltage, frequency and plug type. Ask for battery chemistry, voltage, capacity, charger output and charging requirements to be listed in the quotation; do not assume one battery specification applies to every configuration.
Will the HT-CPD20 fit my aisle and door openings?
The listed overall width is 1,100 mm. Check aisle width with your pallet size, turning space, lowered mast height and overhead clearance. Send your site dimensions before choosing the truck.
What information is needed for a HT-CPD20 shipping quote?

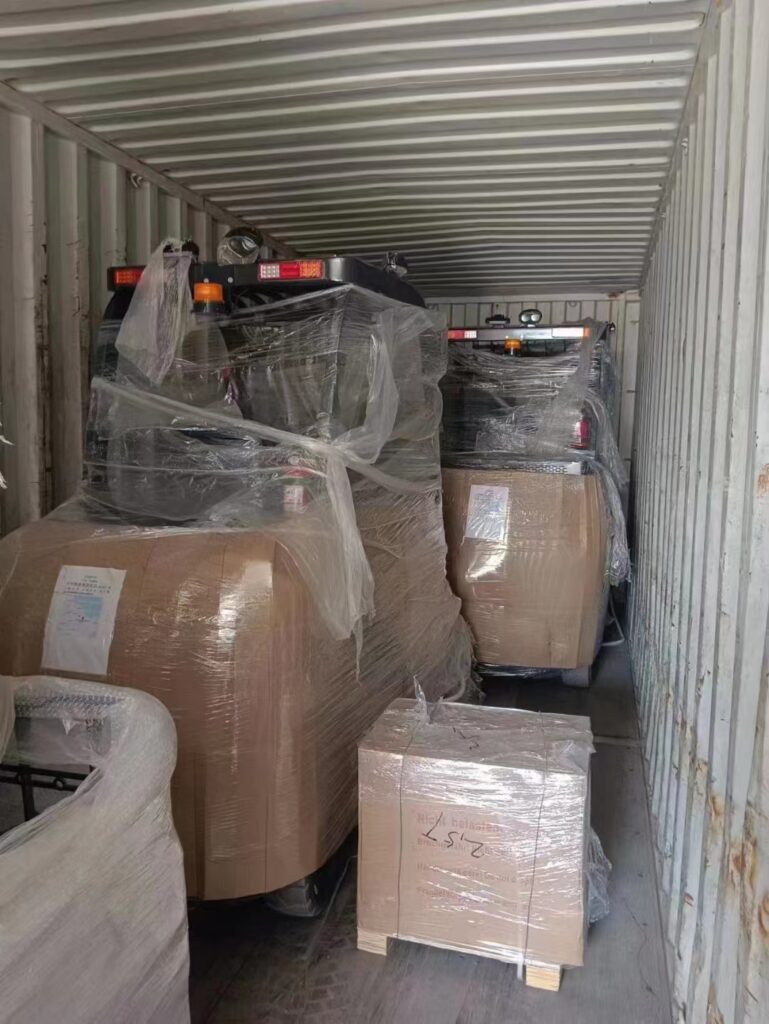

Provide quantity, destination country and port, delivery address if needed, and the selected mast and battery configuration. Packing, transport method, shipping charges and delivery arrangements are confirmed with the quotation and order.
What after-sales support is available for the HT-CPD20?
Ask for the applicable warranty coverage and parts-support terms before ordering. For parts identification, keep the truck model and serial number, battery and charger details, and photographs of the component.
