HUATENG · HT-30

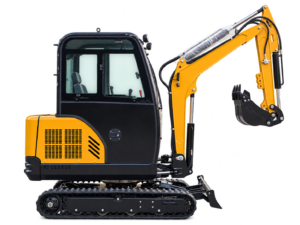

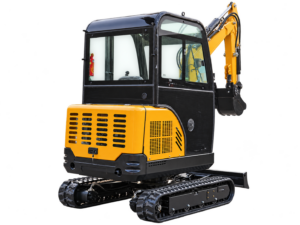

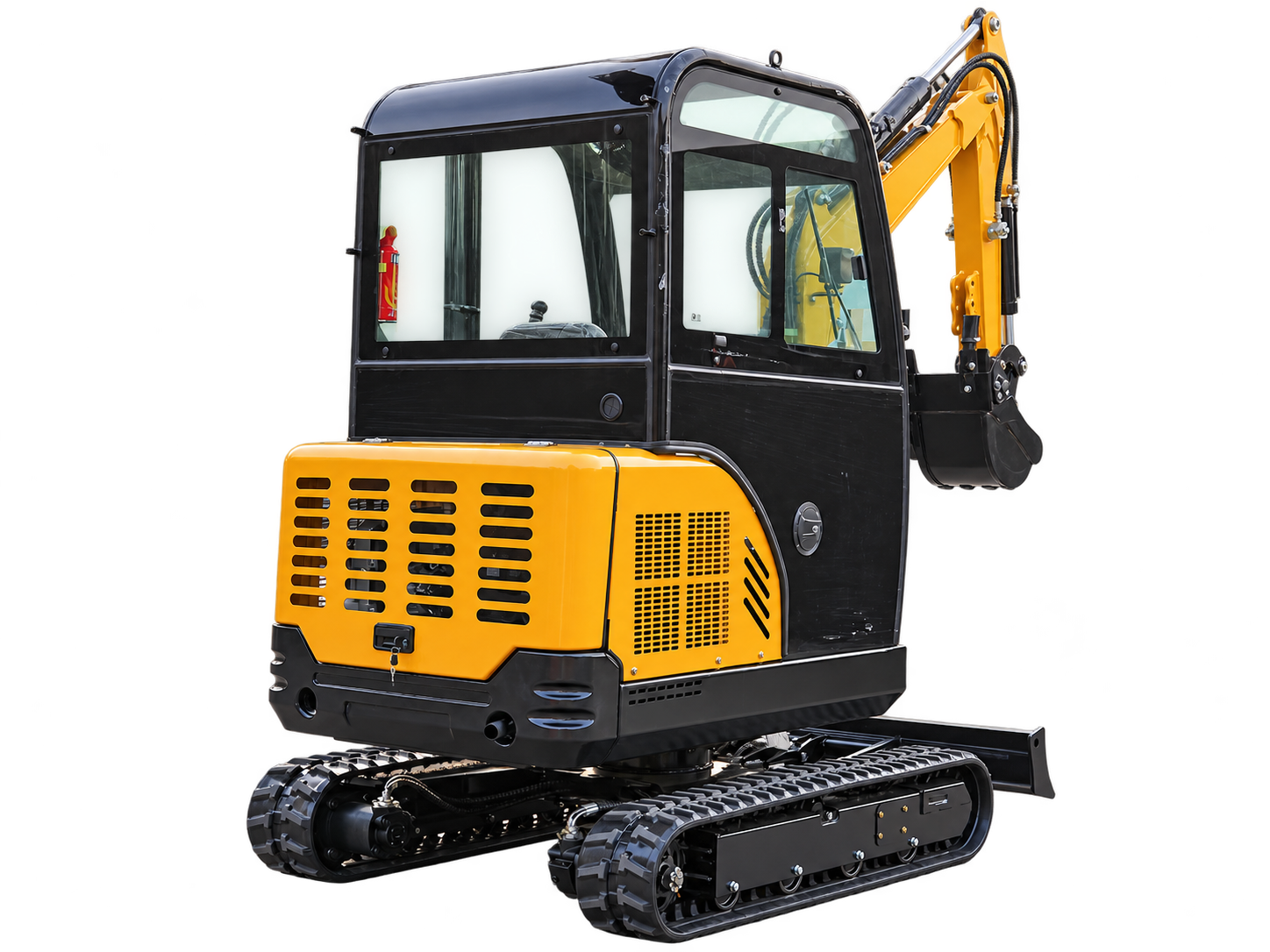

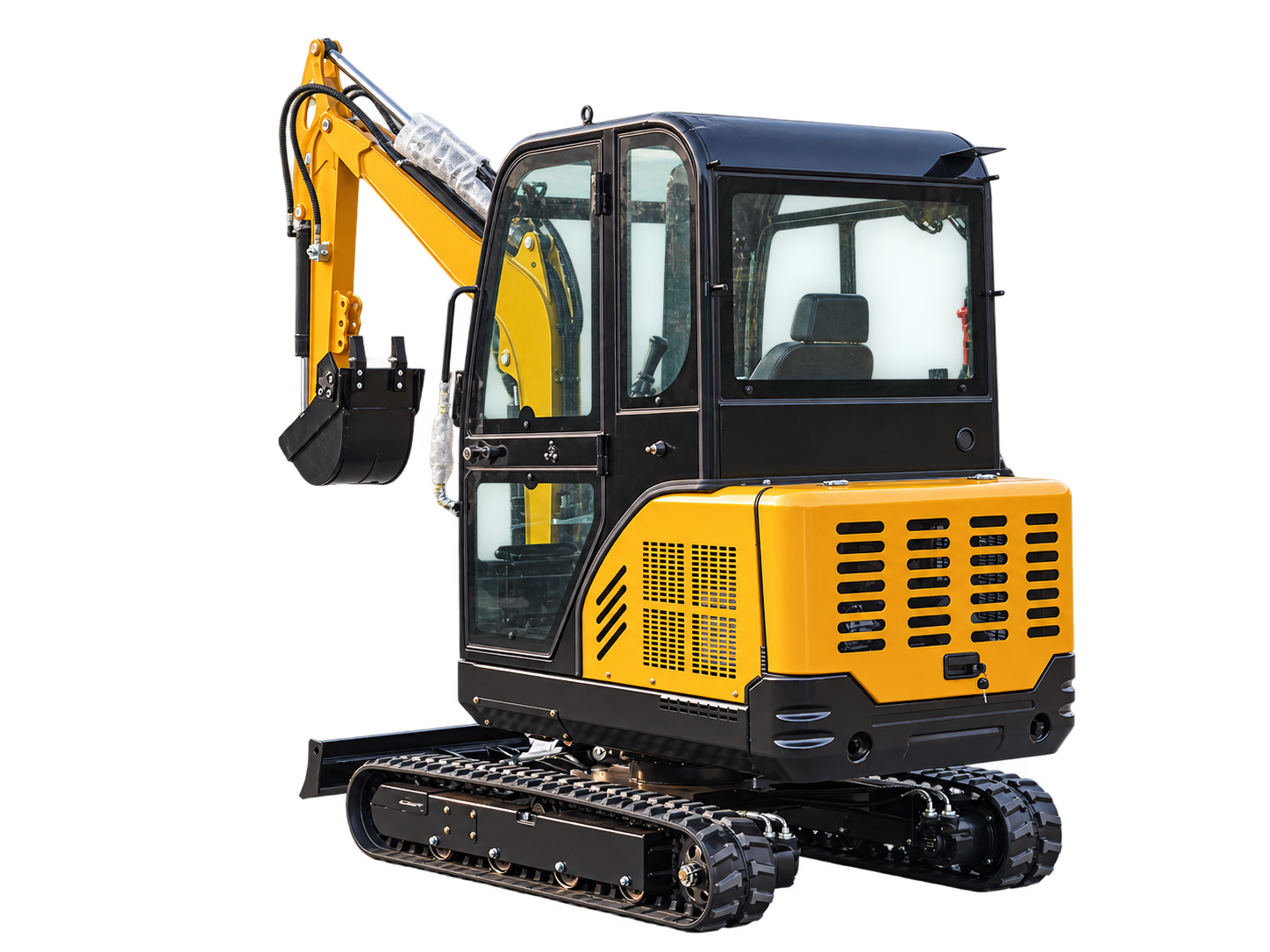

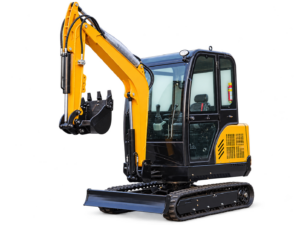

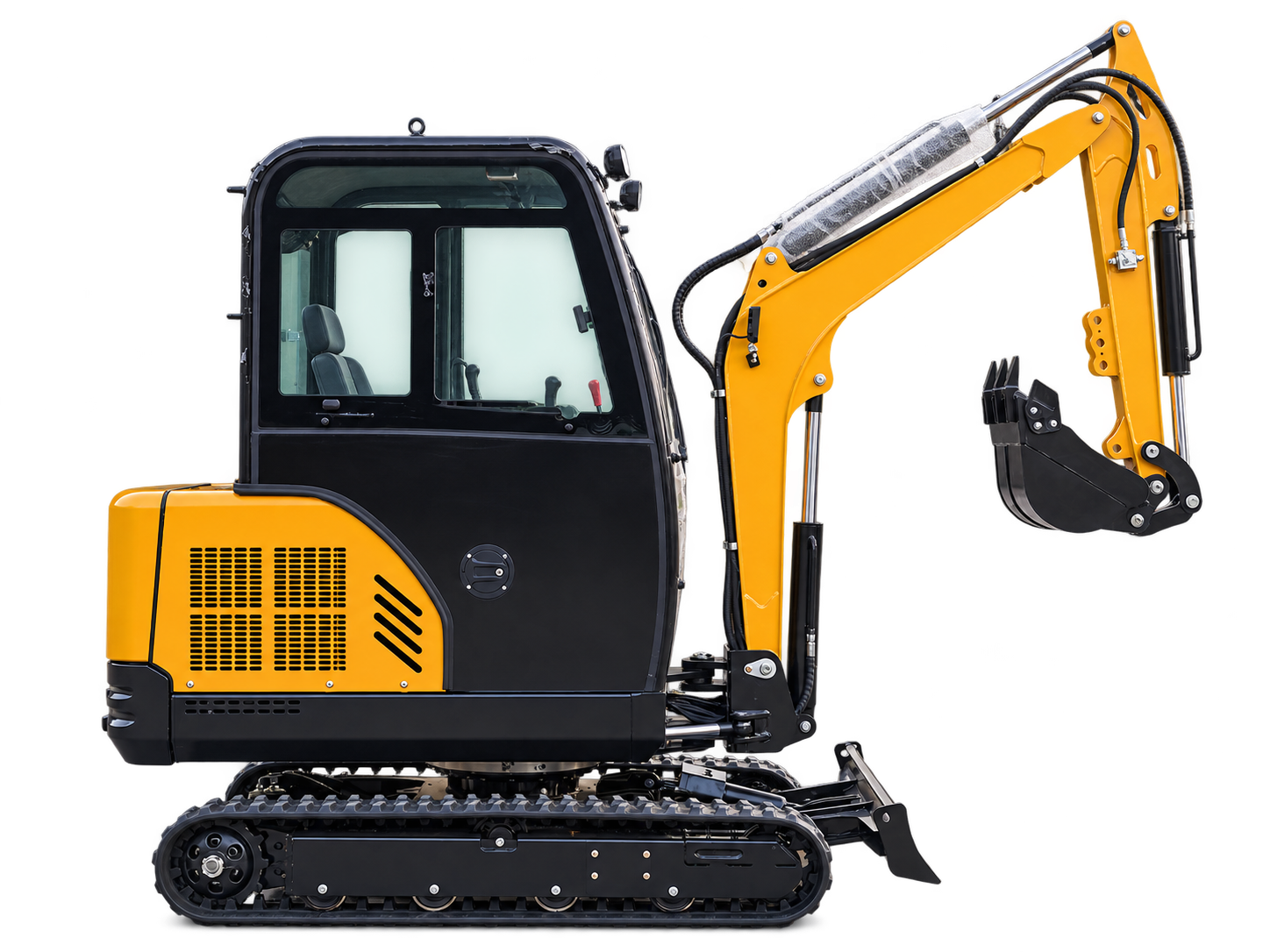

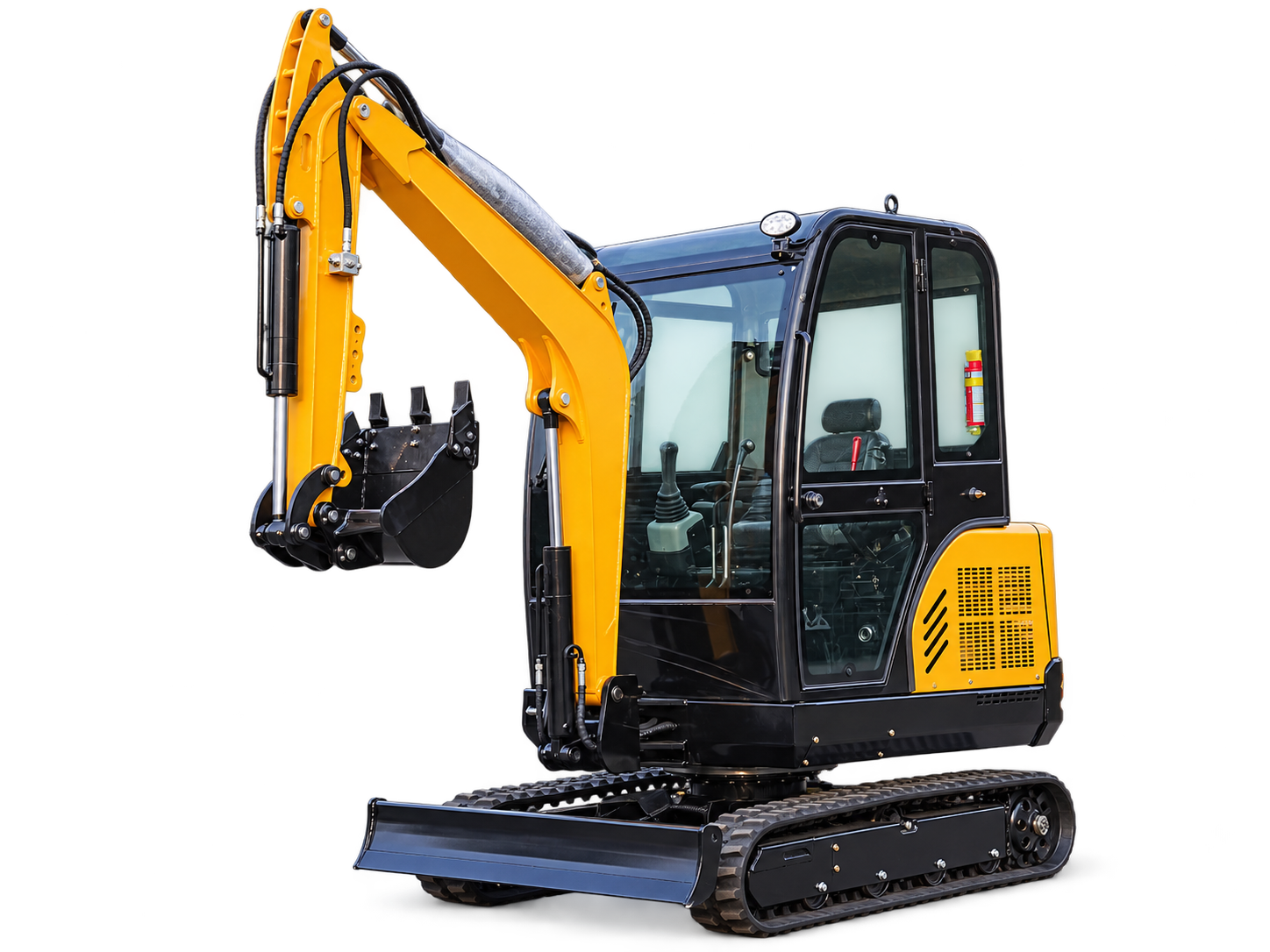

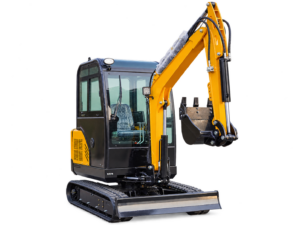

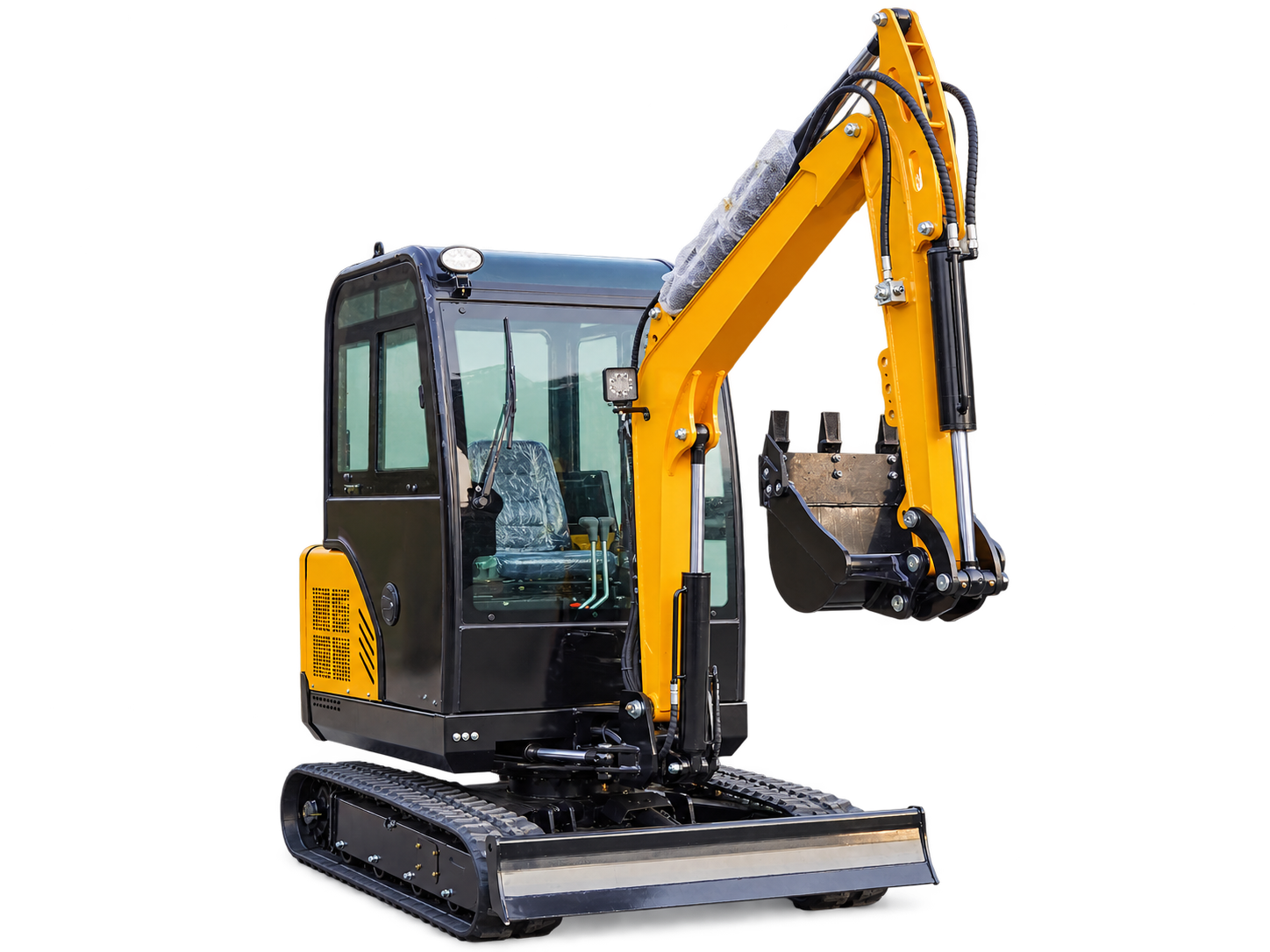

HT-30 3 Ton Mini Excavator
HUATENG HT30 is a 3 Ton mini excavator for trenching, landscaping and site preparation. Choose the engine and working tools for your project, then request an itemized equipment price and shipping quotation for your destination.
3 Ton
Product Class
1300 mm
Chassis Width
2350 mm
Digging Depth
Kubota D1105
Engine
CHOOSE YOUR EQUIPMENT
Configuration for Your Work
Choose the controls, engine package and working tools around your site requirements. Request an itemized equipment list so you can compare what is included in the machine price.

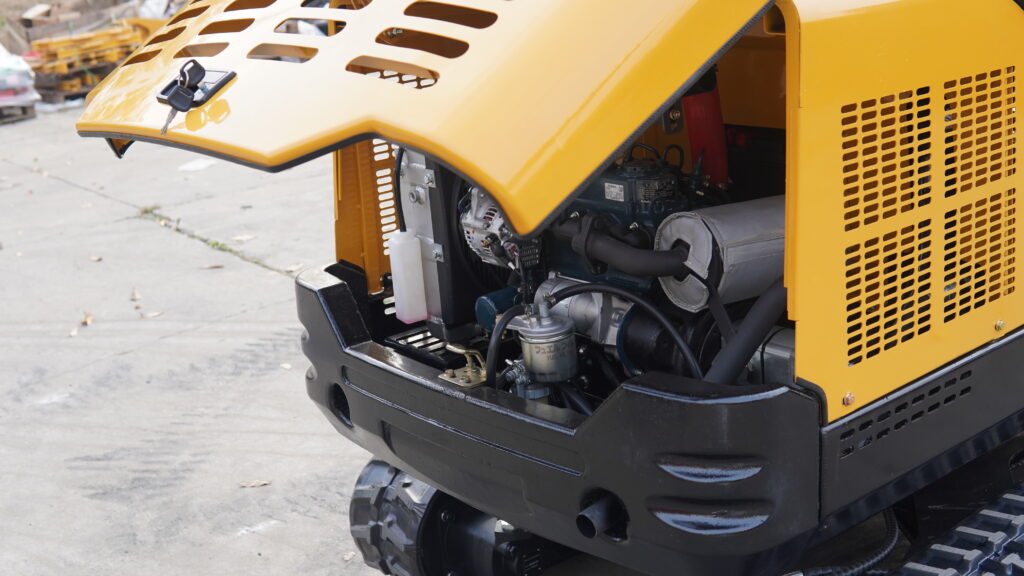

Engine & Service
Engine Access for Maintenance Planning
Plan routine maintenance around the installed engine and service points. Request the engine model, maintenance information and recommended service items with your HT-30 equipment quotation.

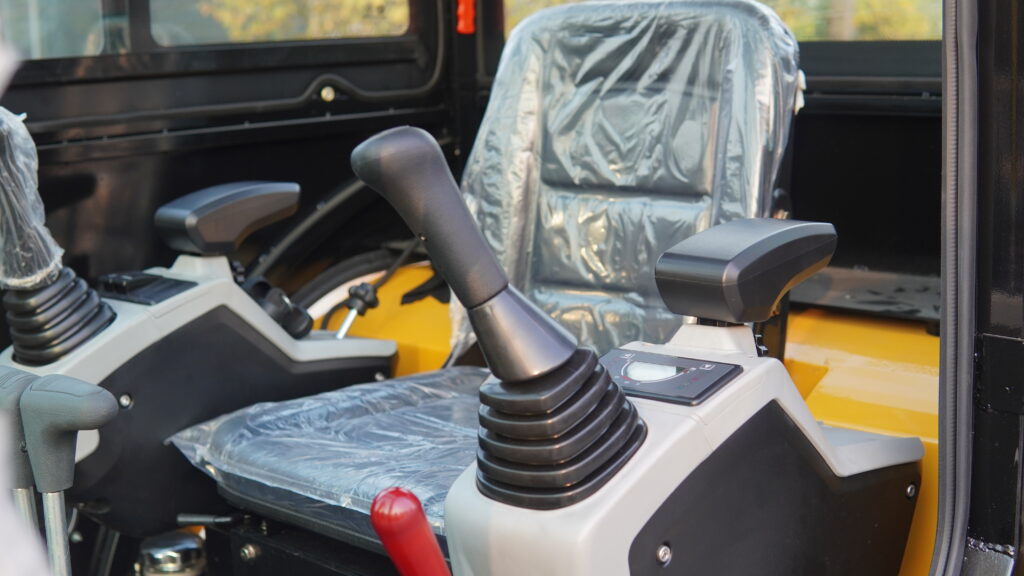

Cab Controls
Operator Controls Inside the Cab
Choose the operator arrangement for your crew and working schedule. Have the joystick layout, seat and included cab equipment specified alongside the engine and tools.

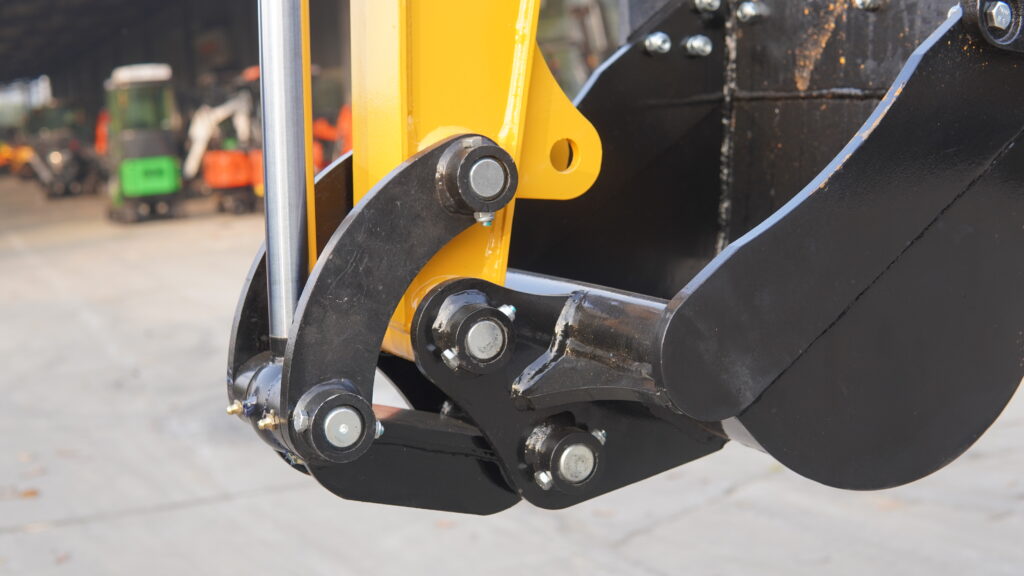

Tool Fit
Linkage for the Selected Attachments
List the buckets and hydraulic tools needed across your jobs. Have the linkage, pin dimensions and hydraulic connections checked for the selected machine and attachment package.
Configuration Reference Video
HUATENG configuration reference video. Use the HT-30 specifications and itemized equipment list to select the version, controls and tools for your order.
SPECIFICATIONS
Technical
Specifications
HT-30 configuration data.
Dimensions in metric units.
| Specification | Value |
|---|---|
| Product class | 3 Ton |
| Engine | Kubota D1105 |
| Engine type | Vertical, water-cooled, four-stroke |
| Displacement | 1.12 L |
| Maximum engine power | 21.7 kW at 3600 rpm |
| Horsepower | 29.5 hp |
| Fuel type | Diesel |
| Engine oil capacity | 5.1 L |
| Bucket capacity | 0.054 m³ |
| Overall dimensions (L × W × H) | 4000 × 1300 × 2300 mm |
| Track ground contact length | 1700 mm |
| Track width | 230 mm |
| Maximum digging depth | 2350 mm |
| Maximum dumping height | 2700 mm |
| Maximum digging height | 3200 mm |
| Side swing angle | 92° |
| Travel speed | 0–5 km/h |
| Bucket digging force | 20 kN |
Get Price & Shipping
Send your model, quantity, preferred equipment and destination. Request an itemized machine price, included tools and shipping scope.
This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.
Your contact details help us reply to your enquiry.
AFTER-SALES & FAQ
Plan Your After-Sales Support
Include manuals, warranty terms and parts identification in your purchase discussion.
Manuals & Parts Identification
Request first-start and maintenance guidance. Keep the model, serial number, engine details and component photos for parts enquiries.
Written Warranty Terms
Agree the warranty period, coverage, exclusions and parts arrangements for the supplied configuration before ordering.
Need Help Choosing?
Share the job, access limits and tools you need so the equipment can be checked for your enquiry.
Discuss Your RequirementsFrequently Asked Questions
What is included in the HT-30 price quotation?
Request the HT-30 machine configuration, included bucket, requested tools, paid options and packing as separate line items. Add quantity and the delivery destination so the equipment price and shipping scope are clear.
What does the 3 ton designation mean?
3 Ton identifies the product class. Operating weight is confirmed separately for the quoted machine, including its selected equipment and measurement basis. Packed shipping weight is a separate figure.
Which tools and configuration should I choose for the HT-30?
Specify the bucket width and tools for your trench dimensions and ground conditions. Include the cab equipment, linkage and hydraulic connections with the selected Kubota D1105 reference configuration in the complete offer.
Which engine and destination documents should I request?
The reference engine configuration is Kubota D1105. Request the installed model and rated power, then agree the invoice, packing information, manuals and destination-specific machine or engine documents for the supplied version.
Does shipping cover the port or my address, and which dates apply?
Provide the named port or delivery address. Ask which freight, customs, taxes, port fees, onward delivery and unloading costs are included. Request separate production-ready, planned departure and estimated arrival dates; these are different milestones.
What warranty and parts support come with the HT-30?
Agree the warranty period, coverage, exclusions and parts-support terms in writing. Request first-start and maintenance guidance for the supplied configuration. Keep the model, serial number and component photos for parts identification.
