HUATENG · HT-20

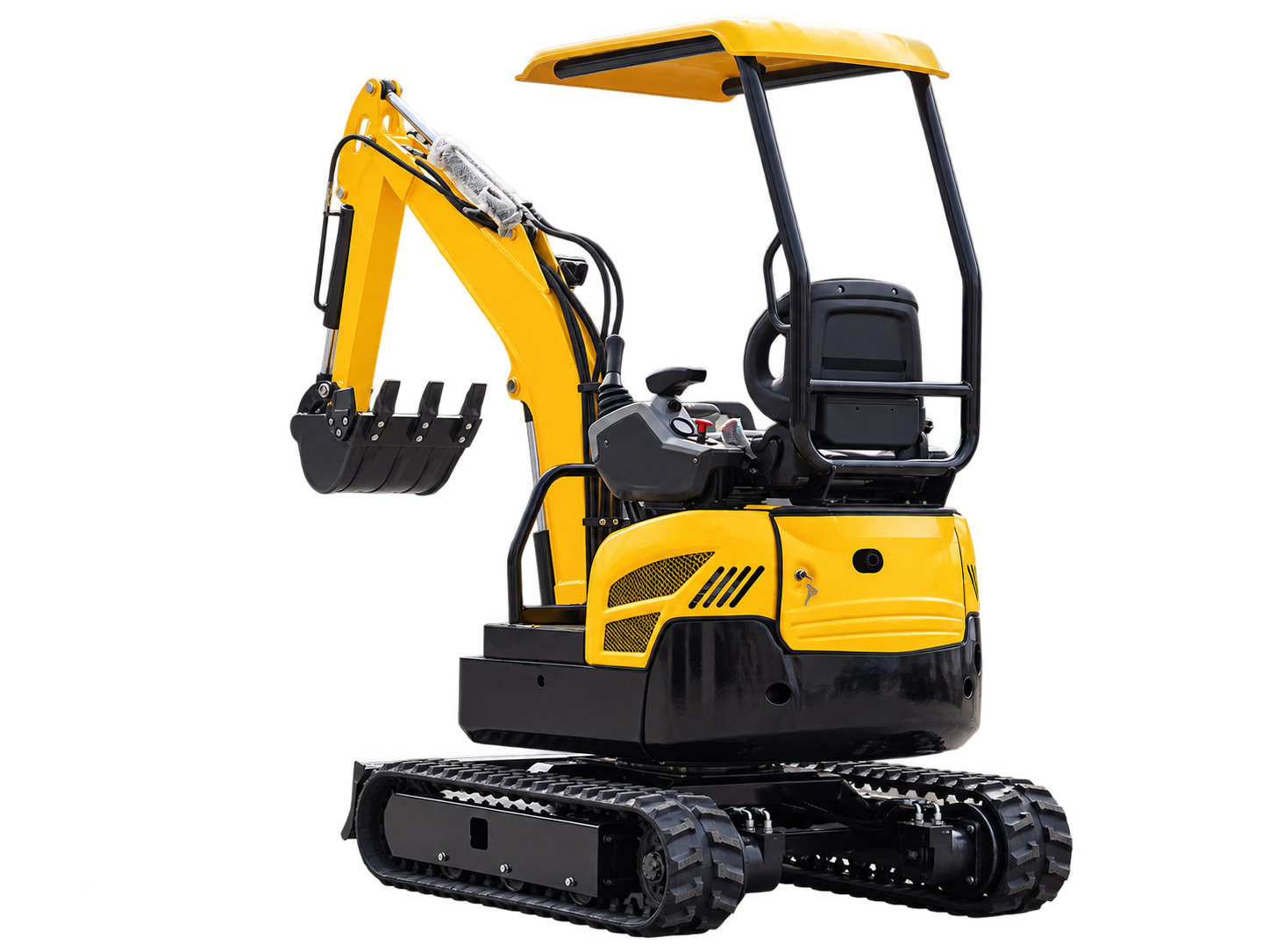

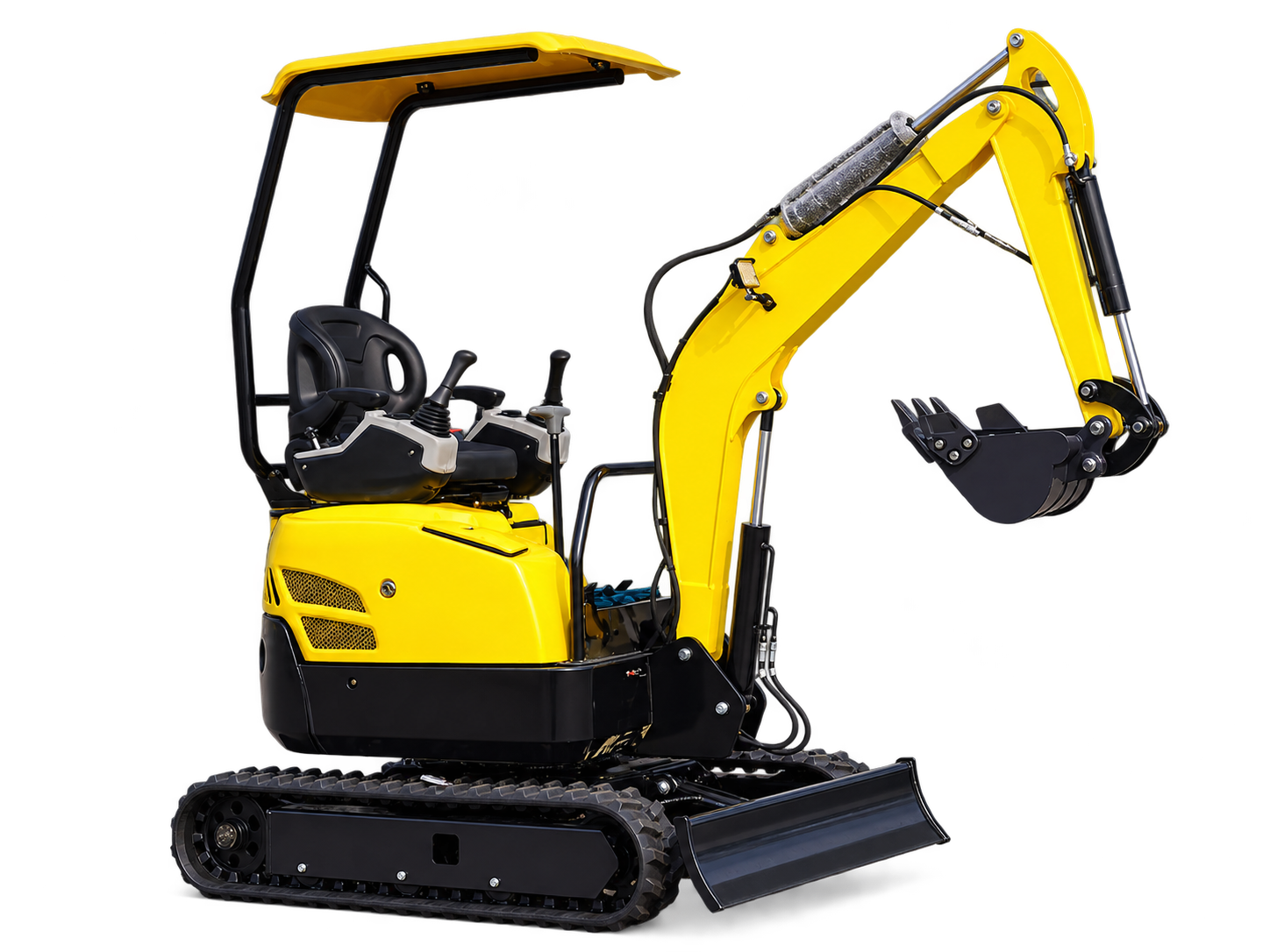

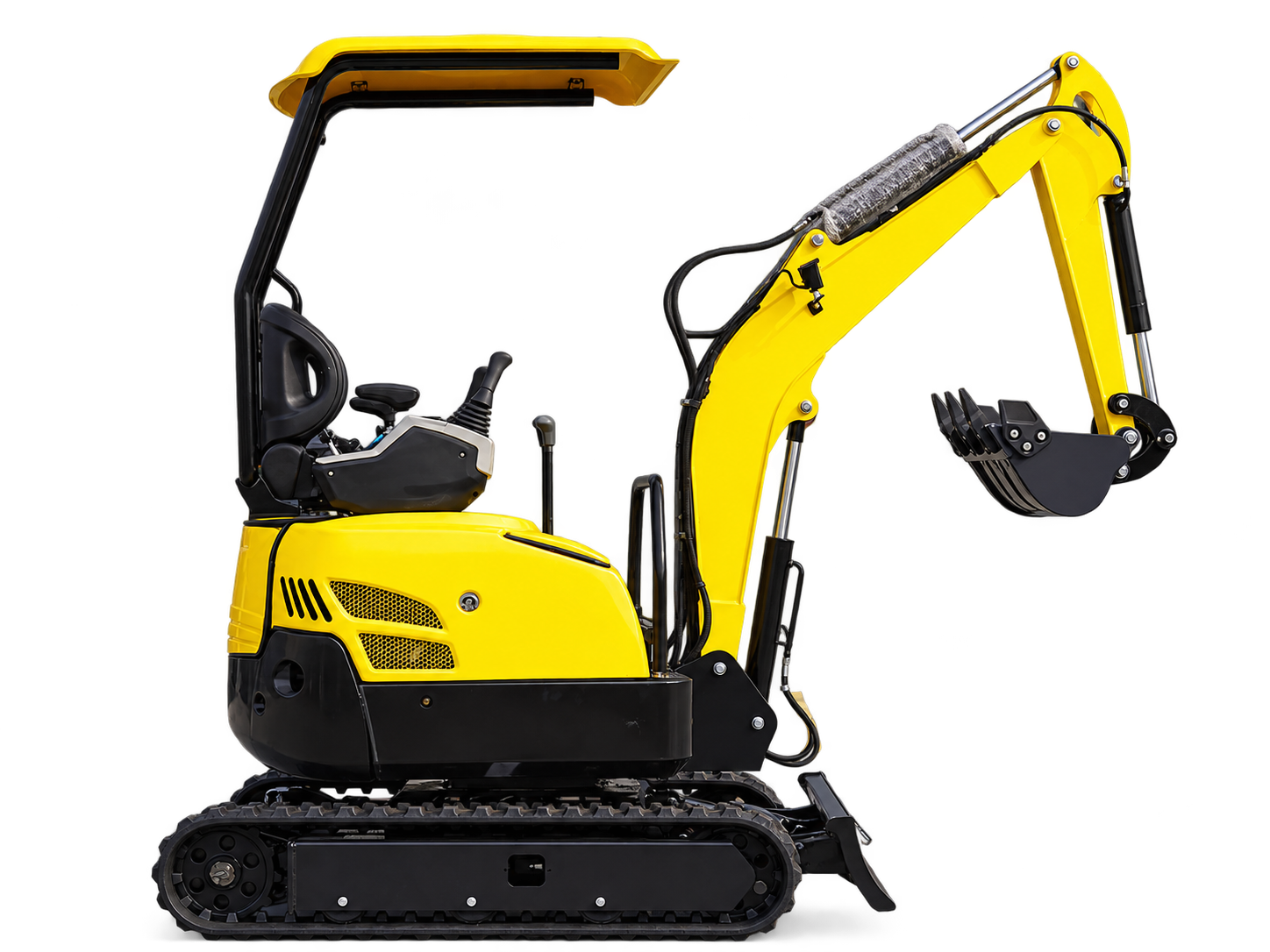

HT-20 2 Ton Mini Excavator
HUATENG HT20 is a 2 Ton mini excavator for trenching, landscaping and work around buildings. Choose the engine and working tools for your project, then request an itemized equipment price and shipping quotation for your destination.
2 Ton
Product Class
1100 mm
Chassis Width
2200 mm
Digging Depth
Kubota / Yanmar
Engine
CHOOSE YOUR EQUIPMENT
Configuration for Your Work
Choose the controls, engine package and working tools around your site requirements. Request an itemized equipment list so you can compare what is included in the machine price.

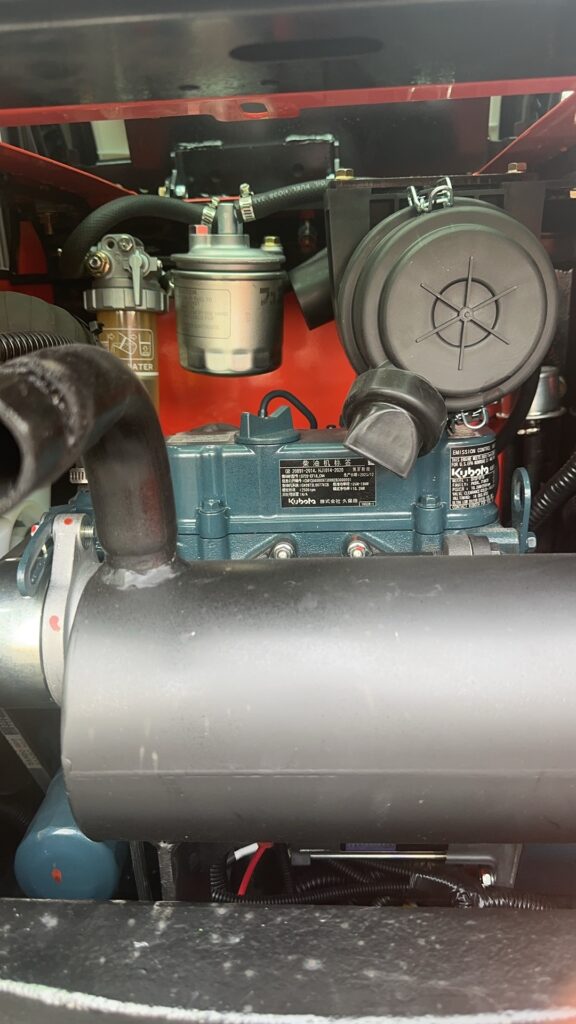

Engine Selection
Engine and Service Access
Choose the engine and operator-station version together for your market. Include the installed engine model, destination requirements and service information in the equipment offer.

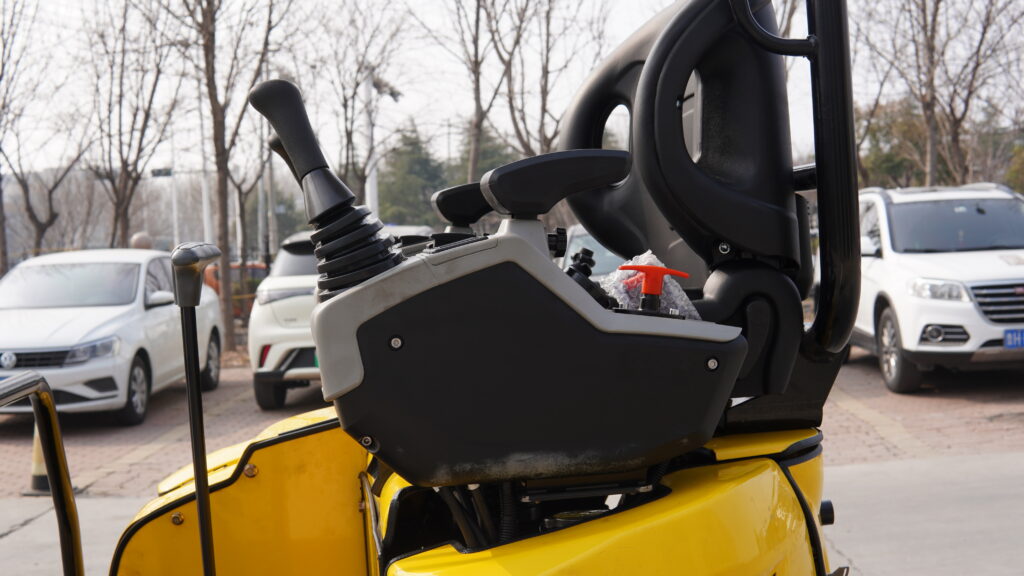

Operator Controls
Joystick Layout for Your Operators
Discuss the control arrangement your operators prefer for daily digging. Select the operator-station equipment and engine package together, with the included controls clearly listed.

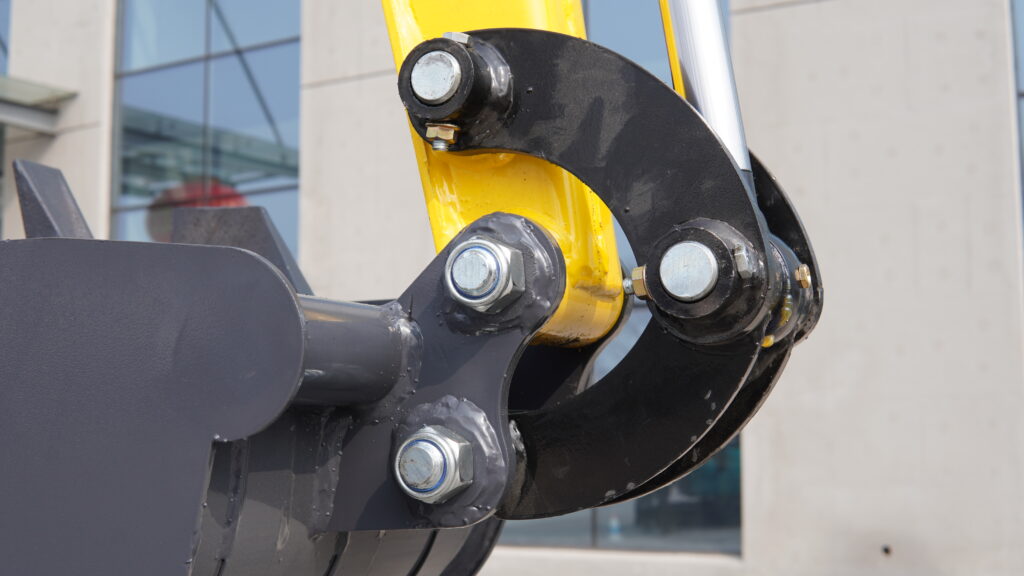

Tool Compatibility
Bucket Linkage and Tool Fit
Send the bucket width and attachments required for your jobs. Match the linkage, pins and hydraulic connections to the selected HT-20 machine before comparing the complete price.
Configuration Reference Video
Enclosed-cab configuration reference from the shared HT-18 / HT-20 source footage. Select the canopy or cab version for your order and have the operator station and comfort equipment listed in the quotation.
SPECIFICATIONS
Technical
Specifications
HT-20 configuration data.
Dimensions in metric units.
| Specification | Value |
|---|---|
| Product class | 2 Ton |
| Engine configuration | Kubota / Yanmar |
| Bucket capacity | 0.05 m³ |
| Rotation speed | 9 r/min |
| Overall dimensions (L × W × H) | 3250 × 1100 × 2300 mm |
| Track ground contact length | 1300 mm |
| Track shoe width | 180 mm |
| Maximum digging height | 3200 mm |
| Maximum dumping height | 2300 mm |
| Maximum digging depth | 2200 mm |
| Maximum digging radius | 3360 mm |
| Minimum turning radius | 1350 mm |
| Platform clearance to ground | 370 mm |
| Upperstructure slew range | 360 ° |
| Climbing gradient | 30 ° |
| Blade maximum cutting depth | 190 mm |
| Blade maximum lift height | 260 mm |
| Travel speed | 0–3 km/h |
| Bucket digging force | 16.5 kN |
| Hydraulic system pressure | 16 MPa |
| Bucket width | 430 mm |
| Power | Confirm in quotation |
Get Price & Shipping
Send your model, quantity, preferred equipment and destination. Request an itemized machine price, included tools and shipping scope.
This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.
Your contact details help us reply to your enquiry.
AFTER-SALES & FAQ
Plan Your After-Sales Support
Include manuals, warranty terms and parts identification in your purchase discussion.
Manuals & Parts Identification
Request first-start and maintenance guidance. Keep the model, serial number, engine details and component photos for parts enquiries.
Written Warranty Terms
Agree the warranty period, coverage, exclusions and parts arrangements for the supplied configuration before ordering.
Need Help Choosing?
Share the job, access limits and tools you need so the equipment can be checked for your enquiry.
Discuss Your RequirementsFrequently Asked Questions
What is included in the HT-20 price quotation?
Request the HT-20 machine configuration, included bucket, requested tools, paid options and packing as separate line items. Add quantity and the delivery destination so the equipment price and shipping scope are clear.
What does the 2 ton designation mean?
2 Ton identifies the product class. Operating weight is confirmed separately for the quoted machine, including its selected equipment and measurement basis. Packed shipping weight is a separate figure.
Which tools and configuration should I choose for the HT-20?
Provide the trench dimensions, access width and attachment list for the HT-20. Agree the operator station, bucket, linkage and hydraulic connections together with the engine and chassis in the machine specification.
Which engine and destination documents should I request?
The reference engine configuration is Kubota / Yanmar. Request the installed model and rated power, then agree the invoice, packing information, manuals and destination-specific machine or engine documents for the supplied version.
Does shipping cover the port or my address, and which dates apply?
Provide the named port or delivery address. Ask which freight, customs, taxes, port fees, onward delivery and unloading costs are included. Request separate production-ready, planned departure and estimated arrival dates; these are different milestones.
What warranty and parts support come with the HT-20?
Agree the warranty period, coverage, exclusions and parts-support terms in writing. Request first-start and maintenance guidance for the supplied configuration. Keep the model, serial number and component photos for parts identification.
