Model: HT-CPC100

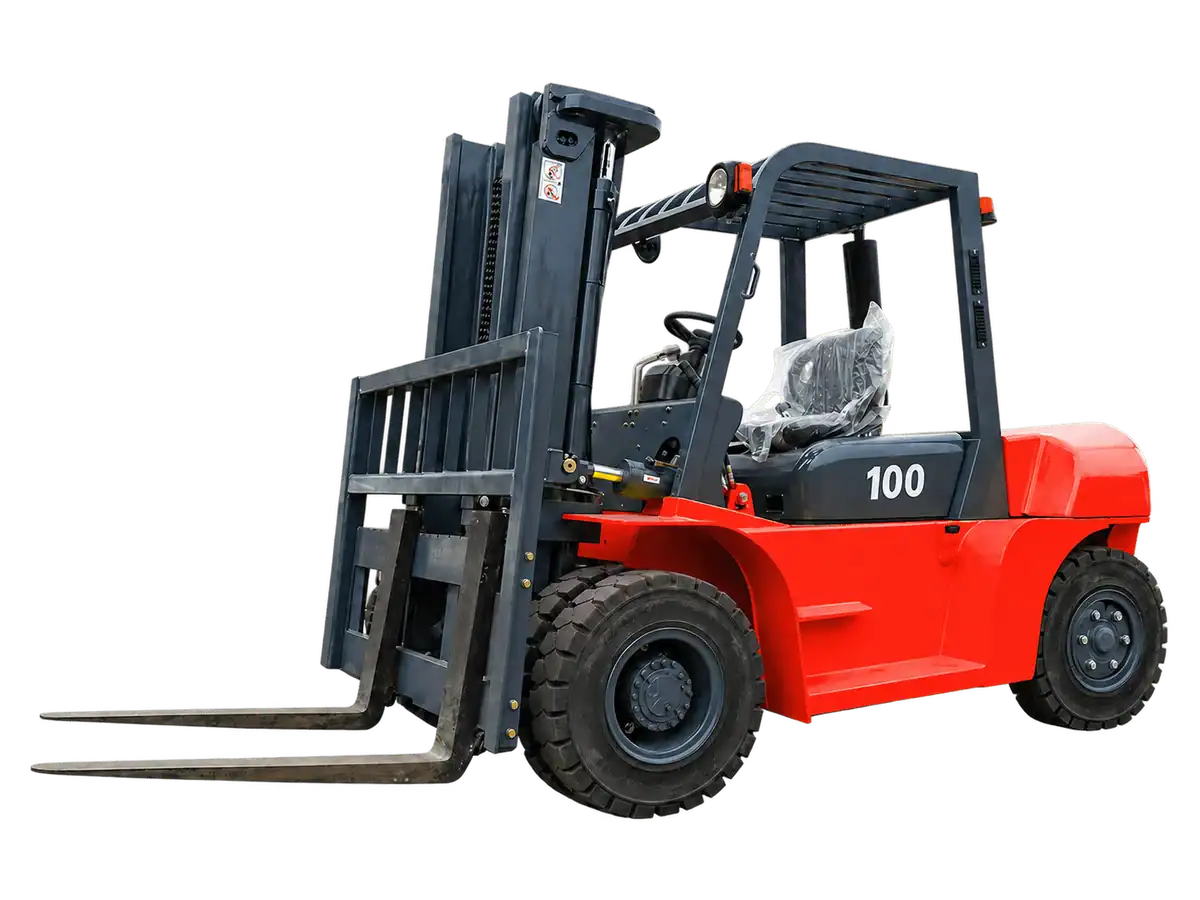

10 Ton Diesel Forklift
The HT-CPC100 is the 10,000 kg economy-version diesel forklift with a standard 3 m mast and Quanchai 4J1 engine. Check its 1,520 mm standard forks and access dimensions, then request a quotation for your loads and destination.
10,000 kg
Rated capacity
600 mm
Load centre
3,000 mm
Standard mast
Quanchai 4J1
Diesel engine
CONFIGURATION & PRICE
Configure Your 10 Ton Forklift & Get a Matched Quote
Compare the listed truck with the equipment your job requires. Your quotation should identify the mast, engine, tyres, attachments and quantity, with packing and shipping shown separately.
01 / STANDARD CONFIGURATION
Start with the Listed Truck
Start with the HT-CPC100 economy version: 10,000 kg rated capacity, a 3 m standard mast and Quanchai 4J1 engine. Confirm the mast type, tyres and transmission with your quotation before comparing it with another 10 ton version.
02 / MAST & LIFT HEIGHT
Match the Mast to Your Load
Tell us the lifting height required for your HT-CPC100, load dimensions and door or ceiling clearance. We will check the proposed mast configuration and remaining load capacity, rather than assume the rated load applies at every height.
03 / HANDLING OPTIONS
Specify Tyres, Forks & Attachments
Specify the fork length, pallet dimensions, tyre preference and attachments you need for the HT-CPC100. Side shift moves the forks laterally; a fork positioner adjusts fork spacing. Requested options and their capacity effect need a matched configuration quotation.
Machine Configuration Reference

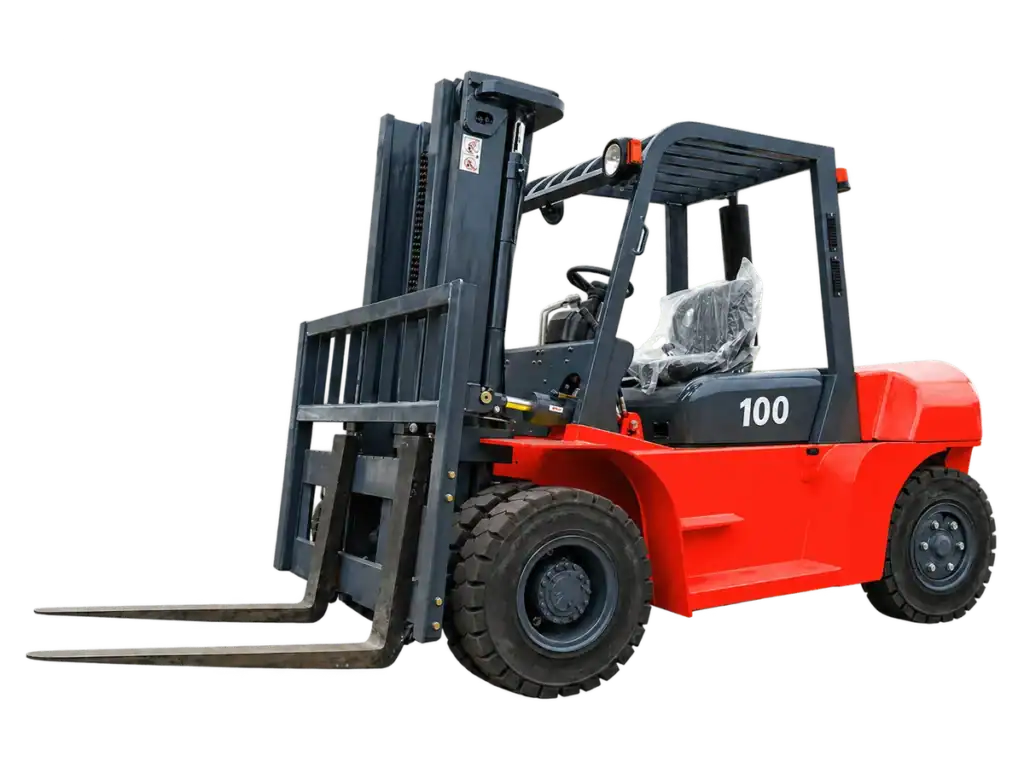

HT-CPC25 reference demonstration. The video cover is a 2.5 ton configuration reference photograph. Ask us for current photos or a video of your selected configuration.
SPECIFICATIONS
10 Ton Diesel
Forklift Specifications
HT-CPC100 specifications for the listed 10 ton configuration. Check the standard dimensions against your load and access space; mast, transmission and optional equipment details should match the final quotation. Parameters marked for confirmation remain subject to the selected configuration.
| Rated capacity | 10,000 kg |
|---|---|
| Load centre | 600 mm |
| Standard lift height | 3,000 mm |
| Standard mast | Confirm mast type |
| Standard engine | Quanchai 4J1 |
| Length to fork face | 4,200 mm |
| Overall width | 1,992 mm |
| Mast lowered height | 2,630 mm |
| Standard fork length | 1,520 mm |
| Front tyres | 8.25-15-14PR |
| Rear tyres | 8.25-15-14PR |
| Service weight | 10,460 kg |
| Standard tyres | Confirm tyre type |
| Transmission | Confirm with configuration |
| Power type | Diesel |
| Free lift | 175 mm |
| Fork dimensions (L×W×T) | 1520×175×80 mm |
| Turning radius | 3,910 mm |
| Ground clearance | 200 mm |
| Overhead guard height | 2,500 mm |
| Front overhang | 615 mm |
| Maximum travel speed | 26 km/h |
| Maximum lifting speed | 460 mm/s |
| Tractive force, laden | 51.4 kN |
| Maximum gradeability | 20 % |
| Maximum extended height including backrest | 4,380 mm |
| Wheelbase | 2,800 mm |
| Battery | (12/80)×2 V/Ah |
| Engine bore × stroke | 105×124 mm |
| Number of cylinders | 4 |
| Engine displacement | 4.3 L |
| Fuel tank capacity | 120 L |
| Gears (forward/reverse) | 2/2 |
| Starting system | Electric start |
Standard-configuration reference data. Final dimensions and residual capacity depend on the agreed mast and attachments. Data applies to the HT-CPC100 economy version; confirm the mast type, tyre type and transmission in the quotation.
Get In Touch
Tell us your requirements, quantity and delivery destination. Our team will help you choose the right configuration.
This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.
Your contact details help us reply to your enquiry.
AFTER-SALES & FAQ
Support After Delivery
Ask about troubleshooting, parts identification and support for your order.
Parts Identification
Send the HT-CPC100 machine number, engine model, component details and clear photos so the required parts can be identified.
Warranty for Your Order
Warranty period, coverage and parts-support arrangements are confirmed in the quotation and order.
Frequently Asked Questions
How much does a 10 ton diesel forklift cost?
The HT-CPC100 price depends on the selected truck, engine, mast, tyres and attachments, plus quantity and delivery terms. Send your requirements and destination to request a quotation that separates the machine configuration from packing and shipping charges.
Can the HT-CPC100 lift its rated load with a higher mast?
The HT-CPC100 has a 10,000 kg rated capacity at the listed 600 mm load centre. Higher masts, longer loads and attachments can change the capacity available. Send your load dimensions and required lift height so the matched capacity chart can be checked before ordering.
Will the HT-CPC100 fit my doors and operating area?
The listed HT-CPC100 width is 1,992 mm and standard fork length is 1,520 mm. Its standard mast lowered height is 2,630 mm. Compare these dimensions with your door openings and operating space; request the full clearance drawing before ordering.
Which engine is listed for the HT-CPC100?
The listed configuration uses a Quanchai 4J1 engine. Tell us your destination country and any emissions or registration requirements before ordering. Engine selection and the applicable documentation must be confirmed for the quoted machine; a model name alone does not establish local compliance.
Are side shift and a fork positioner included?
They should be requested and quoted separately for your HT-CPC100 configuration. Side shift moves the forks sideways, while a fork positioner changes their spacing. Share pallet sizes, load weight and attachment needs so fitment and remaining capacity can be checked before the order is agreed.
How are shipping, delivery and warranty confirmed?
Provide your quantity, destination and delivery terms for the HT-CPC100 quotation. Packing dimensions, container loading and shipping charges depend on the final configuration. The quotation and order should confirm delivery timing, warranty coverage and parts-support arrangements; these are not assumed from the product page.
