HT-CDD20

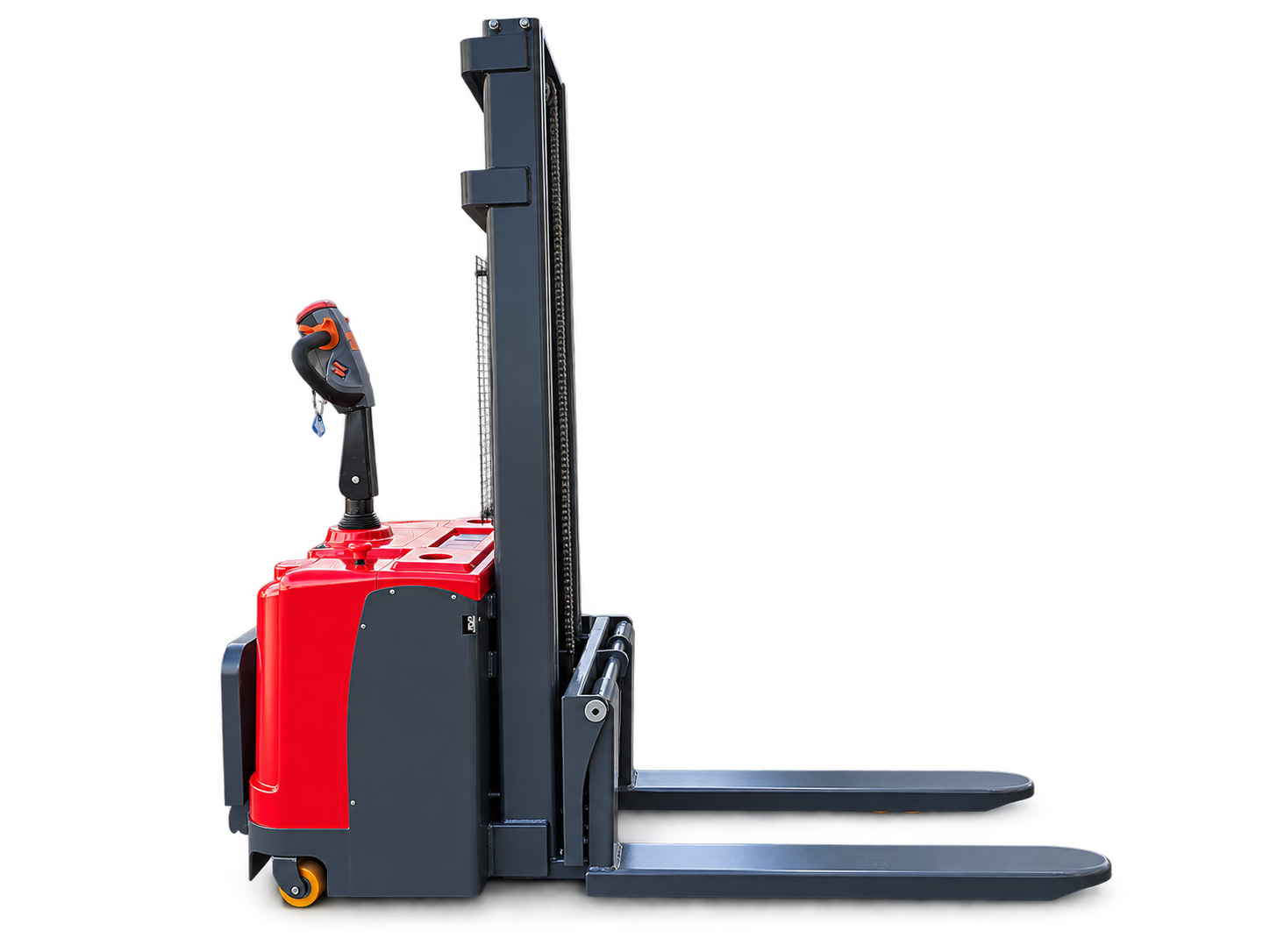

1.5–3 Ton Stand-On Electric Pallet Stacker
Move and stack pallets from a stand-on platform with powered travel and lifting. Compare 1.5, 2, 2.5 and 3 ton versions, then select the mast and handling package for your load and working space.
1,500 / 2,000 / 2,500 / 3,000 kg
Load Capacity
1,600–6,000 mm (by capacity)
Lift Height
24 V
Power
Stand-on
Operation
Share your load, required lift height, pallet dimensions and aisle width to confirm the right configuration.
CONFIGURATION & PRICE
Configure Your Pallet Stacker
Choose the required capacity first. Then check the mast, platform arrangement, pallet fit and battery package for your warehouse work.
01 / STAND-ON HANDLING
Check the Platform and Operator Space
Review the stand-on platform and tiller arrangement for repeated pallet movement. Confirm the selected platform layout, turning room and operating clearances against your travel routes.
02 / CAPACITY & MAST
Choose Capacity and Mast Together
Selected 1.5–2 ton versions offer mast options up to 6 m. The 2.5–3 ton versions have options up to 5.5 m. Confirm capacity at your working height using the selected load chart.
03 / PALLET & BATTERY
Match Pallets and Charging Requirements
Send pallet size and underside photos to check fork and support-leg fit. Add daily working hours and charging power so the battery package can be specified for the selected capacity version.
Pallet Stacker Reference Video
Review the platform, operator controls and pallet handling on the truck shown. The demonstrated mast and battery package may differ from your selected version.
SPECIFICATIONS
1.5–3 Ton Stand-On Electric Pallet Stacker Specifications
Use the capacity and mast table to compare versions. The reference table describes the listed 1.5–2 ton setup; confirm separate dimensions and power data for 2.5–3 ton versions.
Capacity and Lift Options
| Capacity version | Listed mast lift options |
|---|---|
| 1,500 / 2,000 kg | 1,600–3,500 mm; 4,000–6,000 mm |
| 2,500 kg | 2,000–3,500 mm; 4,000–5,500 mm |
| 3,000 kg | 2,000–3,000 mm; 4,000–5,500 mm |
This is a configuration overview, not a load chart. Capacity at height must be checked for the selected mast and load centre.
1.5–2 Ton Reference Specifications
| Specification | Reference value |
|---|---|
| Model series | HT-CDD20 |
| Operator type | Stand-on, folding platform |
| Power | Battery-electric, 24 V |
| Load centre | 550 mm |
| Fork dimensions, length × width × thickness | 1,100 × 170 × 60 mm |
| Lowered fork height | 90 mm |
| Overall length, platform extended / folded | 2,550 / 2,050 mm |
| Overall width | 880 mm |
| Turning radius | 1,530 mm |
| Drive / lift motor | 1.5 / 2.2 kW |
| Brake type | Electromagnetic |
| Battery package | Lead-acid or lithium options; capacity specified in the quotation |
These reference dimensions and motor ratings apply to the 1.5–2 t setup and must not be used as specifications for the 2.5 t or 3 t versions. Request the dimensional drawing and load chart for your selected configuration.
Get In Touch
Tell us your load, required lift height, pallet dimensions, aisle clearances and daily travel or workload, plus quantity and delivery destination. Include charging power and any battery, reach, tilt or handling requirements for your selected configuration.
This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.
Your contact details are used to reply to your enquiry.
AFTER-SALES & FAQ
Support for Your Selected Stacker
Keep the model and serial number available for parts identification and order-specific support.
Parts Identification
Send the truck model, serial number and clear photos of the component or fault code so our team can check the relevant parts information.
Written Warranty Terms
Your quotation and order will confirm the warranty period, coverage, exclusions and parts-support arrangements for the selected configuration.
Need Help with Your Configuration?
Ask about pallet fit, your quotation or parts identification.
Contact UsFrequently Asked Questions
Which capacities are available?
HT-CDD20 covers 1,500, 2,000, 2,500 and 3,000 kg versions. Choose the truck and mast together using your pallet weight, load centre and required stacking height.
Can the 3 ton version use a 6 m mast?
The listed 2.5–3 ton versions have mast options up to 5.5 m. The 6 m option applies to selected 1.5–2 ton versions. Ask for the confirmed load chart and mast configuration for your requirement.
How much does the stand-on stacker cost?
Capacity, mast, battery, fork options and quantity affect the price. Send the working requirements and destination for a quote that identifies the selected equipment, packing and freight scope.
Is the stand-on model suitable for my warehouse?
Check travel routes, turning room, aisle width, platform clearance and pallet entry. Share your layout and pallet dimensions so the selected version can be checked against the available space.
Are the battery and dimensions the same on every version?
No. The reference table describes the listed 1.5–2 ton setup. Confirm the battery, motors, dimensions and charger separately for the selected 2.5 or 3 ton configuration.
Can you quote shipping and support terms?
Include quantity, destination country and port if known. Request packing details, freight scope, estimated lead time and written warranty and parts-support terms for your order.
